Scilogex MS-H-Pro-T Circular-top LCD Digital Hotplate Stirrer

Regular price $602.00
Don't see the option you are looking for? Call 919-775-5596

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

Have questions or need Faster Shipping? Call 919-775-5596

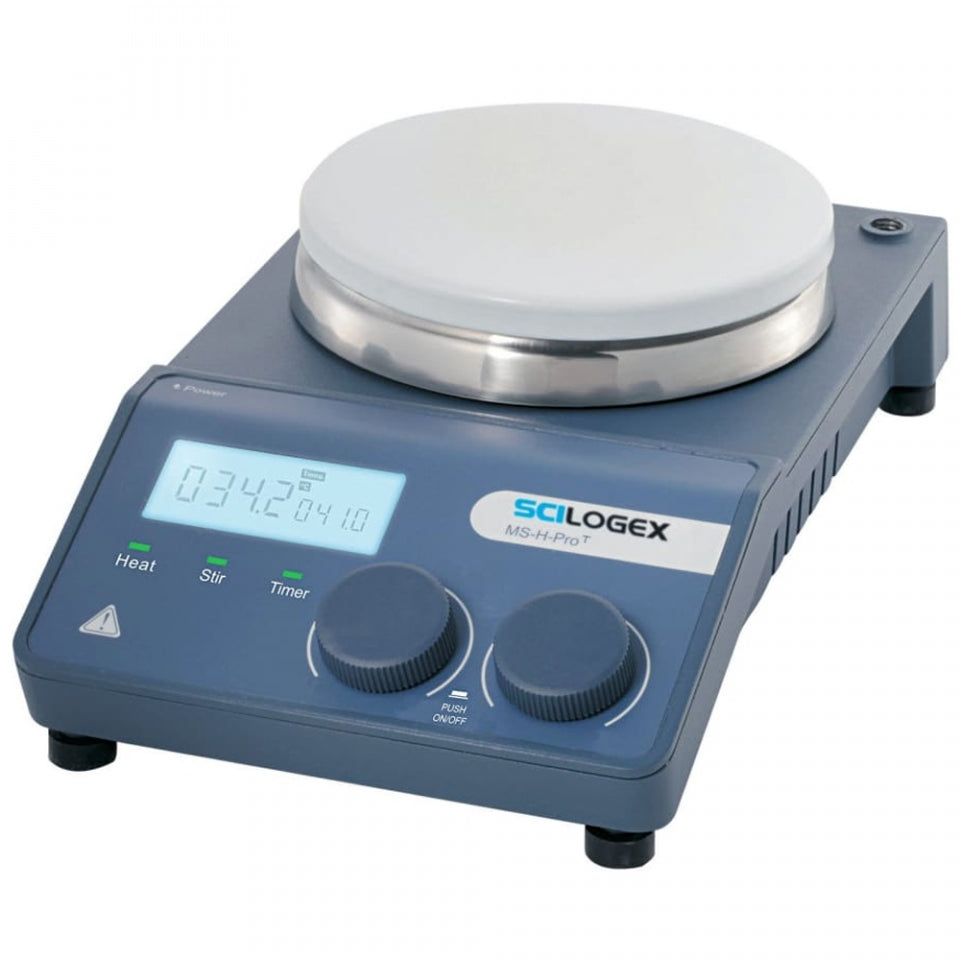

SCILOGEX MS-H-Pro-T Circular-top LCD Digital Hotplate Stirrer with Ceramic Plate Model # 861492019999

The MS-H-Pro-T is one of the most technically advanced hotplate-stirrers in the marketplace and features an independent back-lit LCD display for both heat, stirring and timer functions and PID technology. The MS-H-Pro-T controls temperature at +/- 1ºC. Simply set the timer from 1min to 99hr-59min and the hotplate will heat at the target temperature for the set time period and automatically turn off. If the stirring function is activated, the unit will continue to stir until switched off. The MS-H-Pro-T also has a DC brushless (spark free) motor for extremely long life and excellent performance.

SCILOGEX 340°C magnetic hotplate stirrers include all leading safety standards and features for superior ease of use and are cost-effective. They are widely used in chemical synthesis, physical and chemical analysis, biopharmaceuticals, etc.

  • High-resolution LCD display shows actual temperatures and speed
  • Heat only, stir only or heat and stir together functions
  • Digital speed control with max. speed up to 1500rpm
  • External temperature control is possible by connecting the temperature sensor(PT 1000) with accuracy at ±0.2°C
  • Max. stirring quantity of H2O at 20L
  • Remote function provides PC control and data transmission
  • Safety circuits provide overheating protection
  • Wide range timer function from 1min to 99h59min(MS-H-ProT only)
  • The “HOT” warning will flash if the plate temperature is above 50°C even when the hotplate is turned off
  • Automatic spin bar retrieval
  • Low temperature stability
  • Digital temperature control with max. temperature at 340°C
  • Stainless steel work plate with ceramic coating provides good chemical-resistant performance
  • Accessory reaction blocks for flasks and vessels available
  • Electronic speed control for constant speed even during changes in load
  • Brushless DC motor is maintenance free and explosion-proof
  • High magnetic adhesion
  • Free software for control data logging by PC
  • Comes with a free 50mm L x 5mm Dia. Magnetic Stir bar
  • cTUVus approved for UL and CSA
  • 2 Year Warranty
Work plate dimension φ135mm (5 inch)
Work plate material stainless steel cover with ceramic
Motor type Brushless DC motor
Motor input power 18W
Motor output power 10W
Power 550W
Heating output 500W
Voltage 100-120/200-240V 50/60Hz
Stirring positions 1
Max. stirring quantity [H2O] 20L
Max. magnetic bar [length] 80mm
Speed range 100-1500rpm, resolution±1rpm
Speed display LCD
Temperature display LCD
Heating temperature range Room Temp.-340°C, increment 1°C
Temperature control accuracy ±1°C(<100°C)±1%(>100°C)
Over temperature protection 360°C
Temperature display accuracy ±0.1°C
External temperature sensor PT1000 (accuracy ±0.2)
"Hot" warning 50°C
Timer function 1min to 99h 59min
Data connector RS232
Protection Class IP42
Dimension [WxDxH] 160×280×85mm
Weight 2.8kg
Permissible ambient temperature and humidity 5-40°C, 80%RH
