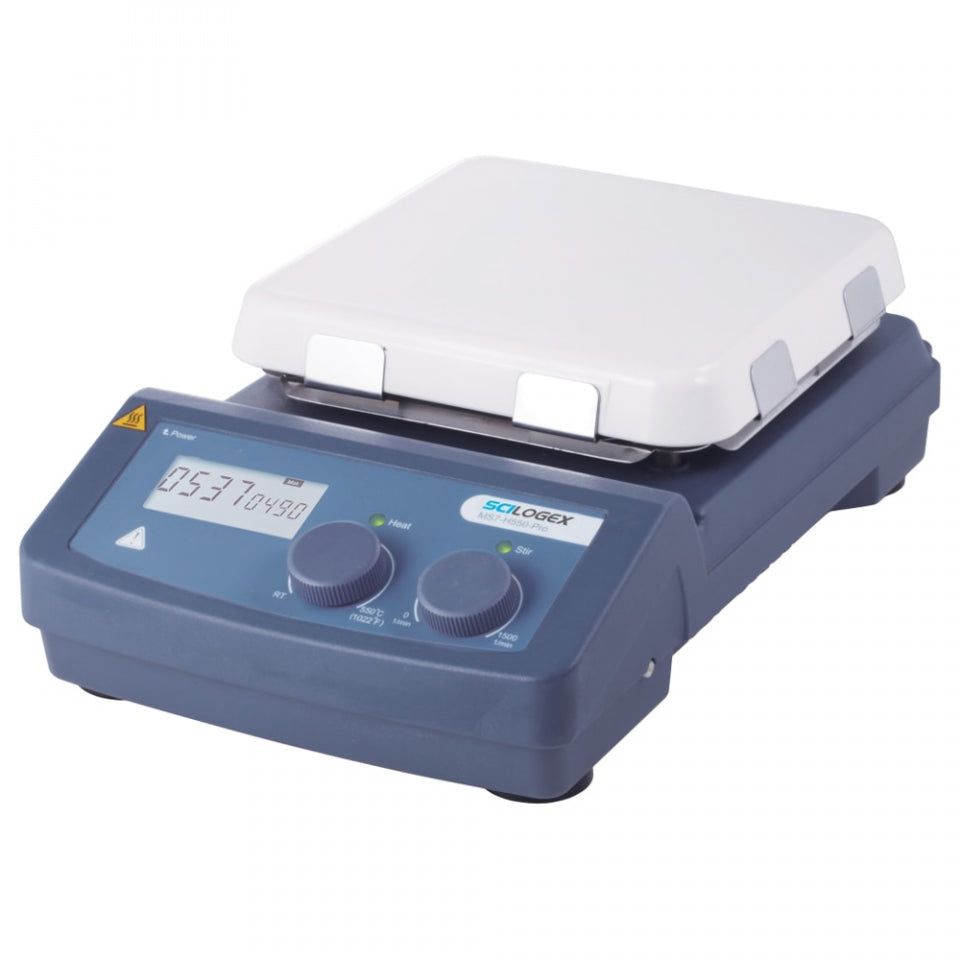

SCILOGEX MS7-H550-S 7x7 LED Digital 7" Square Magnetic Hotplate Stirrer with Ceramic Glass Plate Model # 813221009999
The SCILOGEX MS7-H550-S provides powerful heating and stirring with LED digital display of the set temperature and real-time temperature display. LED heating and analog stirring are simply controlled turning the respective control knobs.
- LED display for precise monitoring of temperature
- A wide speed range of 0 to 1500rpm
- Heat only, stir only or heat and stir together functions
- Max. Heating plate temperature 550°C
- Low temperature stability
- Electronic speed control for constant speed even during changes in load
- External temperature control is possible by connecting the temperature sensor(PT1000) with accuracy at ±0.2°C
- High magnetic adhesion
- “HOT” warning will flash if the work plate temperature is above 50°C even when the hotplate is turned off
- cTUVus approved for UL and CSA
- 2 YEAR WARRANTY
Specifications:
| Work plate dimension [W x D] | 184x184mm (7 inch) |
| Work plate material | Glass ceramic |
| Motor type | Shaded pole motor |
| Motor input power | 15W |
| Motor output power | 1.5W |
| Power | 1030W |
| Heating output | 1000W |
| Voltage | 100-120/200-240V 50/60Hz |
| Stirring positions | 1 |
| Max. stirring quantity [H2O] | 10L |
| Max. magnetic bar [length] | 80mm |
| Speed range | 0-1500rpm |
| Speed display | Scale |
| Temperature display | LED |
| Heating temperature range | Room Temp.-550°C, increment 5°C |
| Temperature control accuracy | ±10°C |
| Overheating protection | 580°C |
| Overheating protection | ±0.1°C |
| External temperature sensor | PT1000 (accuracy ±0.2) |
| "Hot" warning | 50°C |
| Protection class | IP21 |
| Dimension [WxDxH] | 215x360x112mm |
| Weight | 4.5kg |
| Permissible ambient temperature and humidity | 5-40°C, 80%RH |
This product ships directly from Scilogex, ensuring fast delivery, proper handling, and factory quality. When you purchase Scilogex, you’re backed by a trusted name in laboratory equipment—known for precision, reliability, and dependable support. Shop with confidence knowing your order is fulfilled directly by the manufacturer.
