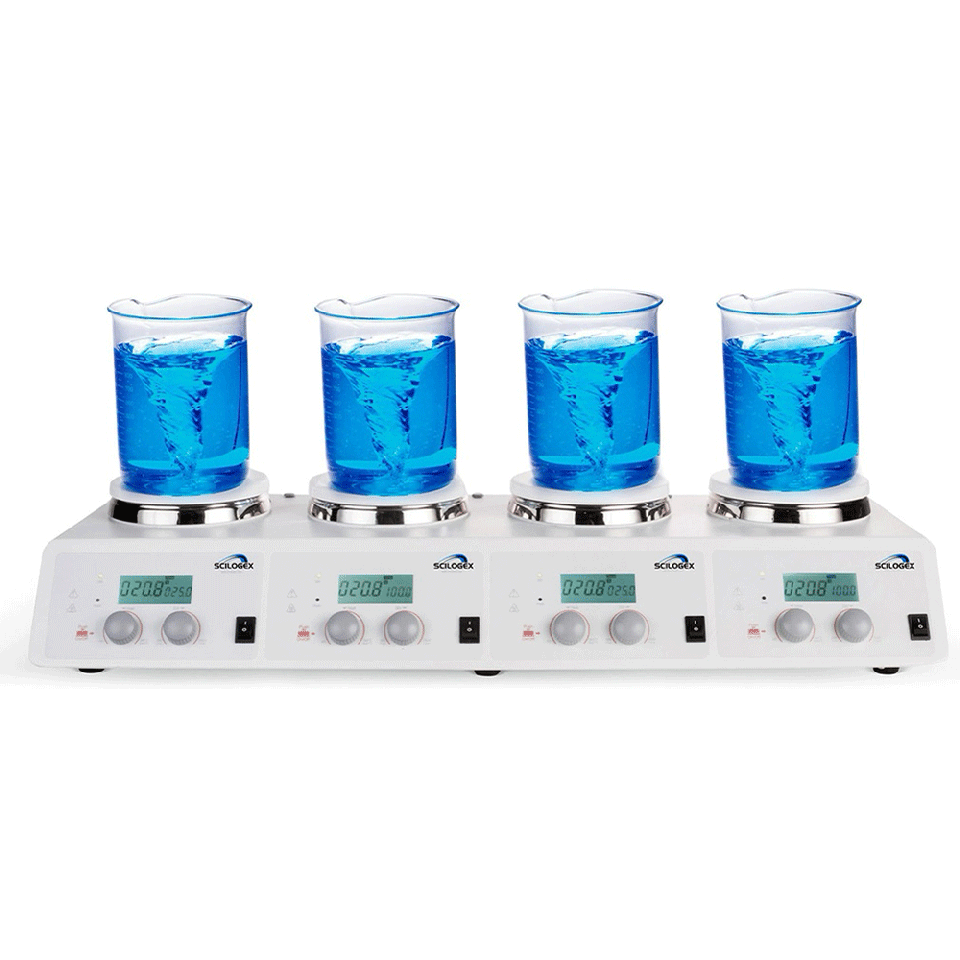

Scilogex SCI340-4 Digital Hotplate-Stirrer 4-Channel, Ceramic Plates, 340ºC / 1500rpm Max.
Regular price
$1,733.00
Couldn't load pickup availability
Don't see the option you are looking for? Call 919-775-5596
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
Have questions or need Faster Shipping? Call 919-775-5596
SCILOGEX SCI340-4 Digital Hotplate-Stirrer 4-Channel, Ceramic Plates, 340ºC / 1500rpm Max.Model # 80302711109999
Product Features
- Independent heating and stirring control
- LCD displays show set temperatures & speeds and real-time temperatures & speeds
- PID controller ensures a precise and accurate heating process
- Max. temperature up to 340℃
- Brushless DC motor for powerful speed control and maintenance free
- External PT1000 temperature sensor, sensor stand and accessories sold separately
- Overheating protection temperature at 420℃
- Stainless steel work plate with ceramic coating provides good chemical-resistance
- A wide variety of accessories are available
- 2-year warranty
Product Specifications
| Work plate dimension | Ø135mm (5 inch) |
|---|---|
| Plate material | Stainless steel with ceramic coating |
| Motor type | Brushless DC motor |
| Stirring positions | 4 |
| Max. stirring quantity of single position (H₂O) | 10L |
| Max. magnetic bar | 40mm |
| Speed range | 200-1500rpm |
| Speed display | LCD |
| Temperature display | LCD |
| Control accuracy of sensor | ±20rpm |
| Temperature range | 25-340°C |
| Over temperature protection | 420°C |
| Temperature display accuracy | ±0.1°C |
| External temp. sensor PT1000 Accuracy | PT1000( accuracy ± 0.2°C) |
| IP Protection class | IP21 |
| Motor rating input | 1.8Wx4 |
| Power | 515Wx4 |
| Heating Power | 500Wx4 |
| Voltage | 100-120V,60Hz; 200-240V,50 Hz |
| Dimensions[WxDxH] | 698x270x128mm |
| Weight | 9.5kg |
| Permissible ambient temperature | 5-40°C |
| Permissible relative humidity | 80%RH |
