Scilogex SCIP5-Mini LED Recirculating Chiller -20c to ambient
Regular price
$2,628.00
Couldn't load pickup availability
Don't see the option you are looking for? Call 919-775-5596
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
Have questions or need Faster Shipping? Call 919-775-5596
SCILOGEX SCIP5-Mini LED Recirculating Chiller, -20°C to ambient, 110V, 60Hz.
Features & Advantages:
- Temperature range: -20C to room temperature
- Employs PID temperature control with built-in PT1000 temperature sensor that provides high accuracy of temperature control
- A crystal-clear LED display that switches between display of set temperature and that of actual temperature
- The entire unit is capable of protection against short circuit, over-current, overload and delayed start

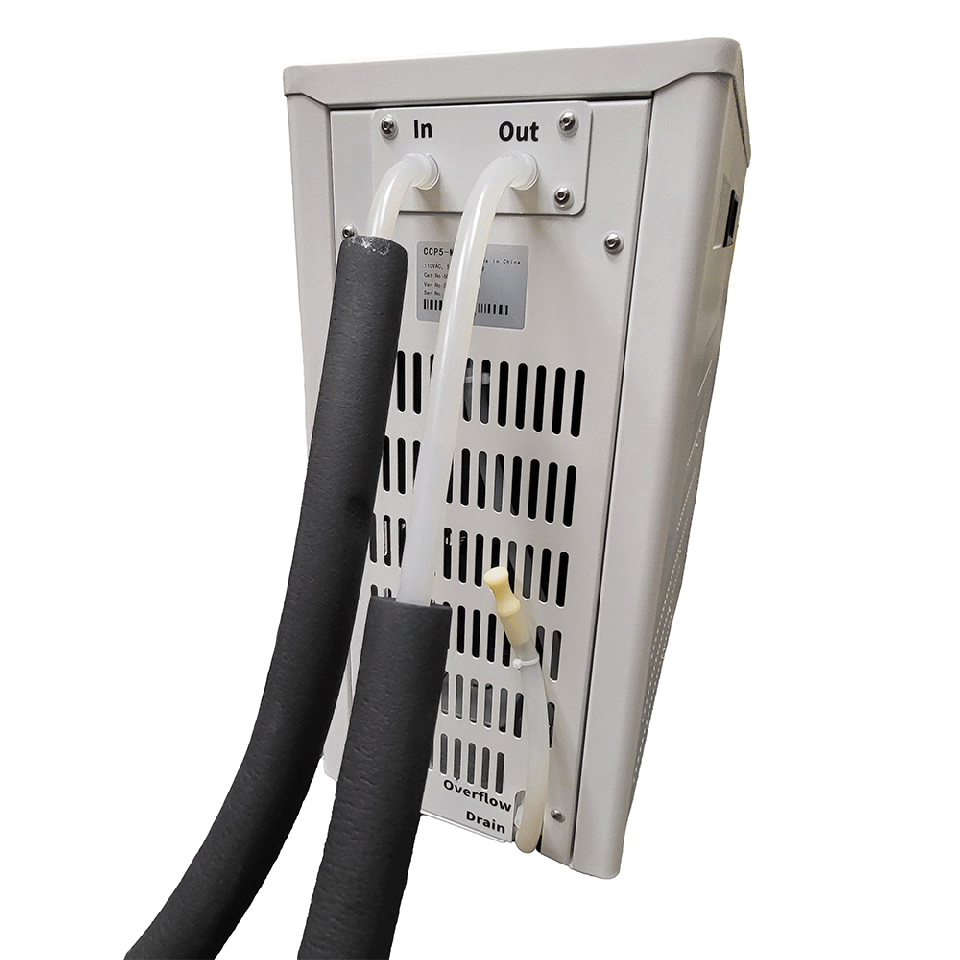

- Integrated design of drain outlet and water outlet that allows easy drainage
- The compressor employs state-of-the-art R290 environment-friendly refrigerant
- The liquid pathway is made of stainless steel or high-quality corrosion-resistant material
- User-friendly operating panel for easy operation
- A large-volume open reservoir allows easy filling and supports cold trap experiments
SCILOGEX LED Recirculating Chiller Specifications:
Range of temperature control | -20°C to Room Temperature |
Temperature adjustment accuracy | 0.1°C |
Temperature control accuracy | ±0.3°C (0°C a 20°C typical value) |
Reservoir capacity | 4.5L |
Range of temperature adjustment | -30°C։30°C |
Temperature display | LED |
Type of temperature sensor | PT1000 |
Compressor refrigerant | R290 |
Circulating pump throughput | 22L/min |
Circulating pump head | 6m |
Pump pressure | 0.3bar |
Pump suction | 0.2bar |
Power | 700W |
Maximum overall dimensions | 220*420*495 (mm) |
Weight | 30Kg |
Power supply | 110V/60Hz |
Operating environment | 10°C։4 0°C RH ≤ 80% |
