Lumencor’s four-strong family of SOLA Light Engines are the market leaders in modern solid-state illumination for microscopy and other life science applications. Why tolerate the limitations of an archaic mercury or metal halide lamp on your microscope when such a reliable and technically superior replacement is readily available.

The four SOLA Light Engine models are primarily distinguished by spectral output:

• SOLA Light Engine provides white light output for excitation of DAPI, GFP/FITC, YFP, Cy3, mCherry, Cy5 and spectrally similar fluorophores.
• SOLA FISH Light Engine, output in the 475–600 nm region is red-shifted to provide optimal excitation for SpectrumGreen™, SpectrumRed™ and other fluorophores commonly used for fluorescence in situ* hybridization (FISH) analysis in cytogenetic testing laboratories.
• SOLA V–N and U–N Light Engines offer the broadest spectral coverage, including near infrared (nIR) output for excitation of fluorophores such as Cy7 and ICG, and for other applications that benefit from the enhanced tissue penetration of nIR light.

All SOLA Light Engine models provide both manual and electronic control of light output on/off status and electronically controlled linear output intensity adjustment. The user interfaces for these illuminator controls are an optional control pod accessory or one of several supporting software packages on a USB-connected computer. SOLA Light Engines contain no parts requiring replacement or alignment, need no routine maintenance and have a typical working lifetime of ten years, far exceeding that of any microscope lamp.

• Sources 4, 5, or 6 solid state illumination sources operating simultaneously to produce white light
• Output Power 3.5 to 4.5 Watts (depending on model) white light output from 3 mm diameter liquid light guide (LLG)
• Spectral Range 360–660 nm (SOLA, SOLA FISH); 380–760 nm SOLA V-N; 360–760 nm SOLA U-N
• Light Delivery 3 mm diameter liquid light guide (LLG) included. Collimating adapter for microscope sold separately
• Installation 10–15 minutes. Fully assembled and pre-aligned
• Routine Maintenance None. No consumables required
• Control Interface USB-B input port for remote control by light engine control pod or PC. BNC input port for TTL-activated electronic shutter. Manual light output on/off button, optional foot pedal accessory
• Power Requirements 120 W, 24 VDC, 5 A. Power supply and cord included with all orders.
• Dimensions 125 mm x 263 mm x 163 mm (W x L x H)
• Weight 4.3 kg (9.5 lb)
• Warranty 24 months

Documentation and Software

• SOLA Light Engine GUI Installer(opens in new window)
• SOLA Command Reference(opens in new window)
• SOLA Light Engine Data Sheet(opens in new window)
• SOLA Light Engine Manual(opens in new window)
• SOLA Filter Set Recommendations(opens in new window)

Featured Applications

• Agriculture and Food Inspection(opens in new window)

• Cytogenetics(opens in new window)

• Diagnostic Testing(opens in new window)

• Drug Discovery/HCS(opens in new window)

• Education(opens in new window)

• Histopathology(opens in new window)

• Microscopy(opens in new window)

• Optogenetics(opens in new window)

• Photocuring and Photolithography(opens in new window)

• Photovoltaics and Solar Energy(opens in new window)

• Quality Control and Testing(opens in new window)

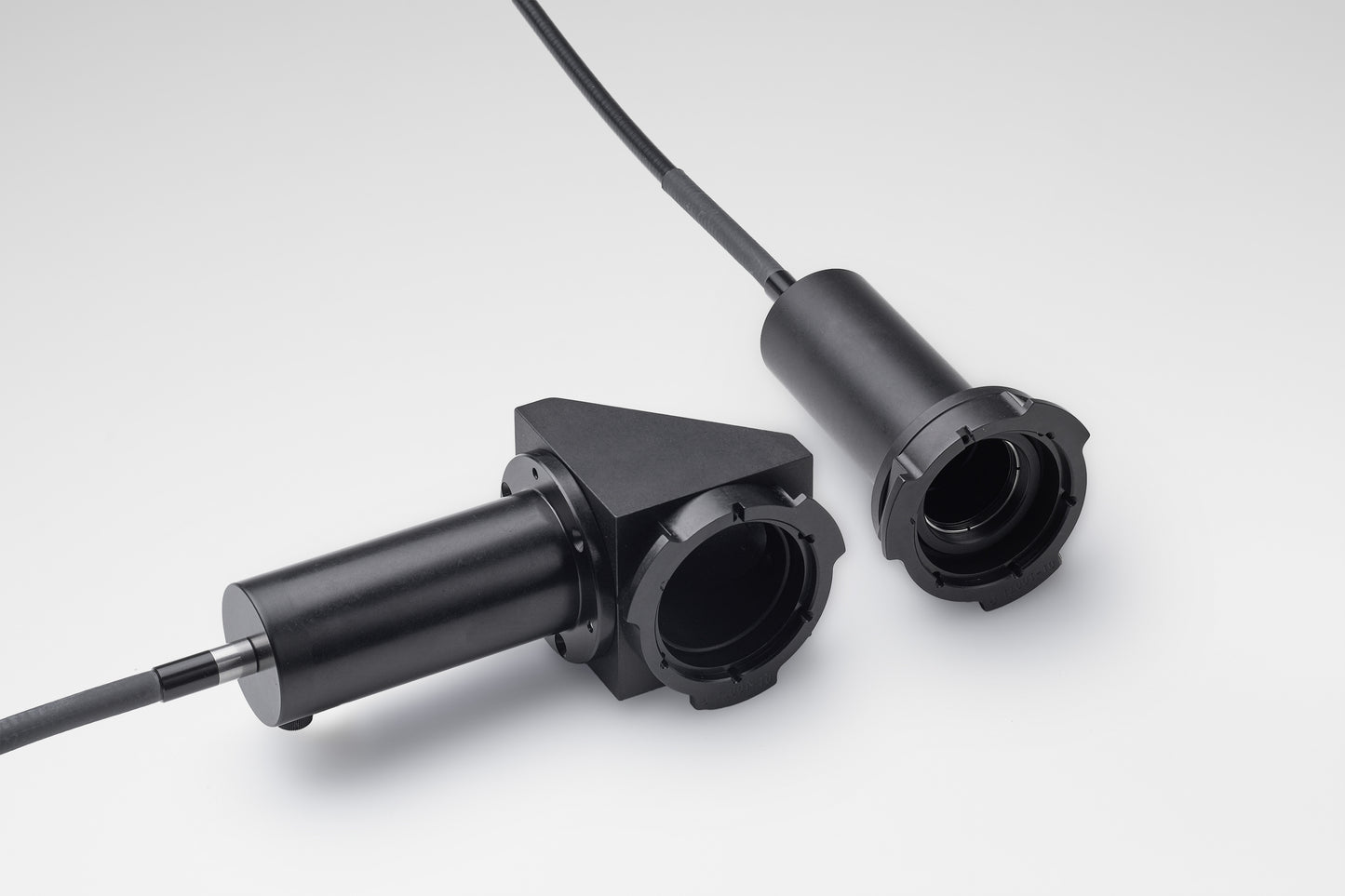

If upgrading from a Mercury Lamphouse this item will require a Collimator \ Adapter (Sold Separately)

Product manufactured in the USA
