Product Overview
The UNITRON ergonomic trinocular viewing head is designed to improve viewing posture on compatible Z6, Z8 and Z10 stereo microscopes. Its adjustable eyetubes and camera port support extended inspection sessions and digital documentation.
Key Features
- Eyepiece height adjustment: Up to 160 mm
- Head type: Tilting trinocular
- UNITRON compatibility: Z6, Z8 and Z10
- Camera split options: 50:50 (111-11-05) or 0:100 (111-11-06)
What Is This Product Used For?
Stereo microscope ergonomic upgrades, laboratory observation and digital imaging.
Technical Specifications
| Eyepiece height adjustment | Up to 160 mm |
|---|---|
| Head type | Tilting trinocular |
| UNITRON compatibility | Z6, Z8 and Z10 |
| Camera split options | 50:50 (111-11-05) or 0:100 (111-11-06) |
| Camera adapter | C-mount adapter required, not included |
Compatibility & Ordering
Confirm model compatibility, selected variant and required accessories before ordering. The original description also identifies Nikon SMZ800N, SMZ1270 and SMZ1270i models; verify mechanical and optical compatibility before purchasing.
Manufacturer Resources
UNITRON manufacturer resources
Additional Product Details & Resources

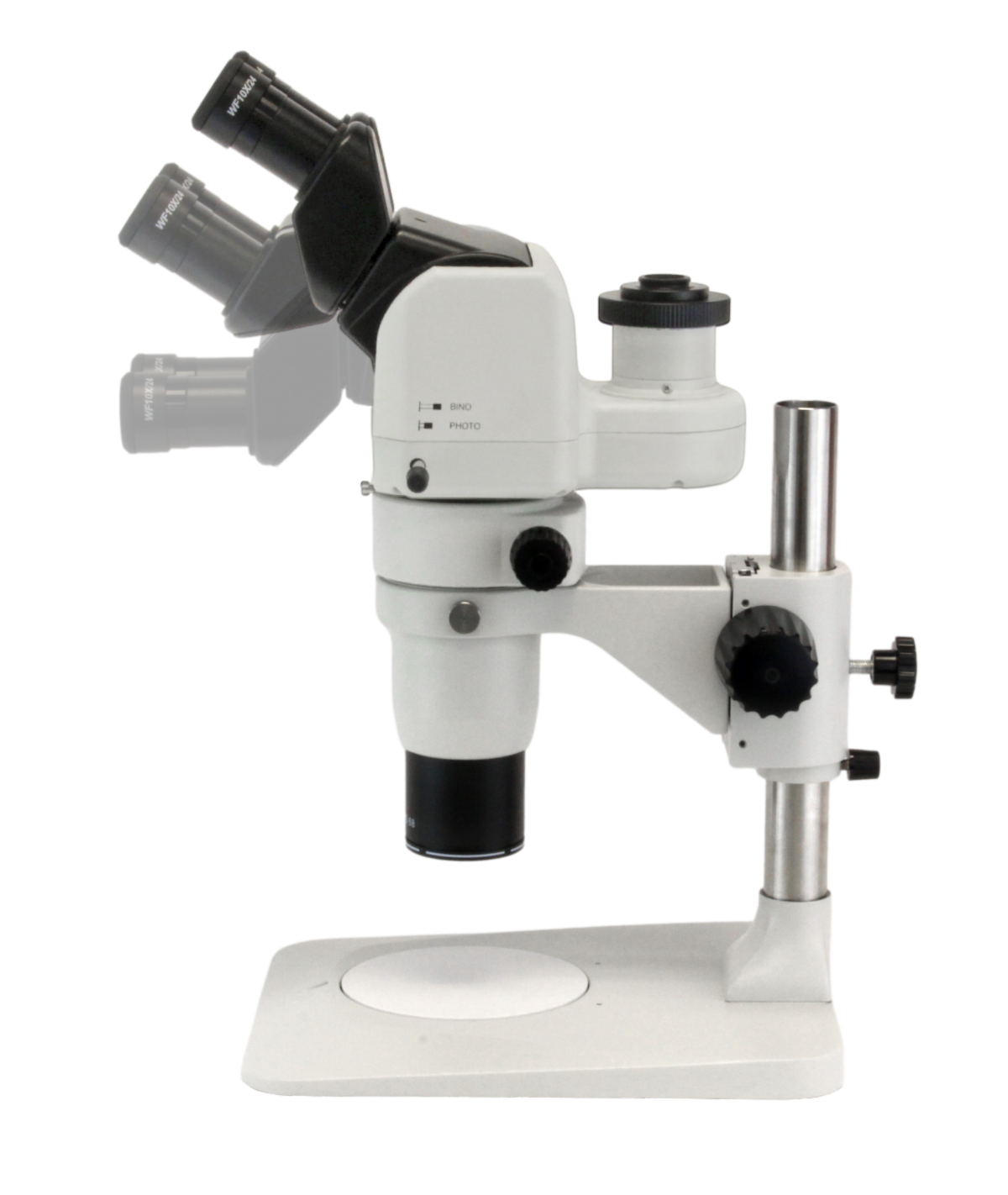

The new Unitron Ergonomic Tilting Head for stereo microscopes offers exceptional flexibility with a market-leading 160mm of binocular eyetube height adjustment. It allows for easy attachment of a digital camera (C-mount adapters required) and mounts seamlessly onto UNITRON Z6, Z8, and Z10 mag changers. Additionally, it's compatible with Nikon SMZ800N, SMZ1270, and SMZ1270i models. Users can select between a 50:50 (CAT# 111-11-05) or 0:100 (CAT# 111-11-06) light split to the camera port. The head’s tilting mechanism adjusts eyetubes by 100mm and can further rotate to raise or lower eyepieces by 60mm.
• Provides a market-leading 160mm of binocular
eyetube height adjustment
• Allows attachment of digital camera to the viewing
head (requires C-mount adapters, not included)
• Mounts easily onto the UNITRON Z6, Z8 and Z10
mag changers
• Is compatible with the Nikon SMZ800N, SMZ1270
and SMZ1270i models
• Choose from 50:50 (CAT# 111-11-05) or 0:100
(CAT# 111-11-06) light split to camera port
The head tilts to raise/lower the eyetubes by 100mm. Rotate the eyetubes to raise/lower the position of the eyepieces by 60mm. Combined, the new ergo trinoc can adjust its eyepiece height by a full 160mm
