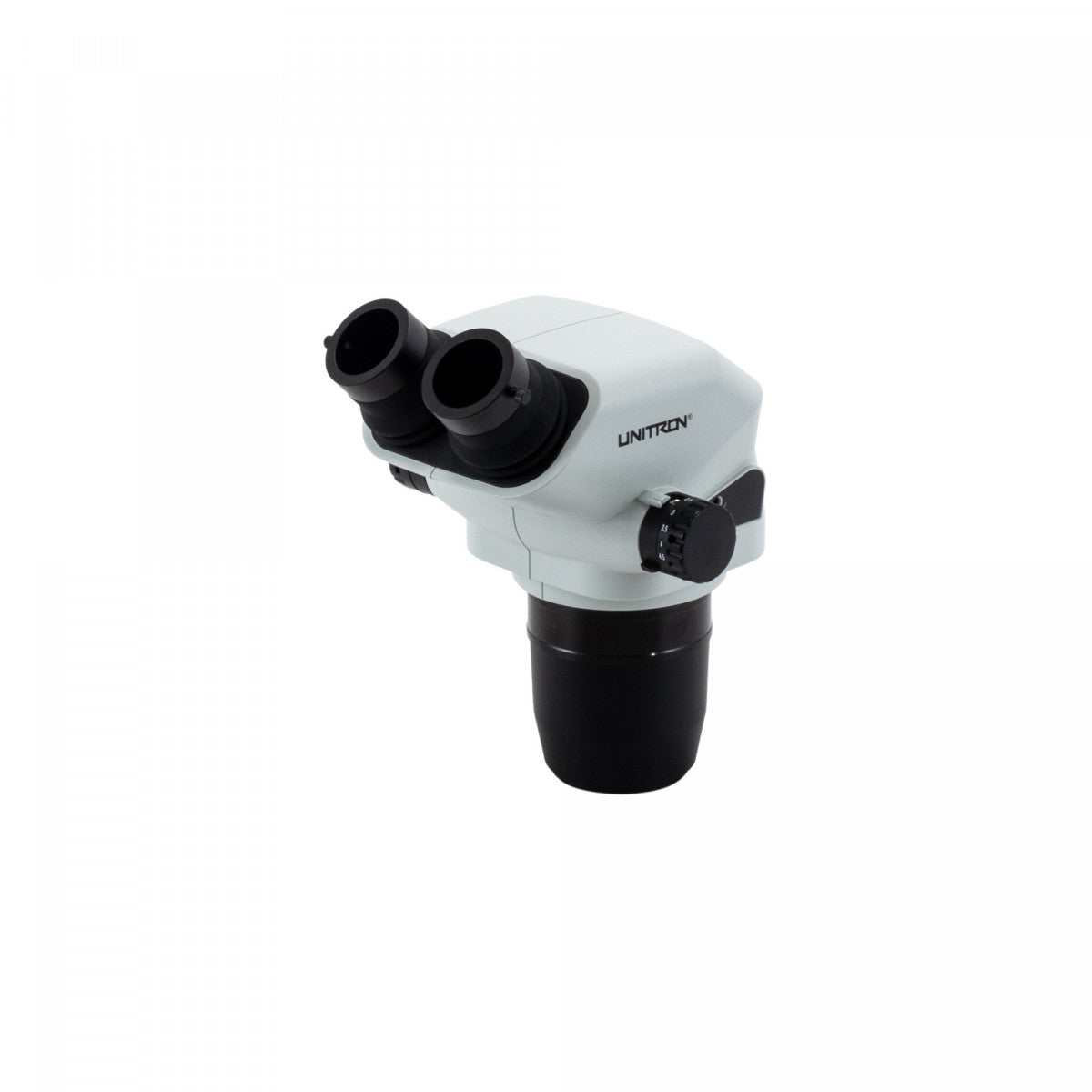

Unitron Z645 Microscope Front Auxiliary Lenses

Regular price $187.00
Regular price Sale $215.44 Sale price $187.00
Auxiliary Lenses
CONTACT US: Need help choosing the right microscope, laboratory or medical equipment? Call 919-775-5596 or email info@mundaymicroscope.com

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

International Buyers - Please Request Quote with ship to address

Have questions or need Faster Shipping? Call 919-775-5596

Tax exempt? Please email your tax exemption certificate to info@mundaymicroscope.com.

Product Overview

UNITRON Z645 auxiliary front lenses adjust the microscope's effective magnification, field of view and working distance. Select a lens based on the size of the specimen and clearance needed for inspection or handling.

Key Features

  • 0.3× objective: 287 mm working distance
  • 0.4× objective: 217 mm working distance
  • 0.5× objective: 177 mm working distance
  • 0.75× objective: 120 mm working distance

What Is This Product Used For?

Changing Z645 working distance, increasing inspection coverage or viewing smaller details.

Technical Specifications

0.3× objective 287 mm working distance
0.4× objective 217 mm working distance
0.5× objective 177 mm working distance
0.75× objective 120 mm working distance
1.5× objective 47 mm working distance
2.0× objective 26 mm working distance

Compatibility & Ordering

Confirm model compatibility, selected variant and required accessories before ordering.

Manufacturer Resources

UNITRON manufacturer resources

Additional Product Details & Resources

Unitron Z645 Front Auxiliary Lenses are used to increase or decrease magnification and zoom range

0.3x auxiliary objective, 287mm working distance (LED and Plain Focusing stand
configurations require riser adapter)
0.4x auxiliary objective, 217mm working distance (LED and Plain Focusing stand
configurations require riser adapter)
0.5x auxiliary objective, 177mm working distance
Riser adapter, required for 0.3x, 0.4x, 0.5x auxiliary objectives
0.75x auxiliary objective, 120mm working distance
1.5x auxiliary objective, 47mm working distance
2.0x auxiliary objective, 26mm working distance
1x glass lens shield (removable), 110mm working distance



Objective Lens Working Distance (mm) Eyepieces
WF10x/22mm WF15x/16mm WF20x/12.5mm
Mag. F.O.V. (mm) Mag. F.O.V. (mm) Mag. F.O.V. (mm)
1x 110 6.7x - 45x 32.8 - 4.8 10.1x - 67.5x 23.8 - 3.5 13.4x - 90x 18.6 - 2.7
0.3x 287 2x - 13.5x 109.3 - 16 3x - 20.3x 79.3 - 11.6 4x - 27x 62 - 9
0.5x 177 3.4x - 22.5x 65.6 - 9.7 5.1x - 33.8x 47.7 - 7.1 6.8x - 45x 37.3 - 5.5
0.75x 120 5x - 33.8x 43.7 - 6.5 7.5x - 50.7x 31.8 - 4.7 10x - 67.6x 24.8 - 3.7
1.5x 47 10.1x - 67.5x 21.8 - 3.2 15.2x - 101.3x 15.9 - 2.3 202.2x - 135x 12.4 - 1.8
2.0x 26 13.4x - 90x 16.4 - 2.4 20.1x - 135x 11.9 - 1.7 26.8x - 180x 9.3 - 1.3
