Product Overview

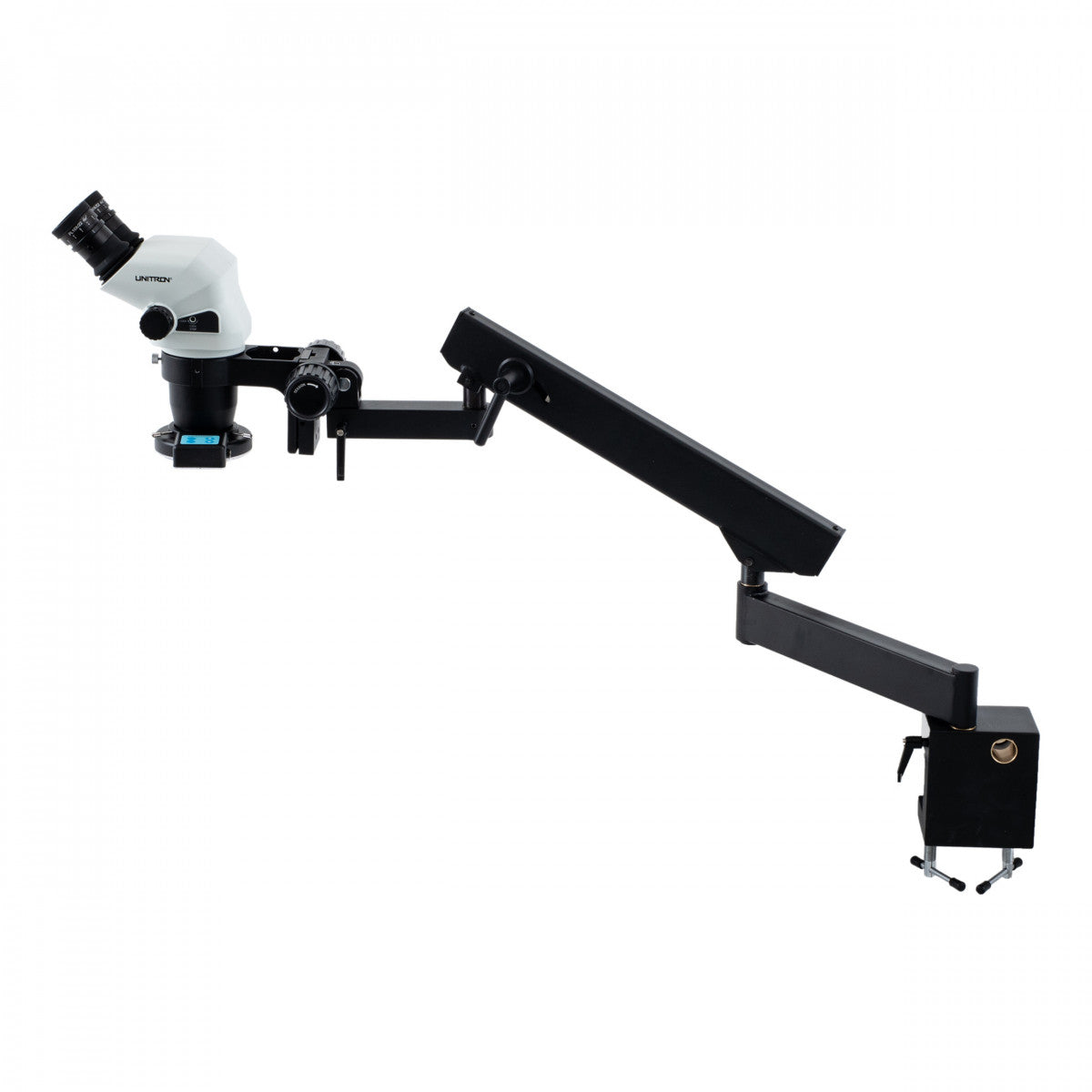

The UNITRON Z645 stereo zoom microscope with articulating arm stand supports detailed three-dimensional inspection of parts and specimens. This configuration includes a 0.5× auxiliary objective for increased working distance. Its quadrant led ring light provides adjustable specimen lighting. The Z645 zoom optics support inspection and precision assembly work.

Key Features

• 0.67×–4.5× zoom optics
• Articulating arm stand for workpiece positioning
• Quadrant LED ring light
• 0.5× auxiliary objective with 177 mm working distance

What Can This Microscope Be Used For?

Industrial quality control, electronics inspection, precision assembly and examination of small manufactured parts.

Technical Specifications

Compatibility & Ordering

Check the included viewing head, objective, stand and lighting accessories before ordering. For trinocular configurations, UNITRON Z645 camera adapters are available separately.

Manufacturer Resources

UNITRON microscope resources

Additional Product Details

Equipped with high-quality optics, the Unitron Z645 delivers sharp, distortion-free images across the entire field of view, enabling researchers, technicians, and educators to conduct accurate examinations and investigations. Its ergonomic design ensures comfortable usage over extended periods, minimizing fatigue during prolonged observation sessions. The microscope has a 0.67x to 4.5x zoom range and uses a standard 10X eyepiece.  It is an excellent stereo and inspection microscope

Specifications

• Binocular viewing head with 45° viewing angle
• 1.0x glass lens shield
• Widefield 10x/22mm focusing eyepieces
• 0.67x – 4.5x zoom magnification range
• 6.7:1 Zoom ratio
• Magnification range 6.7x-45x (with 10x eyepieces), with click stops at 0.67, 0.8, 1, 1.2, 1.5, 2, 2.5, 3, 3.5, 4 and 4.5; with adjustable zoom range limits
• Interpupillary Distance Adjustment 52mm – 76mm
• Field of view 32.8mm - 4.8mm (1x or no auxiliary lens)
• 177mm working distance
• Includes Quadrant LED ring light (CAT # 15858) with external intensity and quadrant control
• Articulating Arm with lockable 14.5” vertical motion range and 3’ scannable range
• Horizontal or vertical c-clamp mount
• Bonder Arm (E-Arm)
• Airtight and anti-mold design
• Shipping weight 25lbs.
