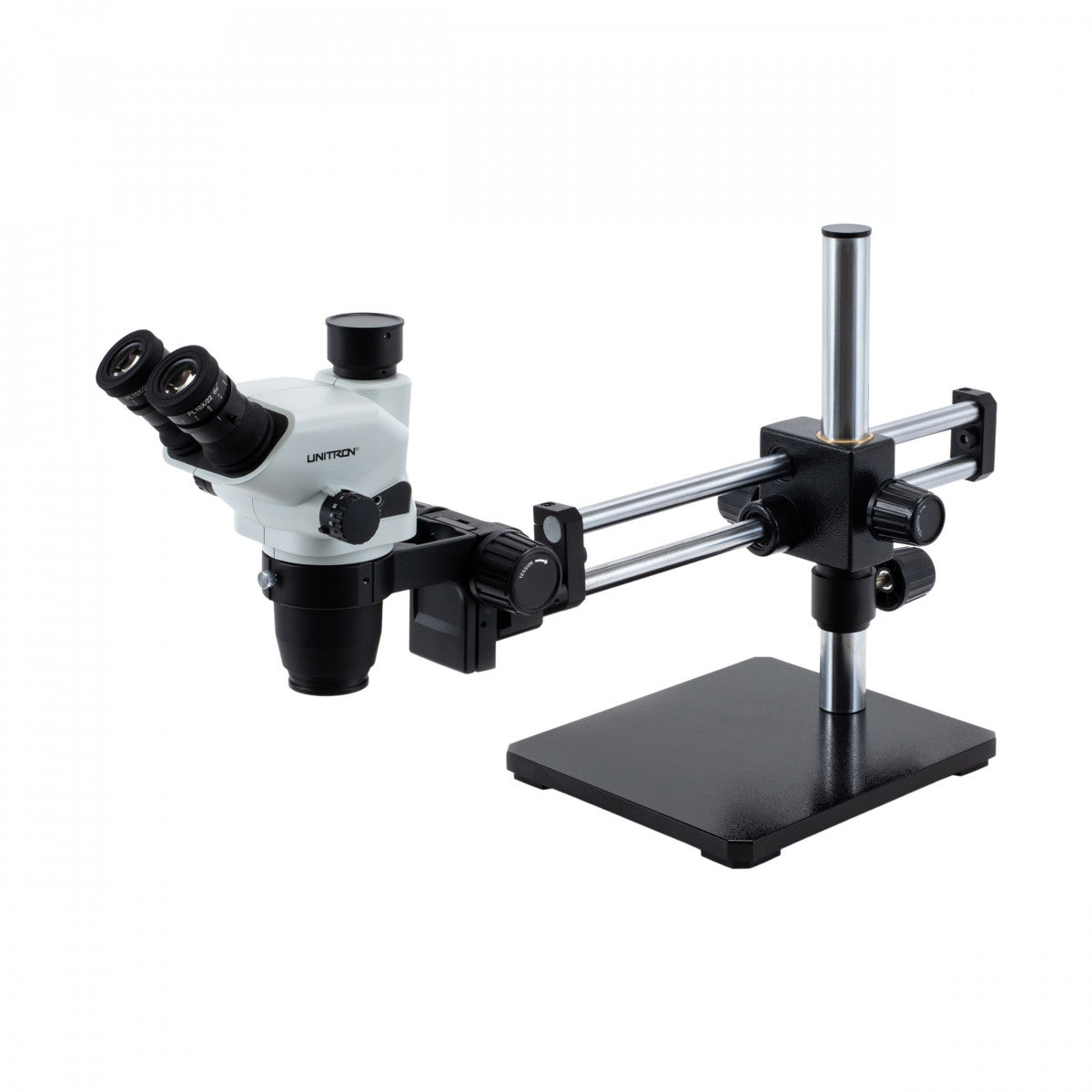

Unitron Z645 Zoom Stereo Microscope on Ball Bearing Boom Stand | Industrial
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
Product Overview
The UNITRON Z645 stereo zoom microscope with ball-bearing boom stand supports detailed three-dimensional inspection of parts and specimens. The Z645 zoom optics support inspection and precision assembly work.
Key Features
- 0.67×–4.5× zoom optics
- Ball-bearing boom stand for workpiece positioning
- Check selected illumination accessories
- Multiple microscope configuration options
What Can This Microscope Be Used For?
Industrial quality control, electronics inspection, precision assembly and examination of small manufactured parts.
Technical Specifications
| Zoom range | 0.67×–4.5× |
|---|---|
| Eyepieces | Widefield 10×/22 mm |
| Viewing head | Binocular or trinocular options per selected variant |
| Stand | Ball-bearing boom stand |
| Illumination | Check selected illumination accessories |
| Auxiliary objective | Confirm selected objective |
| Working distance | 110 mm with 1× configuration; confirm options |
Compatibility & Ordering
Check the included viewing head, objective, stand and lighting accessories before ordering. For trinocular configurations, UNITRON Z645 camera adapters are available separately.
Manufacturer Resources
Additional Product Details
Equipped with high-quality optics, the Unitron Z645 delivers sharp, distortion-free images across the entire field of view, enabling researchers, technicians, and educators to conduct accurate examinations and investigations. Its ergonomic design ensures comfortable usage over extended periods, minimizing fatigue during prolonged observation sessions. The microscope has a 0.67x to 4.5x zoom range and uses a standard 10X eyepiece. It is an excellent stereo and inspection microscope | Great for industrial applications!
If you would like to add a camera to your system we have lots of options here
Specifications
- Available with Binocular viewing head with 45° viewing angle, or Trinocular viewing head with 45° viewing angle
- 1.0x glass lens shield
- Trinocular with fixed 50:50 light split, eyepieces:camera port
- 1.0x glass lens shield
- Widefield 10x/22mm focusing eyepieces
- 0.67x – 4.5x zoom magnification range
- 6.7:1 Zoom ratio
- Magnification range 6.7x-45x (with 10x eyepieces), with click stops at 0.67, 0.8, 1, 1.2, 1.5, 2, 2.5, 3, 3.5, 4 and 4.5; with adjustable zoom range limits
- Interpupillary Distance Adjustment 52mm – 76mm
- Field of view 32.8mm - 4.8mm (1x or no auxiliary lens)
- 110mm working distance (1x or no auxiliary lens)
- Ball bearing boom stand with bonder arm focusing mount
- Base: 254mm x 254mm (10" x 10")
- Vertical Post: 394mm
- Horizontal Post: 585mm
- Weight: 42lbs
- Airtight and anti-mold design
- Shipping weight 50lbs.
Recommended Accessories
- Ring light illuminators
- Fiber optic illuminators
- Digital cameras
- Auxiliary objectives
Unitron Z645 Camera Adapters (for trinocular model)
