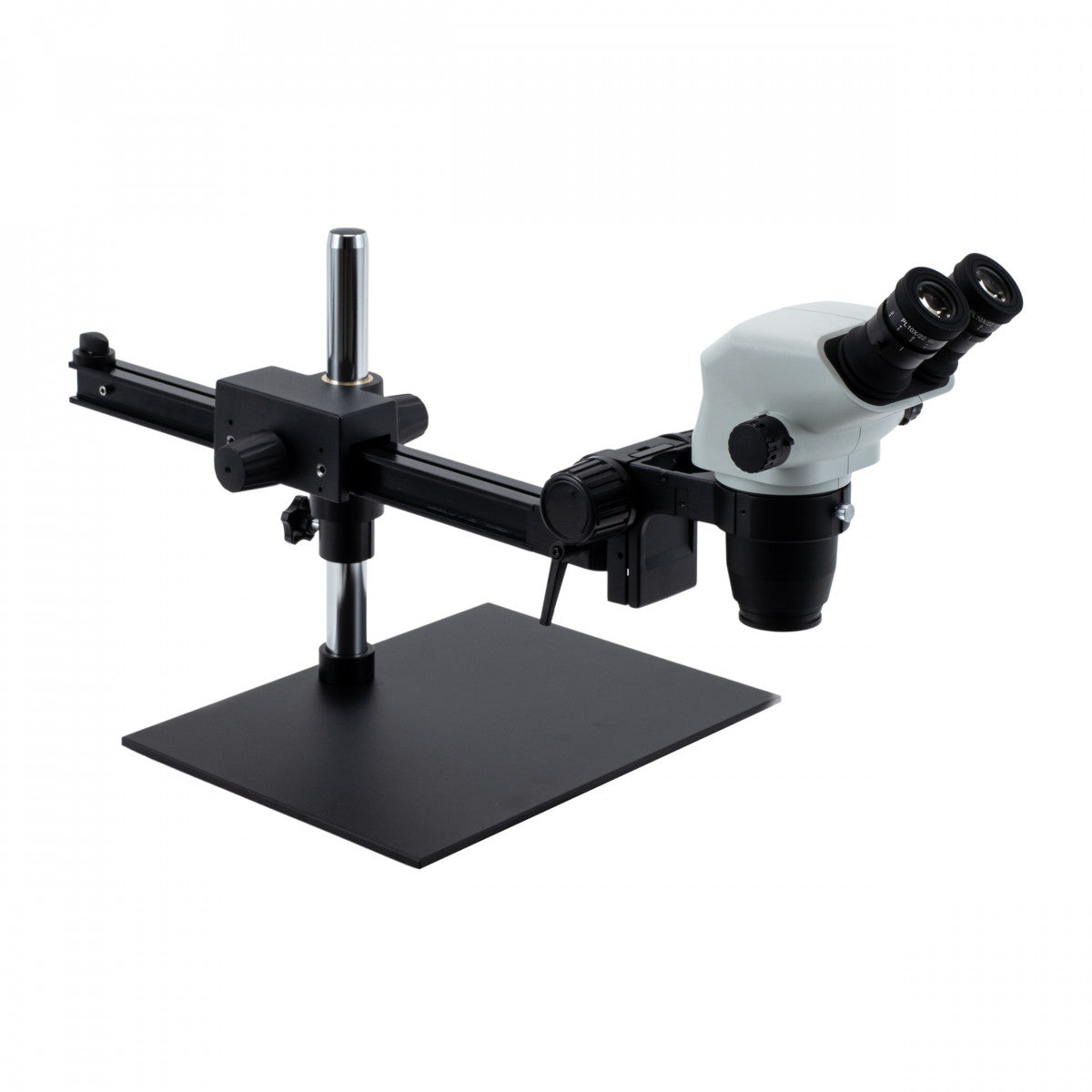

Unitron Z645 Zoom Stereo Microscope on Gliding Boom Stand

Regular price $1,588.00
Viewing Head
Don't see the option you are looking for? Call 919-775-5596

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

Have questions or need Faster Shipping? Call 919-775-5596

Equipped with high-quality optics, the Unitron Z645 delivers sharp, distortion-free images across the entire field of view, enabling researchers, technicians, and educators to conduct accurate examinations and investigations. Its ergonomic design ensures comfortable usage over extended periods, minimizing fatigue during prolonged observation sessions. The microscope has a 0.67x to 4.5x zoom range and uses a standard 10X eyepiece.  It is an excellent stereo and inspection microscope

Specifications

  • Available with Binocular viewing head with 45° viewing angle, or Trinocular viewing head with 45° viewing angle
  • 1.0x glass lens shield
  • Trinocular with fixed 50:50 light split, eyepieces:camera port
  • 1.0x glass lens shield
  • Widefield 10x/22mm focusing eyepieces
  • 0.67x – 4.5x zoom magnification range
  • 6.7:1 Zoom ratio
  • Magnification range 6.7x-45x (with 10x eyepieces), with click stops at 0.67, 0.8, 1, 1.2, 1.5, 2, 2.5, 3, 3.5, 4 and 4.5; with adjustable zoom range limits
  • Interpupillary Distance Adjustment 52mm – 76mm
  • Field of view 32.8mm - 4.8mm (1x or no auxiliary lens)
  • 110mm working distance (1x or no auxiliary lens)
  • Gliding Boom Stand with Delrin® insert on focus block for smooth, precise movement; bonder arm with Φ76mm microscope mount
  • Base Dimensions: 285.75mm x 381mm (11 1/4" x 15")
  • Vertical Post Dimensions: 332.425mm (13 7/8"); post can be mounted on either short or long edge of base
  • Horizontal Post Dimensions: 565.15mm (22 1/4")
  • Weight: 37lbs
  • Airtight and anti-mold design
  • Shipping weight 50lbs.

Recommended Accessories

  • Ring light illuminators
  • Fiber optic illuminators
  • Digital cameras
  • Auxiliary objectives
