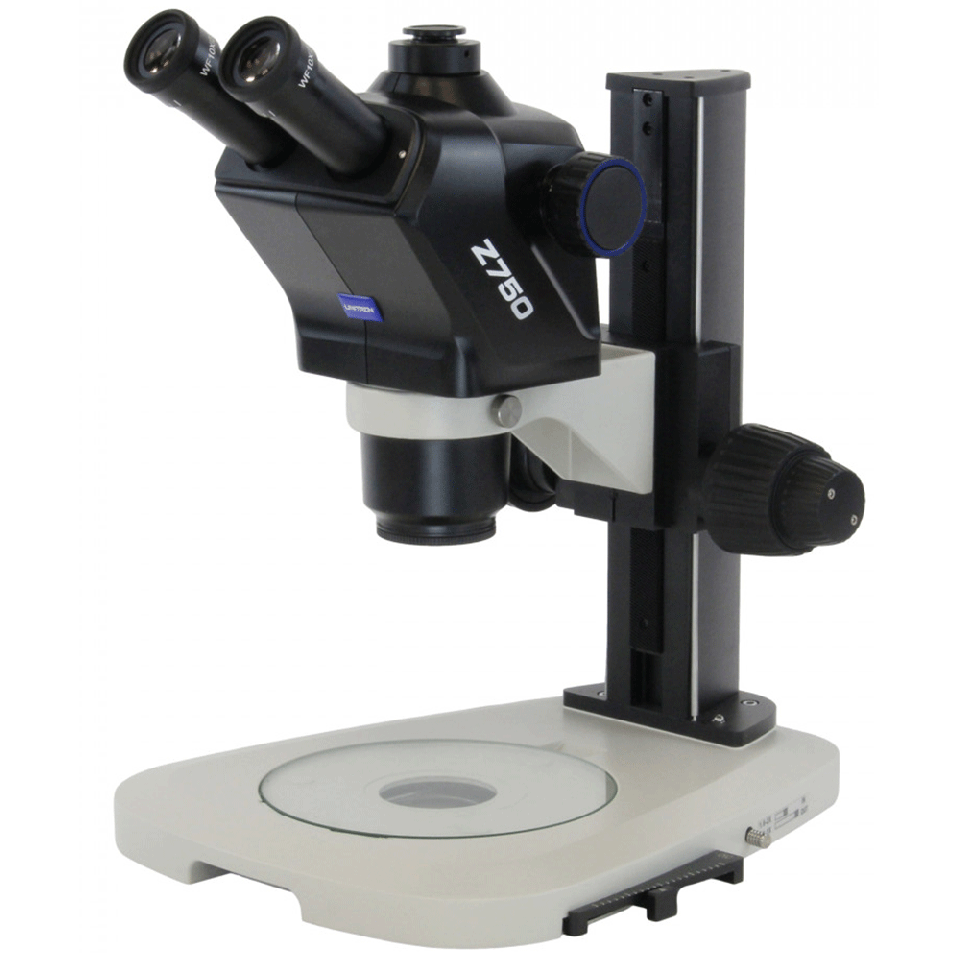

Unitron Z750 Zoom Trinocular Stereo Microscope, Oblique Illumination Contrast Stand | Model 75052

Regular price $3,759.00
Regular price Sale $3,995.00 Sale price $3,759.00
CONTACT US: Need help choosing the right microscope, laboratory or medical equipment? Call 919-775-5596 or email info@mundaymicroscope.com

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

International Buyers - Please Request Quote with ship to address

Have questions or need Faster Shipping? Call 919-775-5596

Tax exempt? Please email your tax exemption certificate to info@mundaymicroscope.com.

Product Overview

The UNITRON Z750 zoom stereo microscope on a oblique illumination contrast stand combines apochromatically corrected optics, a 7.5:1 zoom ratio and a generous 125 mm working distance for detailed three-dimensional observation. This configuration includes a trinocular head with a 50:50 eyepiece-to-camera-port light split. Its 6.7×–50× magnification range with standard 10× eyepieces makes it suitable for precision inspection and laboratory workflows.

Key Features

  • Apochromatically corrected stereo optical system
  • 0.67×–5.0× zoom range (7.5:1 ratio)
  • Widefield 10×/23 mm eyepieces and 45° inclined viewing head
  • 125 mm working distance with standard 1× glass lens shield
  • Diascopic oblique-contrast stand with sliding light baffle, variable transmitted LED and coaxial coarse/fine focus
  • Removable glass lens shield and adjustable interpupillary distance

What Can This Microscope Be Used For?

Contrast-enhanced examination of suitable translucent specimens and fine surface details. The Z750 also supports research, training and routine visual inspection where stereo depth perception and adjustable magnification are useful. Application suitability depends on lighting, accessories and specimen requirements.

Technical Specifications

Model / SKU 75052
Optics Apochromatically corrected stereo optics
Zoom range / ratio 0.67×–5.0× / 7.5:1
Magnification 6.7×–50× with standard 10× eyepieces
Eyepieces WF10×/23 mm
Working distance 125 mm with standard 1× lens shield
Interpupillary distance 50–76 mm
Viewing head Trinocular; 50:50 eyepiece/camera-port split
Stand / illumination Diascopic oblique-contrast stand with sliding light baffle, variable transmitted LED and coaxial coarse/fine focus

Compatibility & Ordering

Confirm the stand, illumination, camera adapter and auxiliary lens requirements for your application. Camera and additional lighting accessories are not implied to be included unless specifically listed with the selected configuration.

Manufacturer Resources

Download UNITRON Z750 product brochure (PDF)

Official UNITRON manufacturer information
