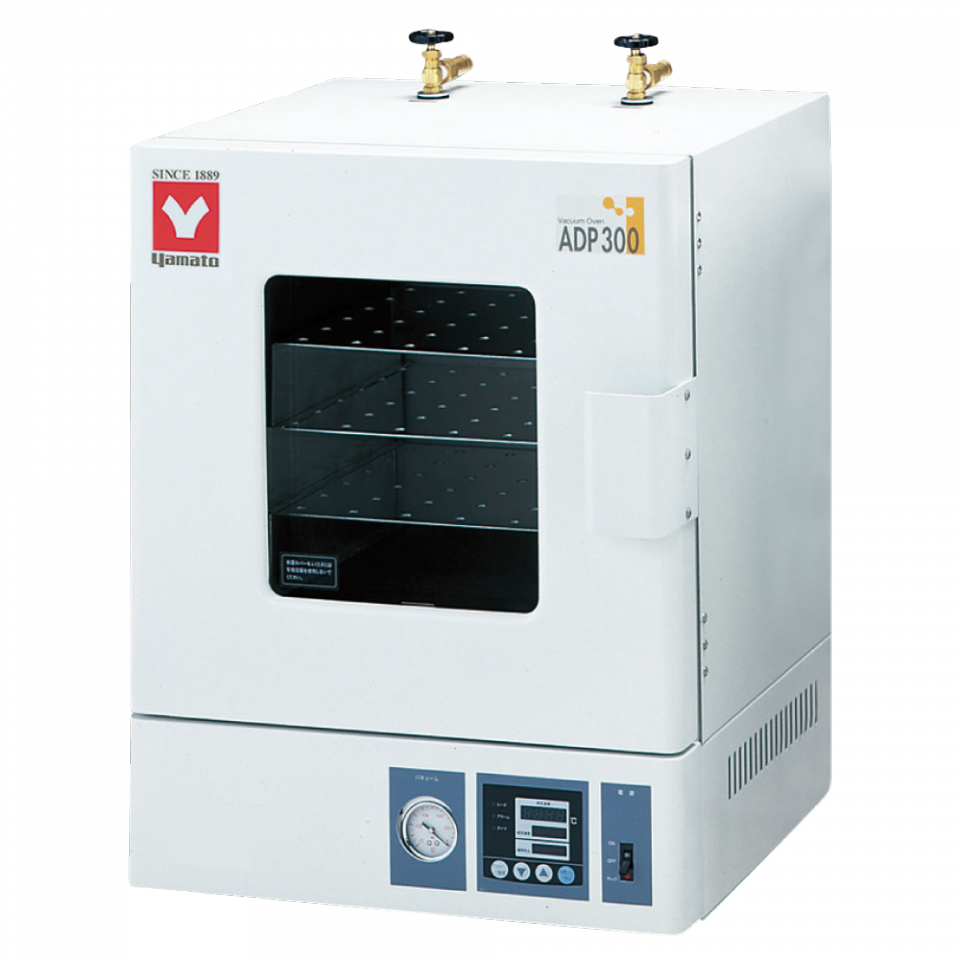

Yamato ADP-300C Laboratory Vacuum Oven, 27L 115V
Standard small size benchtop vacuum drying oven with enhanced safety features
Performance and functions
- Easy input of parameters and settings
- Digital PID controller supports fixed temperature, quick auto-stop, auto stop, auto start and program operations
- Self-diagnostic and overheating prevention functions
- Silicon rubber door seal prevents air from leaking
- Independent over heating prevention device for each circuit
- Customizable with N₂ gas inlet and communication ports
- Calibration off-set function
- Easy maintenance
Safety features
- Sensor trouble detection, SSR, short circuit detection, heater disconnecting detection, memory error, overheating and measurement temperature error
Technical Specifications
| System | Vacuum drying by decompressed chamber direct heating |
| Operating Temp. Range | 40~240°C |
| Operating Pressure Range | 101~0.1kPa (760~1 Torr) |
| Temp. Control Accuracy | ±1.5°C (at 240°C) |
| Max. Temp. Reaching Time | ~70min. |
| Interior Material | Stainless steel |
| Temp. Control Method | PlD control by microprocessor |
| Sensor | K-thermocouple |
| Temp. Setting Method | Digital setting by ▲/▼ keys |
| Temp. Display Method | Measurement temp.: Digital display by green LED / Setting temp.: Digital display by red LED |
| Timer | 1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. and 50 min. / Digital display |
| Heater | Mica heater / 0.68kW |
| Heat Insulating Material | Rock wool |
| Observation Window | Tempered glass (12 mm thickness) and polycarbonate resin plate |
| Vacuum Gauge | Bourdon tube type, 0~0.1 MPa (Gauge pressure) |
| Safety Device | Self diagnostic functions (Heater, Sensor, SSR short circuit, automatic overheat prevention function), over current electric leakage breaker, overheating prevention device |
| Internal Dimensions WxDxH | 300x 300 x300mm |
| External Dimensions WxDxH | 500 x 465 x 705mm |
| Internal Capacity | 27L |
| Shelf Loading | ~15kg / pcs |
| Shelf Rest Step Number | 3 steps |
| Shelf Rest Pitch | 75mm |
| Vacuum Port | O.D.18mm |
| Power Source | AC115V 6A AC220V 3.5A |
| Weight | ~55kg |
| Accessories | Shelf plate (Aluminum perforated metal) 3 pcs. |
This product ships directly from Yamato, ensuring fast delivery, proper handling, and factory quality. When you purchase Yamato, you’re backed by a trusted name in laboratory equipment—known for precision, reliability, and dependable support. Shop with confidence knowing your order is fulfilled directly by the manufacturer.
