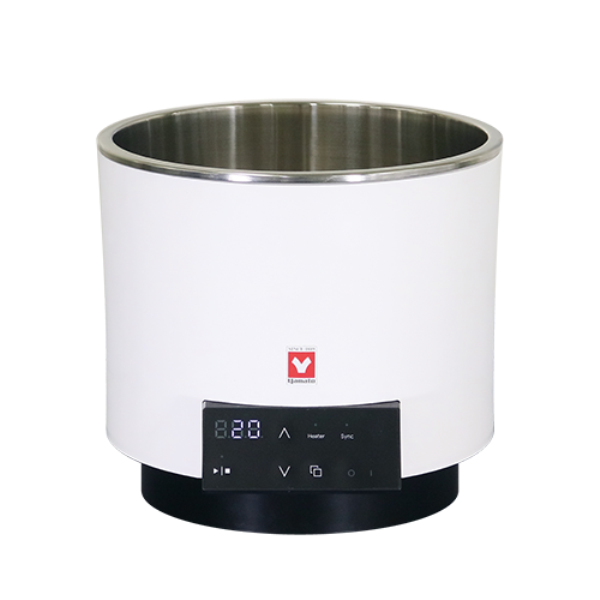

Yamato BM Series Constant Temp Lab Water Baths BM-302A
Easy to use, compact design water bath
Features
- White LED digital display, key entry
- Flat-shaped bath with no heater or sensor inside makes for ease in cleaning
- Full range of safety functions
Specifications
| Operating Temp. Range | Room temp. +10~90°C |
| Temp. Adjustment Accuracy | ±1.0°C |
| Temp. Control System | PlD control |
| Temp. Setting / Display Method | White LED digital display, key entry, minimum digit of 1°C |
| Operation Function | Operation at fixed point |
| Additional Functions | --- |
| Heater | 1000W aluminum sheathed heater |
| Sensor | Pt100Ω |
| Safety Device | Bath protection cover Automatic overheat prevention, independent overheat prevention (fixed temp.), temperature upper limit error, Overcurrent protection fuse, Overshoot alert, Auto resume (selectable), calibration offset, 2A service outlet (for BM302A) |
| Water Tank Capacity | ~5L |
| Water Tank Dimensions | ø240 x 119 mm (H) |
| External Dimensions WxDxH | ø262 x 240 mm (H) |
| Weight | ~4.5kg |
| Power Source (50/60 Hz) | AC100-115V, 10-12A (with plug) AC200-230V, 5-6A (no plug) |
| Included accessories | Spare fuse for main power (large)(1), Spare fuse for service outlet (small) (1) for BM302A |
