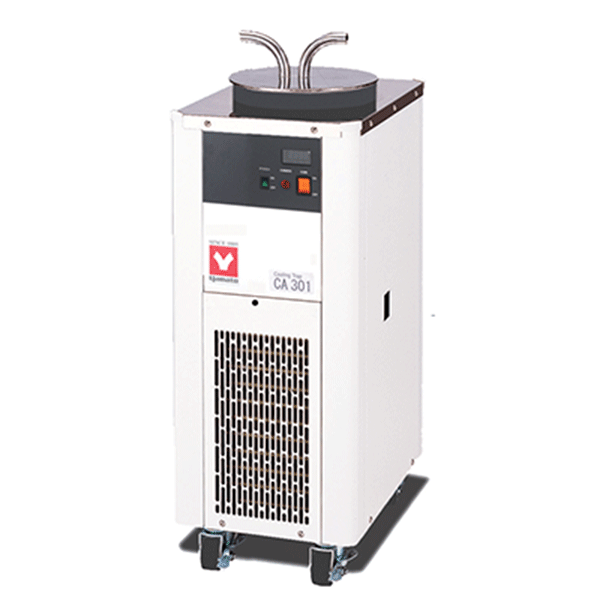

Yamato CA Series Cold Traps CA-301-220V
Efficiently traps water vapor and toxic substances discharged from vacuum oven and rotary evaporator to protect the vacuum pump
Features
- Excellent choice to extract acid and organic solvents with the optional glass condenser
- Efficiently reduces vapor inhalation amount to the vacuum pump
- Can be used as a low temperature tank as well as pre-cooling tank
- Utilizes R404A (CA301) and R600a and mixed coolants (CA801)
- Space saving and highly mobile on wheels
Specifications
| Method | Direct trap or Glass trap (optional) |
| Dehumidifying Capacity | Max. 0.9kg (Water type liquid) |
| Max. Low Temperature | -45°C |
| Refrigerator | Air cooling, 400W |
| Refrigerant | R404A |
| Cooling Coil | ID ø90 mm SUS304 |
| Lid | OD ø17.6 mm with nozzle, SUS304 |
| Bath Shape / Material | Cylindrical / SUS304 |
| Ambient Temperature Range | 5~35°C |
| Temperature Display | 7 segment LED |
| Temperature Sensor | Platinum resistance temperature detector Pt100Ω |
| Defrosting Mechanism | N/A |
| Safety Device | Electric leakage breaker with over current protection, refrigeration overload relay |
| Sink Dimensions | I.D.153 x H235 mm |
| Internal Capacity | ~4L (Liquid 3L) |
| Power Source 50/60Hz | AC220V 2.3A |
| External Dimension WxDxH | 345x475x726 mm |
| Weight | ~47kg |
