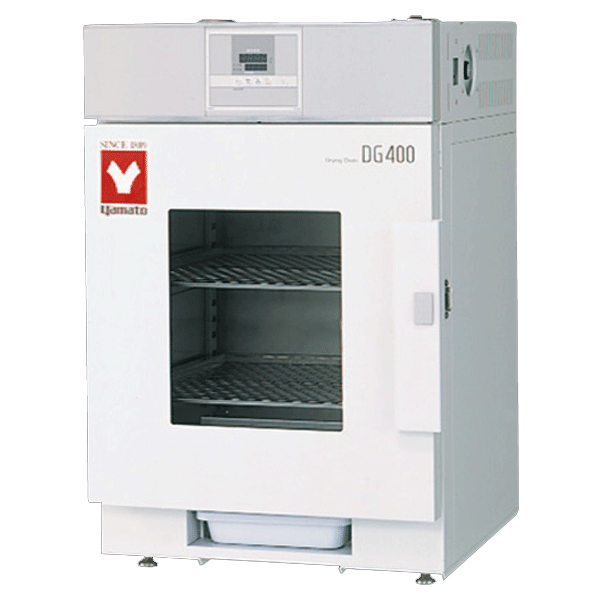

Yamato DG-400C Natural Convection Glassware Drying Oven (115V)
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
Product Overview
The Yamato DG-400C is a 115V natural-convection laboratory glassware drying oven designed to dry cleaned laboratory glassware. Review chamber dimensions, temperature range, and electrical requirements in the model-specific specifications below.
Natural convection oven for glassware drying
Operation and functions
- Large window for easy observation
- Can be used to store instruments after drying
- Highly efficient heat insulation material for both internal and external structure
- Adjustable foot for stability on uneven floors
- Mobile on casters (DG800C/810C/840C/850C)
- Equipped with stainless steel pipe heater and water receiving plate at the bottom
- Stainless steel interior, easy to clean and highly resistant to corrosion
- DG440C/450C/840C/850C installed with filter at air in-take port, exhaust fan and germicidal lamp for fast drying
- Dial setting and digital display of temperature control and timer
Safety features
- Self-diagnostic functions, calibration offset, independent overheat prevention, over current leakage breaker, key lock and auto recovery after power failure
Technical Specifications
| System | Natural convection |
| Operating Temp. Range | RT+5~70°C |
| Interior Material | Stainless steel |
| Temp. Setting Method | Digital setting by ▲/▼ keys |
| Heater | SUS pipe heater 1.0kW |
| Temp. Controller | PID control with microprocessor |
| Operation Functions | Fixed temperature, auto stop, auto start, quick auto stop |
| Sensor | Temp. controller: K thermocouple, Overheat protection: Liquid-expansion temp. controller |
| Exhaust Port | I.D. 34mm × 2 |
| Suction Port | I.D. 30mm × 2 |
| Germicidal Lamp | None |
| Internal Dimensions WxDxH | 450×450×450 mm |
| External Dimensions WxDxH | 504×562×788 mm |
| Internal Capacity | 92L |
| Weight | 45kg |
| Door | Single door, silicon rubber packing |
| Observation Window | Standard glass 3mm W250 x H300mm |
| Shelf Plate Load | 15kg/pc. |
| Shelf Rest / Pitch | 10 steps / 30mm |
| Power Source | AC115V , AC220V |
| Shelf Plate / Bracket | 2pcs. / 4pcs. |
| Water Receiving Plate | 1pc. |
This product ships directly from Yamato, ensuring fast delivery, proper handling, and factory quality. When you purchase Yamato, you’re backed by a trusted name in laboratory equipment—known for precision, reliability, and dependable support. Shop with confidence knowing your order is fulfilled directly by the manufacturer.
Applications and Product Selection
Confirm capacity, electrical requirements, temperature range and availability before ordering.
Questions About This Yamato Product?
Contact Microscope Marketplace for help selecting laboratory equipment.
Manufacturer Resources
See the Yamato operation manuals and official Yamato website. For product selection and ordering, contact Microscope Marketplace.
Related Yamato Ovens
Compare with the Yamato DG-800C Natural Convection Glassware Drying Oven (115V) for another size or electrical configuration.
