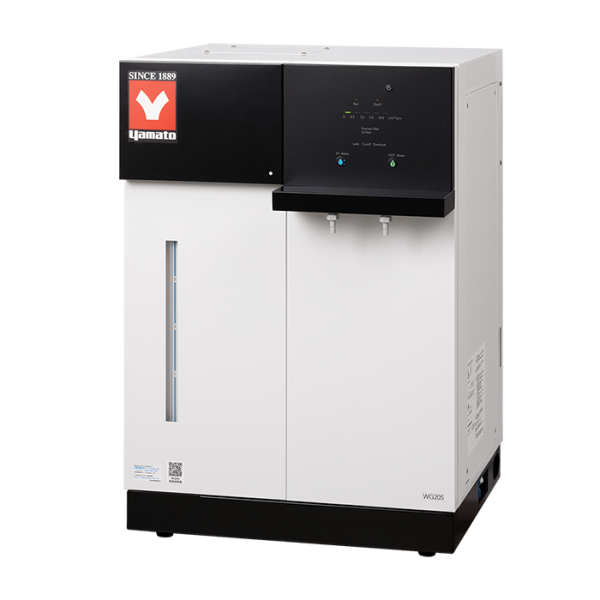

Yamato Distilled / Deionized Water Purification System ~1.8L/Hr. 20L Tank 115V WG-205-115V
Units do not come with ion-exchange resin cartidge. Must be purchased separately.
Yamato’s Auto Still WG205 is an economical multi-purpose benchtop high purity water purification system with 20L tank capacity. It is equipped with a pre-treatment cartridge to increase the life span of all consumables. In addition, it displays alerts for consumable replacements and keeps track of replacement history. The WG205 produces ASTM type 1 deionized water and type 2 distilled water kept in a 20L storage tank.
Features
- Pre-treatment cartridge removes bacteria, trihalomethane, residual chlorine, organic and dust
- High performance ion-exchange resin cartridge (CPC-S, 4L) brings high purity water with low electric conductivity and TOC
- Optional membrane filter at water sampling port
- Displays replacement of consumables
- Equipped with automatic boiler drainage function
- Compact. Can be installed in areas with limited space
Specifications
| Water Purifying Method | Ion-exchange→Distillation |
| Purified Water | Deionized water and distilled water |
| Distilled Water Production | ~1.5L/h |
| Distilled Water Delivery Rate | ~1.5L/min |
| Deionized Water Delivery Rate | ~1.0L/min |
| Range Of Production | Continuous production |
| Condenser | Hard glass |
| Heater | Ceramic heater 1.2kW |
| Pre-Treatment Cartridge | 0.1µm diameter hollow fiber + activated carbon |
| Ion-Exchange Resin Cartridge | CPC-S 4L x 1pc. (activated carbon high-purity cartridge) |
| Final Filtration | Optional membrane filter |
| Leakage Indication | Water supply solenoid valve forcibly shut off when water leakage detected |
| Distilled Water Tank Capacity | 20L polyethylene tank |
| Multi-Purpose Distilled Water Sampling Port | Right side of main unit, 1pc. |
| Water Level Sensor | Float switch 2-stage detection |
| Raw Water Pressure Range | 0.5~5 MPa |
| Power Source (50/60 Hz) | AC115V 11A with external transformer |
| External Dimension* | W540 x D575 x H775 mm |
| Weight | ~55kg |
| Water Level Display | Communication pipe water level indication |
| Water Quality Display | 5 steps conductivity LED indication |
| Other Display | Replacement of consumable parts (ion- exchange resin cartridge) |
| Included Accessories | Water supply hose (2m), water supply hose filter, connection hose assembly, can scale cleaner, pretreatment cartridge |
This product ships directly from Yamato, ensuring fast delivery, proper handling, and factory quality. When you purchase Yamato, you’re backed by a trusted name in laboratory equipment—known for precision, reliability, and dependable support. Shop with confidence knowing your order is fulfilled directly by the manufacturer.
