Yamato DKL-611C Forced Air Convection Oven 150L (220V)
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596

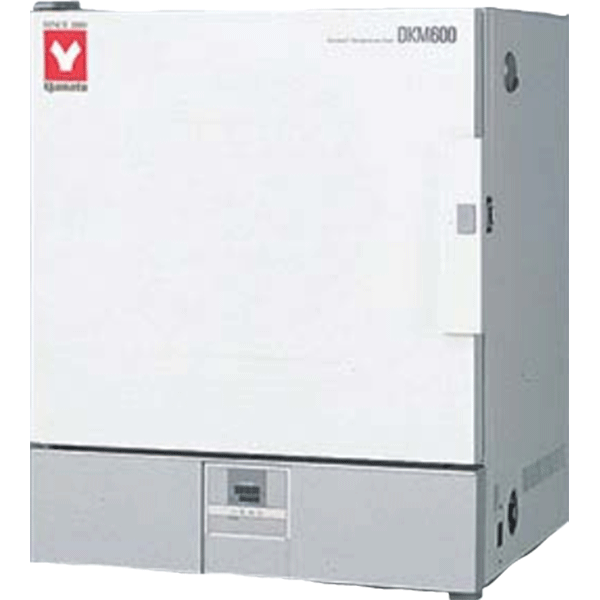

Yamato DKM610C 5.3 Cu Ft. (150L) Forced Air Convection Oven (220V)
Standard forced convection constant temperature ovens with simple operation functions
Performance and functions
- Fixed temperature, Quick Auto stop, Auto stop, and Auto start operating modes with easy control capabilities
- Settings can be made digitally with the dedicated operation menu keys or the ▲/▼ keys
- Auto recovery after power failure, calibration off-set and key-lock are possible through the auxiliary functions
Safety features
- Self-diagnostic functions, Auto overheat prevention, Independent overheat prevention
Specifications
| Circulation Method | Forced air circulation |
| Operating Temperature Range | Room temp. +10~260°C |
| Temp. Control Accuracy | ±1°C (at 210°C) |
| Temp. Distribution Accuracy | ±2.5°C (at 210°C) |
| Max. Temp. Reaching Time | 90min (at room temp. +10°C~260°C) |
| Interior Material | Stainless Steel |
| Exterior Material | Cold rolled steel plate with melamine resin baking finish |
| Heat Insulating Material | Glass wool |
| Heater | SUS pipe heater / 1.34kW |
| Fan Type / Motor | Scirocco fan / Condenser type motor 10W |
| Cable Port | 30 mm l.D.×1 pc. (right side) |
| Exhaust Port | 30 mm l.D.×2 pcs. (the top) |
| Temp. Controller | PlD control by microprocessor |
| Temp. Setting Method | Operation menu key and digital setting by ▲/▼ key |
| Temp Display Method Measurement temp. | Digital display by green LED / Setting temp. : Digital display by red LED |
| Timer | 1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. 50 min. (with time wait function) |
| Operation Functions | Fixed temperature operation, Quick Auto-stop, Auto start, Auto stop |
| Additional Functions | Calibration off-set function, Key lock, Uninterruptible power for memory |
| Heater Circuit Control | SSR control |
| Sensor | K-thermocouple |
| Safety Device | Self diagnostic functions (Sensor trouble detection, Memory error, Measured temperature lower limit error, Measured temperature error), Auto overheat prevention, Independent overheat prevention. |
| Internal Dimensions W×D×H | 600×500×500mm |
| External Dimensions W×D×H | 710×651×870mm |
| Internal Capacity | 150L |
| Shelf Plate With Standard Load | 15kg/piece |
| Shelf Rest Step Number | 12 steps |
| Shelf Rest Pitch | 35mm |
| Power Source 50/60Hz | AC220V 7A |
| Weight | 65kg |
| Shelf Plate / Bracket | Stainless steel 2 pcs. / 4 pcs. |
This product ships directly from Yamato, ensuring fast delivery, proper handling, and factory quality. When you purchase Yamato, you’re backed by a trusted name in laboratory equipment—known for precision, reliability, and dependable support. Shop with confidence knowing your order is fulfilled directly by the manufacturer.
