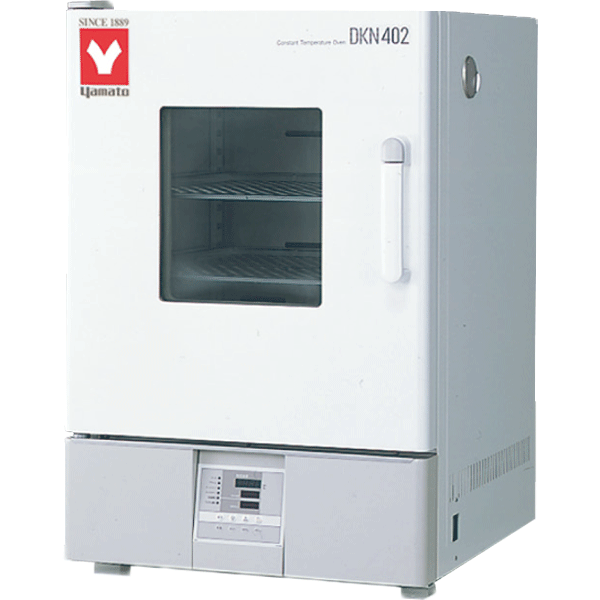

Yamato DKN402C Programmable Forced Air Convection Oven
Programmable forced convection constant temperature ovens with extended functions and safety features, Yamato bestseller, 90L capacity.
Performance and functions
- Bestseller based on excellent performance and affordability
- Superior temperature accuracy
- Come with observation windows
- Programmable PID controller for easy program settings (30-step, 3-pattern program controller with repeat functions)
- Fixed setting, Quick Auto stop, Auto stop, Auto start, Program operating modes with easy control capabilities
- Increased safety and self-diagnostic functions
- Overheating prevention and calibration off-set are possible with auxiliary functions
- Easy to use and maintain
- Built in exhaust ports
Safety features
- Self-diagnostic functions (Temperature sensor abnormal, Heater disconnection, SSR-short), Automatic overheating prevention, Electric leakage breaker with over current protection, Key lock function
Specifications
| Model | DKN-402C |
| Circulation Method | Forced air circulation |
| Operating Temp. Range | Room temp. +10°C~260°C |
| Temp. Adjustment Accuracy | ±1°C (at 210°C) |
| Temp. Distribution Accuracy | ±2.5°C (at 210°C) |
| Max. Temp. Reaching Time | ~90 min. |
| Interior/Exterior Material | Stainless steel / Cold rolled steel plate with melamine resin baking finish |
| Heat Insulating Material | Glass wool |
| Heater | SUS pipe heater/1.2kW |
| Fan Type / Fan Motor | Scirocco fan, Condenser type motor 10W |
| Cable Hole | 30mm I.D. (on the right side) 1pc. |
| Exhaust Port | 30mm I.D. x 2 (on top) |
| Observation Window | 250 x 280mm Chemical strengthening glassx3 |
| Temp. Controller | 3 patterns program controller, PID control by microprocessor |
| Temp. Setting Method | Digital setting by ▲/▼ key |
| Temp. Display | Measurement temp. : Digital display by green LED / Setting temp. : Digital display by red LED |
| Timer | 1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. 50 min. with timer wait function |
| Operation Function | Fixed temperature operation, Program operation, Auto start, Auto stop, Quick Auto-stop |
| Program Mode | Program operation : 3 patterns, 30 steps (30 steps×1, 15 steps×2, 10 steps×3) Pattern repeat function |
| Additional Functions | Calibration off-set function, Key lock, Uninterruptible power for memory |
| Heater Circuit Control | SSR control |
| Sensor | K-thermocouple |
| Safety Device | Self diagnostic functions (temp. sensor abnormal, Heater disconnection, SSR- short, Automatic overheating prevention), Key lock function, Overheat prevention, Electric leakage breaker with over current protection |
| Internal Dimensions W×D×H | 450×450×450 mm |
| External Dimensions W×D×H | 560×601×820 mm |
| Internal Capacity | 90L |
| Shelf Plate With Standard Load | ~15kg/piece |
| Shelf Rest Step Number / Shelf Rest Pitch | 11 steps / 30mm |
| Power Source 50/60Hz | 115V 11A |
| Weight | ~50KG |
| Shelf Plate | Stainless steel, 1pc on the bottom screwed (DKN912C, 2 pcs) |
| Shelf Plate / Bracket | 2 pcs. / 4 pcs. |
This product ships directly from Yamato, ensuring fast delivery, proper handling, and factory quality. When you purchase Yamato, you’re backed by a trusted name in laboratory equipment—known for precision, reliability, and dependable support. Shop with confidence knowing your order is fulfilled directly by the manufacturer.
