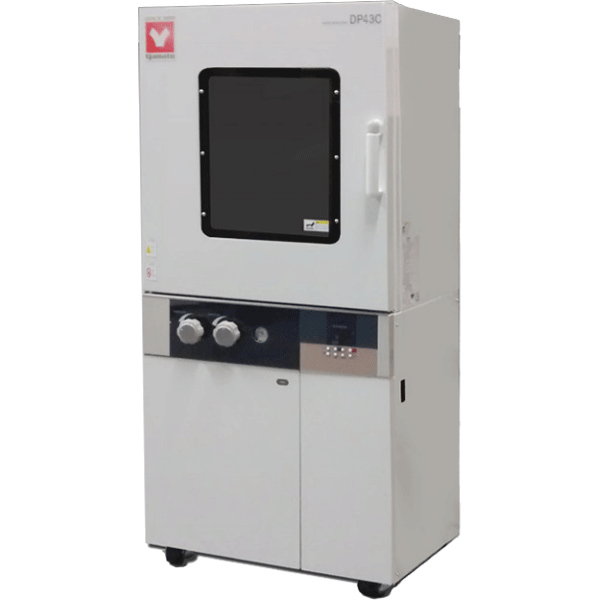

Yamato DP-43C Vacuum Drying Oven, Floor Model
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
Yamato DP-43C Vacuum Drying Oven, Floor Model, 91L 220V
Large capacity multi-purpose vacuum oven
Performance and functions
- Interactive key input of the control panel for easy operation
- Equipped with high precision functions such as fixed temperature, quick auto stop, auto stop, auto start and program operations for enhanced performance
- Vacuum reaching time significantly reduced by improvement of the exhaust system, resulting in more efficient operation
- Vacuum pump can be stored in the bottom cabinet, which is suitable for space limited laboratories
- Easy removal of piping and maintenance of the vacuum pump
- Calibration off-set function
Safety features
- Enhanced safety features: sensor trouble detection, SSR short circuit detection, heater disconnection detector(sensor), memory error, internal communication error, overheating and measurement temperature error
- Large observation window with protective cover for increased safety
Specifications
| System | Vacuum drying by decompressed chamber direct heating |
| Operating Temp. Range | 40°C to 200°C |
| Operating Pressure Range | 101 to 0.1 kPa (760 to 1 Torr) |
| Temp. Control Accuracy | ±1.0°C (at 200°C) |
| Max. Temp. Reaching Time | ~80 min. |
| Interior Material | Stainless steel |
| Exterior Material | Cold rolled steel plate with baked-on melamine resin finish |
| Door | Single swing door |
| Heat Insulating Material | Glass wool |
| Heater | Mica heater, 2.25 kW |
| Vacuum Gauge | Bourdon tube type, 0~-0.1 MPa (Gauge pressure) |
| Observation Window | Tempered glass and polycarbonate resin plate |
| Temp. Control Method | PID control by microprocessor |
| Temp. Setting Method | Digital setting with ▲/▼ keys |
| Temp. Display Method | Green LED digital display |
| Timer | 1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. and 50 min. |
| Min. Division | 1 min. or 10 mins. |
| Operation Function | Fixed temperature, Quick auto stop, Auto-start, Auto-stop, Program operation (16 segments) |
| Additional Functions | Calendar timer (max. 24 Hrs.), Integration time (max. 49999 Hrs.), Time display |
| Heater Circuit Control | Triac zero-cross control |
| Temp. Sensor | K-thermocouple (double sensor) |
| Safety Device | Self diagnostic functions (Sensor, Heater, Triac, Automatic overheating prevention), Independent overheating prevention, Key lock function, Electric leakage breaker |
| Internal Dimensions WxDxH | 450×450×450 mm |
| External Dimensions WxDxH | 670×669×1500 mm |
| Internal Capacity | 91L |
| Shelf Support Qty. / Pitch | 4 steps / 105mm |
| Exhaust Port / Purge Port | NW25 flange / Rc 1/4 (18mm O.D.) |
| Power Source | 220V, single phase, 11A (no plug, round terminal) |
| Weight | ~190kg |
| Shelf | 2 perforated stainless steel shelves |
