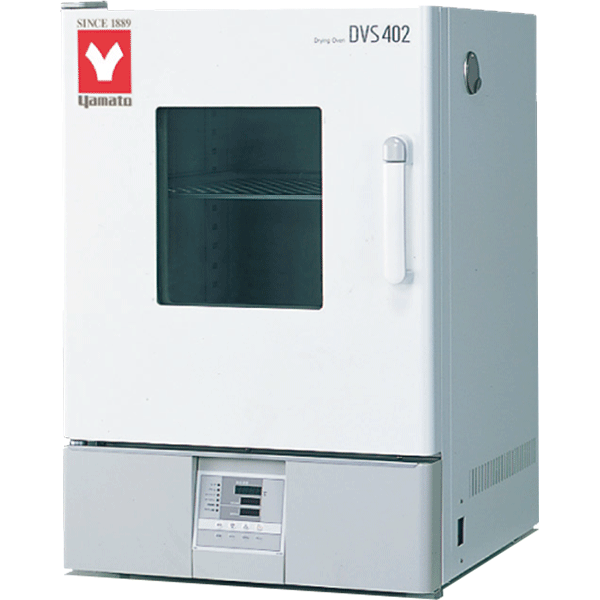

Yamato DVS-412C Natural Convection Laboratory Oven 99L (220V)
Regular price
$2,989.00
Couldn't load pickup availability
CONTACT US: Don't see the Microscope or part you are looking for? Call 919-775-5596 or email info@mundaymicroscope.com
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
Yamato DVS-412C 3.5 cu. ft Gravity Convection Laboratory Oven
Programmable natural convection constant temperature drying ovens incorporating programmable operation functions and enhanced safety features and operability
Operation and functions
- Excellent temperature accuracy
- Easy to use and maintain
- Equipped with a 6 pattern PID program controller with easy program settings (30 steps x 1, 15 steps x 2, 10 steps x 3)
- Simultaneous display of set constant and measured temperature
- Quick Auto stop, Auto Stop, Auto Start operations
- Increased safety and self-diagnostic functions
- Calibration off-set function
Specifications
| Circulation Method | Natural convection |
| Operating Temp. Range | Room temp.+5 to 260°C |
| Temp. Control Accuracy | ±1.0°C (at 260°C) |
| Temp. Distribution Accuracy | ±5.0°C (at 260°C) |
| Max. Temp. Reaching Time | 90 min. (Room temp. +5°C to 260°C) |
| Interior Material | Stainless steel |
| Exterior Material | Cold rolled steel plate with melamine resin baking finish |
| Heat Insulating Material | Glass wool |
| Heater | Stainless pipe heater / 1.2kW |
| Observation Window | 250×280 mm Chemically strengthened glass x 3 |
| Cable Hole | 30 mm l.D.×1 pcs. (right side) |
| Exhaust Port | 30 mm l.D.×2 pcs. (on top) |
| Temp. Controller | 3 patterns program controller, PID control by microprocessor |
| Temp. Setting Method | Operation menu key and Digital setting by ▲/▼ key |
| Temp. Display Method | Measurement temp. : Digital display by green LED / Setting temp. : Digital display by red LED |
| Timer | 1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. 50 min. |
| Operation Function | Fixed temperature operation, Program operation, Auto start, Auto stop, Quick Auto-stop |
| Program Mode | Program operation: 6 pattern, 30 steps (30 steps×1, 15 steps×2, 10 steps×3) |
| Additional Functions | Calibration off-set function, Key lock, Uninterruptible power for memory, Pattern repeat function |
| Heater Circuit Control | SSR control |
| Sensor | K-thermocouple |
| Safety Device | Self diagnostic functions (temp. sensor abnormal, Heater disconnection, SSR- short, Memory abnormal, Automatic overheating prevention), Overheat prevention, Electric leakage breaker with over current protection |
| Internal Dimensions (W×D×Hmm) | 450×490×450 |
| External Dimensions (W×D×Hmm) | 560×601×820 |
| Internal Capacity | 99L |
| Shelf Plate Load | 15kg / pcs. |
| Shelf Rest Step Number / Pitch | 9 steps / 30mm |
| Power Source 50/60Hz | AC220V 6.5A |
| Weight | 48kg |
| Shelf Plate / Shelf Bracket | Stainless steel, 2 pcs. / 4 pcs. |
