Yamato DVS-612C Gravity Convection Laboratory Oven 162L (220V)
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596

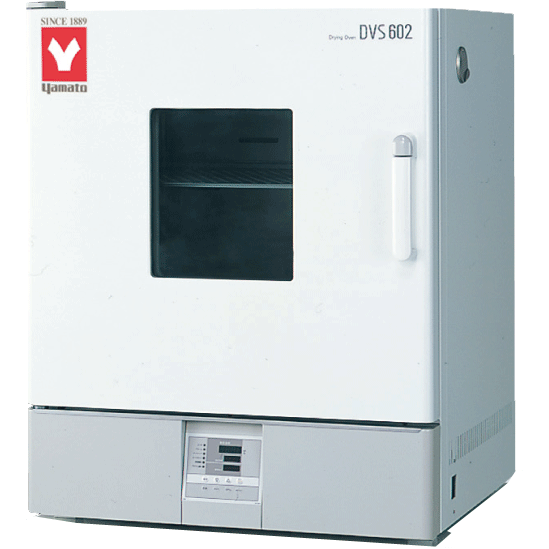

Yamato DVS-612C 5.7 cu. ft Gravity Convection Laboratory Oven (220V)
The Yamato DVS-602C Gravity Covection Oven is a great solution for basic laboratory needs. DVS series gravity ovens are programmable, making it easy to record exact settings and replicate experiments later on. Ramp, soak, and fall time are also all adjustable.
Operation and functions
- Excellent temperature accuracy
- Easy to use and maintain
- Equipped with a 6 pattern PID program controller with easy program settings (30 steps x 1, 15 steps x 2, 10 steps x 3)
- Simultaneous display of set constant and measured temperature
- Quick Auto stop, Auto Stop, Auto Start operations
- Increased safety and self-diagnostic functions
- Calibration off-set function
Safety features
-
Self-diagnostic functions (Temp. sensor abnormal, Heater disconnection, Internal communication error, temperature input circuit abnormality, Automatic overheat prevention function, SSR-short), Overheat prevention, Electric leakage breaker with over current protection
Specifications
| Circulation Method | Natural convection |
| Operating Temp. Range | Room temp.+5 to 260°C |
| Temp. Control Accuracy | ±1.0°C (at 260°C) |
| Temp. Distribution Accuracy | ±5.0°C (at 260°C) |
| Max. Temp. Reaching Time | 90 min. (Room temp. +5°C to 260°C) |
| Interior Material | Stainless steel |
| Exterior Material | Cold rolled steel plate with melamine resin baking finish |
| Heat Insulating Material | Glass wool |
| Heater | Stainless pipe heater / 1.36kW |
| Observation Window | 250×280 mm Chemically strengthened glass x 3 |
| Cable Hole | 30 mm l.D.×1 pcs. (right side) |
| Exhaust Port | 30 mm l.D.×2 pcs. (on top) |
| Temp. Controller | 3 patterns program controller, PID control by microprocessor |
| Temp. Setting Method | Operation menu key and Digital setting by ▲/▼ key |
| Temp. Display Method | Measurement temp. : Digital display by green LED / Setting temp. : Digital display by red LED |
| Timer | 1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. 50 min. |
| Operation Function | Fixed temperature operation, Program operation, Auto start, Auto stop, Quick Auto-stop |
| Program Mode | Program operation: 6 pattern, 30 steps (30 steps×1, 15 steps×2, 10 steps×3) |
| Additional Functions | Calibration off-set function, Key lock, Uninterruptible power for memory, Pattern repeat function |
| Heater Circuit Control | SSR control |
| Sensor | K-thermocouple |
| Safety Device | Self diagnostic functions (temp. sensor abnormal, Heater disconnection, SSR- short, Memory abnormal, Automatic overheating prevention), Overheat prevention, Electric leakage breaker with over current protection |
| Internal Dimensions (W×D×Hmm) | 600×540×500 |
| External Dimensions (W×D×Hmm) | 710×651×870 |
| Internal Capacity | 162L |
| Shelf Plate Load | 15kg / pcs. |
| Shelf Rest Step Number / Pitch | 13 steps / 30mm |
| Power Source 50/60Hz | AC220V 6.5A |
| Weight | 63kg |
| Shelf Plate / Shelf Bracket | Stainless steel, 2 pcs. / 4 pcs. |
