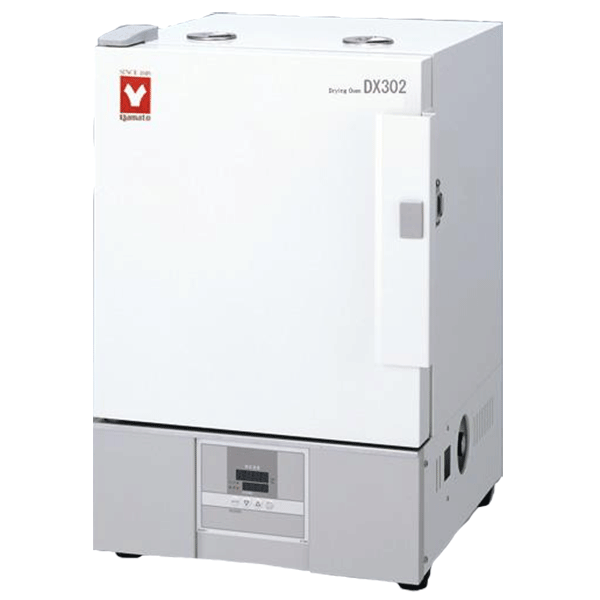

Yamato DX-312C Natural Convection Laboratory Oven 28L (220V)
Regular price
$1,870.00
Couldn't load pickup availability
CONTACT US: Don't see the Microscope or part you are looking for? Call 919-775-5596 or email info@mundaymicroscope.com
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
Yamato DX-312C 1.0 cu. ft. Gravity Convection Laboratory Oven
Standard type natural convection constant temperature drying ovens with extensive features and simple operation
Performance and functions
- Economical and cost saving
- Easy to use and maintain
- Excellent temperature accuracy
- Digital PID controller for easy operation with options for Fixed setting, Auto Start, Quick Auto Stop and Auto Stop
- Increased safety and self-diagnostic functions
- Calibration off-set function
Safety features
Temp sensor error, Temp input circuit error, Auto overheat prevention, Measured temp error, Circuit breaker with over current protection.
Specifications
| Circulation Method | Natural Convection |
| Operating Temperature Range | Room Temp. =5°C to 300°C |
| Temperature Control Accuracy | ±1°C (at 300°C) |
| Temperature Distribution Accuracy | ±10°C (at 300°C) |
| Maximum Temperature Reaching Time | 45 min (Room Temp. to 300°C) |
| Interior Material | Stainless Steel |
| Exterior Material | Electro-galvanized steel sheel with melamine resin baking finish |
| Heat Insulating Material | Glass wool |
| Heater | Iron-chrome wire heater 0.9kW |
| Exhaust Port | 33 mm I.D. x 2 pcs. (on top) |
| Temp. Controller | PID Cpntrol by microprocessor |
| Temp. Setting Method | Digital setting by ▲▼ key |
| Temp. Display Method | Measurement temp: Digital display by green LED/ Setting temp: Digital display by red LED |
| Timer | 1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. 50 min. |
| Operation Function | Fixed temperature, Quick auto stop, Auto stop, Auto start |
| Additional Function | Calibration off-set, Power failure compensation function, Key lock function |
| Heater Circuit Control | SSR control |
| Sensor | K-thermocouple |
| Safety Device | Self diagnostic functions (Temp. Sensor abnormal, Abnormal memory, Input temp. abnormal, Measured temp. abnormal, Automatic overheat prevention), Key lock function, Hydraulic independent overheat prevention device, Electric leakage breaker with over current protection |
| Internal Dimensions W x D x H | 300 x 310 x 300mm |
| External Dimensions W x D x H | 400 x 440 x 630mm |
| Internal Capacity | 28L |
| Shelf Plate With Standard Load | 15kg/piece |
| Shelf Rest Step Number/ Pitch | 6 steps/ 35mm |
| Power Source 50/60Hz | AC220V 4.3A |
| Weight | 23kg |
| Accessories | Stainless steel punching metal shelf plate 2pcs/ Shelf bracket 4pcs. |
