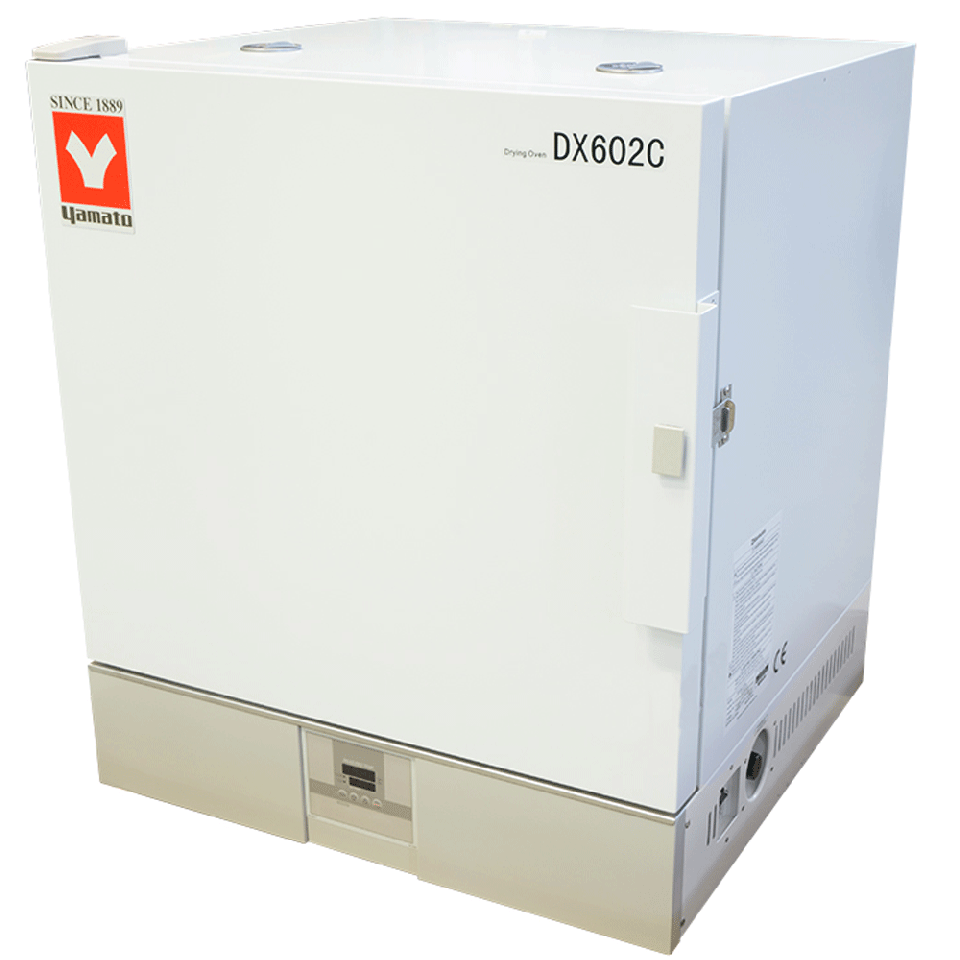

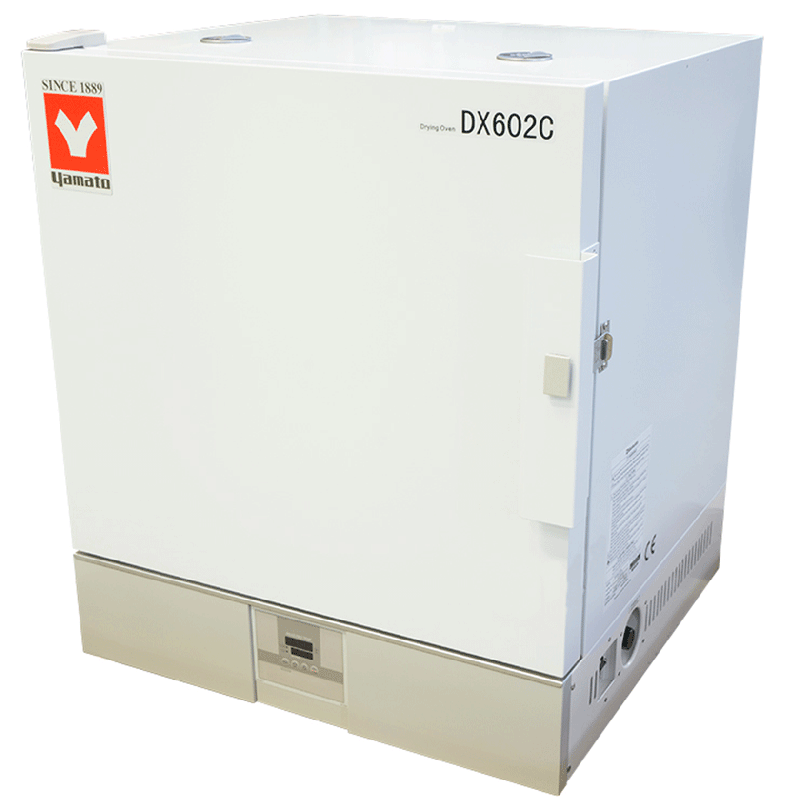

Yamato DX-612CNatural Convection Laboratory Oven 153L (220V)
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
Product Overview
The Yamato DX-612C is a 153-liter, 220V natural-convection laboratory drying oven for controlled heating and drying. Review the model-specific technical specifications and operating requirements below before ordering.
Standard type natural convection constant temperature drying ovens with extensive features and simple operation
Performance and functions
- Economical and cost saving
- Easy to use and maintain
- Excellent temperature accuracy
- Digital PID controller for easy operation with options for Fixed setting, Auto Start, Quick Auto Stop and Auto Stop
- Increased safety and self-diagnostic functions
- Calibration off-set function
Safety features
Temp sensor error, Temp input circuit error, Auto overheat prevention, Measured temp error, Circuit breaker with over current protection
Technical Specifications
| Circulation method | Natural convection |
| Operating temperature range | Room temp. +5°C to 280°C |
| Temp. control accuracy | ±1.0°C(at 300°C) |
| Temp. uniformity | ±10°C (at 280°C) |
| Max. temp. reaching time | 80 min (Room temp. to 280°C) |
| Interior material | Type 304 Stainless steel |
| Exterior material | Cold rolled steel plate with melamine resin baking finish |
| Heat insulating material | Rock wool |
| Heater | Iron-chrome wire heater 1.36 kW |
| Exhaust port | 30 mm I.D. x 2 pcs. (the top) |
| Temp. controller | PID control by microprocessor |
| Temp. setting method | Digital setting with Arrow keys |
| Temp display method | Measurement temp. : Digital display by green LED Setting temp. : Digital display by red LED |
| Operation function | Fixed temperature operation, Program operation, Auto strat, Auto stop, Quick Auto stop |
| Additional functions | Temp. memory |
| Heater circuit control | Triac zero-cross control |
| Temp. sensor | Platinum resistance bulb |
| Safety countermeasures | Temperature sensor error, Temperature input circuit error, Auto overheat prevention, Measured temperature error, Circuit breaker, Hydraulic standalone overheat prevention device. |
| Internal dimensions(W×D×Hmm) | 600x510x500mm |
| External dimensions(W×D×Hmm) | 700x640x830mm |
| Internal capacity | 153L |
| Shelf plate with standard load | Approx. 15 kg/piece |
| Shelf rest step number | 12 steps / 35mm |
| Shelf rest pitch | 35 mm |
| Power source 50/60Hz | AC220V 6.4A |
| Weight | 56kg |
| Shelf plate | Stainless steel, 2 pcs. |
| Shelf bracket | 4 pcs. |
This product ships directly from Yamato, ensuring fast delivery, proper handling, and factory quality. When you purchase Yamato, you’re backed by a trusted name in laboratory equipment—known for precision, reliability, and dependable support. Shop with confidence knowing your order is fulfilled directly by the manufacturer.
Applications and Product Selection
Confirm capacity, electrical requirements, temperature range and availability before ordering.
