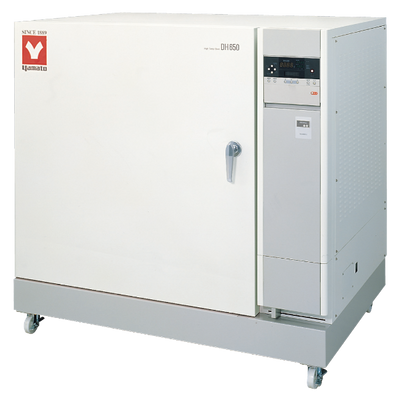

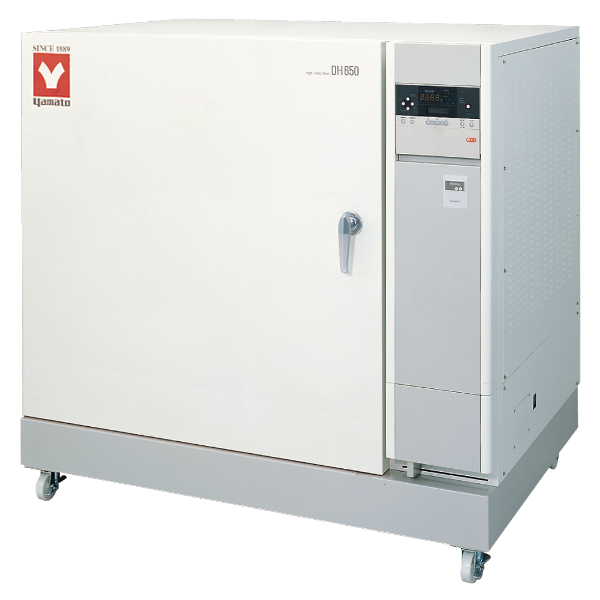

Yamato Fine Oven (High Temp., 500℃) DH-650
Fine constant temp. oven of max. working temp. 500°C.
Easy operation, available for fixed temp., program, quick auto stop, auto stop and auto start operations.
Features
Use specialized function menu key and up/down key to set. With repeat function, the program controller has 3 segments and 30 steps.
Features
Use submenu key to operate overheat protector, deviation correction and key lock.
Features
Allows quick exhaust and cooling in the unit with the exhaust damper.
Safety Protect
Self-diagnosis circuit (abnormal temp. sensing, heater disconnection, auto overheat prevention, SSR short circuit), overheat protector, electric leakage breaker, key lock, etc.
Specifications
| Model | DH650 |
|---|---|
| Method | Forced convection circulation |
| Operating temperature range | Room temp. +10~500°C |
| Temp. control accuracy | ±0.5℃（at 500℃） |
| Temp. distribution accuracy | ±3℃（at 300℃）、±5℃（at 500℃） |
| Max. temp. reaching time | Approx. 60min （at 500℃） |
| Interior material | Stainless steel plate |
| Exterior material | Cold rolled steel plate with chemical proofing coating |
| Heater | Alloy heating wire, 7.8KW |
| Insulating material | Ceramic fiber block, Heat insulation block, Rock wool |
| Blow fan / motor | Propeller fan / Condenser type motor |
| Exhaust port/Cable hole | I.D. 80mm with damper x 1 pc. (at back) |
| Heater circuit control | SSR driving |
| Sensor | K thermocouple (Temp. controller and overheat protector) |
| Damper | Circulation, Exhaust control by manually |
| Safety device | Self-diagnosis circuit (Abnormal temp. sensing, Heater disconnection, Auto overheat prevention, SSR short circuit), Overheat protector, Overcurrent ELB, Key lock. |
| Additional functions | Calibration offset, Key lock, External alarm |
| Shelf plate with standard load | 30kg / piece |
| Shelf support step number/pitch | 9 steps / 60mm |
| Shelf plate | Stainless steel wire shelf 3 pcs |
| Shelf support | 6 pcs |
| Internal dimensions（W×D×H mm） | 600×600×600mm |
| External dimensions（W×D×H mm） | 1350×950×1300mm |
| Remarks(dimensions) | 216L |
| Power Source 50/60Hz | AC220V 20.5A 3 phase |
| Weight | 250kg |
This product ships directly from Yamato, ensuring fast delivery, proper handling, and factory quality. When you purchase Yamato, you’re backed by a trusted name in laboratory equipment—known for precision, reliability, and dependable support. Shop with confidence knowing your order is fulfilled directly by the manufacturer.
