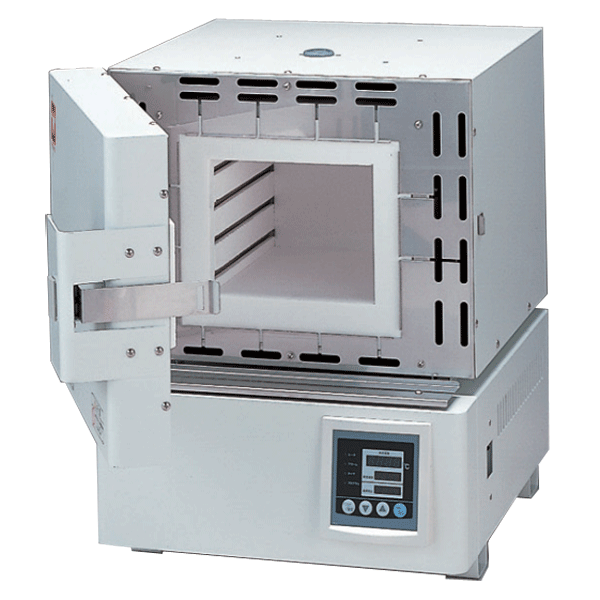

Yamato FO-410CR 9 Liter Muffle Furnace with Communication Port

Regular price $4,288.00
Regular price Sale $4,534.32 Sale price $4,288.00
CONTACT US: Need help choosing the right microscope, laboratory or medical equipment? Call 919-775-5596 or email info@mundaymicroscope.com

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

International Buyers - Please Request Quote with ship to address

Have questions or need Faster Shipping? Call 919-775-5596

Tax exempt? Please email your tax exemption certificate to info@mundaymicroscope.com.

Product Overview

The Yamato FO-410CR is a 9-liter laboratory muffle furnace with a communication port. Its controlled high-temperature chamber supports laboratory heat treatment and materials-processing applications. Review the detailed specifications below for operating limits and installation requirements.

Yamato muffle furnaces are recognized for their durability and tightly sealed doors. The FO Series represents the standard type of muffle furnaces that use a microprocessor-controlled thermoregulator characterized by excellent repeatability. They are used for high temperature applications such as fusing glass, creating enamel coatings, ceramics, soldering and brazing metals, alloying, fusion, heat treating, melting, annealing, metallurgy, mining, environmental testing, pharmaceutical development, in R&D and more.


Key Features

  • Wide selection of space-saving compact units with maximum inner capacity
  • Easy to use controller
  • Excellent heat tightness with a firmly sealed chamber door
  • High temperature accuracy at ±2.0°C
  • Program operation of maximum of 6 patterns: 30 steps x 1 pattern, 15 steps x 2 patterns or 10 steps x 3 patterns
  • Safety features include self-diagnostic functions, calibration off-set, lock function, auto-recovery after power failure, earth leakage breaker and automatic overheat prevention device
  • Selectable options include exhaust system unit, N₂ gas loading device (with flow meter), temperature output terminal, time up/alarm output terminal and sample tray
  • Upgraded with long life R-thermocouple sensors
  • Designed with communication port


Technical Specifications

Operating Temp. Range 100~1150°C
Temp. Control Accuracy ±2°C (at 1150 ° C)
Max. Temp. Reaching Time ~70min.
Exterior Material Cold rolled steel plate with baked-on melamine resin finish
Internal Material Ceramic fiber
Sensor R-thermocouple
Heater Iron-chrome wire 2.2kW
Exhaust Port ø20mm (top)
Cooling Fan Type Axial fan motor
Temp. Controller PID controll by microprocessor
Temp. Setting/Display Method Digital setting by▲/▼ keys / Digital display
Operation Function Fixed temperature, quick auto stop, auto stop, auto start, program (maximum 6 patterns: 30 steps x 1 pattern, 15 steps x 2 patterns or 10 steps x 3 patterns)
Additional Functions Calibration off-set, power failure compensation, lock, RS485 communication interface
Timer 1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs.
Safe Device Self diagnostic (memory error, heater disconnection, sensor error, SSR short curcuit), Electric leakage breaker, Overheat prevention device
Internal Dimensions WxDxH 200×300×150 mm
External Dimensions WxDxH 446×554×567 mm
Internal Capacity 9L
Power Source (50/60Hz) AC220V 10.5A single phase
Weight ~38kg
Accessories Exhaust port cap 1 pc.



This product ships directly from Yamato, ensuring fast delivery, proper handling, and factory quality. When you purchase Yamato, you’re backed by a trusted name in laboratory equipment—known for precision, reliability, and dependable support. Shop with confidence knowing your order is fulfilled directly by the manufacturer.

Product Brochure

Applications and Product Selection

Confirm capacity, electrical requirements, operating conditions and availability before ordering.

Questions About This Yamato Product?

Contact Microscope Marketplace for help selecting laboratory equipment.

Manufacturer Resources

See the Yamato operation manuals and official Yamato website. For product selection and ordering, contact Microscope Marketplace.

Related Muffle Furnaces

Compare chamber sizes and electrical requirements with the Yamato FO-310CR 7.5 Liter Muffle Furnace with Communication Port (220V).
