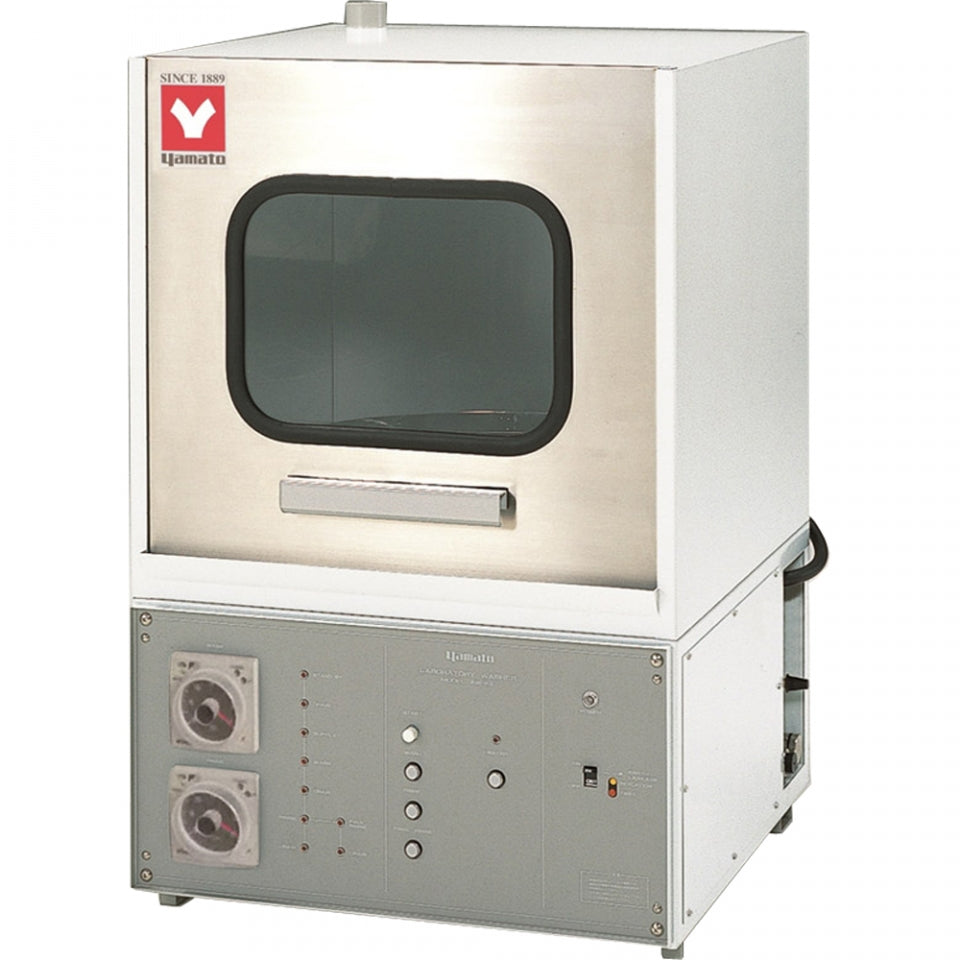

Yamato AW-62 Fully-Automatic Benchtop Laboratory Glassware Washer
Compact and powerful automatic benchtop washer with spin table helps reduce laboratory glassware cleaning workload
Performance and functions
- All processes from wash to rinse are fully automatic. Each process is displayed on indicator
- Final rinse (option) with purified water available
- Water purifier connection is possible for pure water rinse process
- Wash process and time can be set according to glassware shape and contamination level
- Cleaning water temperature impacts final cleaning results. With built-in water heater, no boiler piping and water heating system are required
- Powerful upward and downward two-way pressurized water jet method
- Optional jet rack is available for hard to clean targets, such as glassware with narrow neck or body
Specifications
| Cleaning Method | Two direction pressurized water jet method, fixed jet nozzle |
| Cleaning Cycle | Wash (setting range: 0~30min.), Rinse (setting range: 0~30min.), Purified water rinse (optional) when connected with water purifier, Rinse clean with 20L purified water |
| Water Supply | Room temp. ~ 60°C |
| Washing Water Temp. | 45~80°C |
| Water Heater | Built-in heater 6kW |
| Supply Water Pressure | 0.1~0.3MPa |
| Glassware Stand | Spin table (Standard), racks (optional) |
| Water Supply | Controlled by electromagnetic valve open/close, water level adjustable by water level control switch |
| Water Drain | Natural drainage by water level gap |
| Exterior Material | Chrome-free electric galvanized steel plate, chemical-resistant paint |
| Interior Material | Stainless steel |
| External Dimensions | W600 x D620 x H940mm |
| Internal Dimensions | W594 x D572 x H564mm, effective height: 345mm |
| Spin Table | Dia. 550mm (max. load bearing: 25kg) |
| Pump | Three phase AC220V 250W |
| Door | Drop down style (can stop at any position) |
| Weight | ~90kg |
| Power Source (50/60Hz) | Three phase AC220V 17A |
| Accessories | 1 pc. water supply hose (with coupler) 2m, 1 pc. drain hose (I.D.25.4mm) 1.5m, 1 kg. phosphorus-free detergent (50ml measuring spoon 1pc.), vinyl cover, 1 pc. main jet nozzle cleaning needle, water supply unit |
| Consumable | Phosphorus-free detergent |
This product ships directly from Yamato, ensuring fast delivery, proper handling, and factory quality. When you purchase Yamato, you’re backed by a trusted name in laboratory equipment—known for precision, reliability, and dependable support. Shop with confidence knowing your order is fulfilled directly by the manufacturer.
