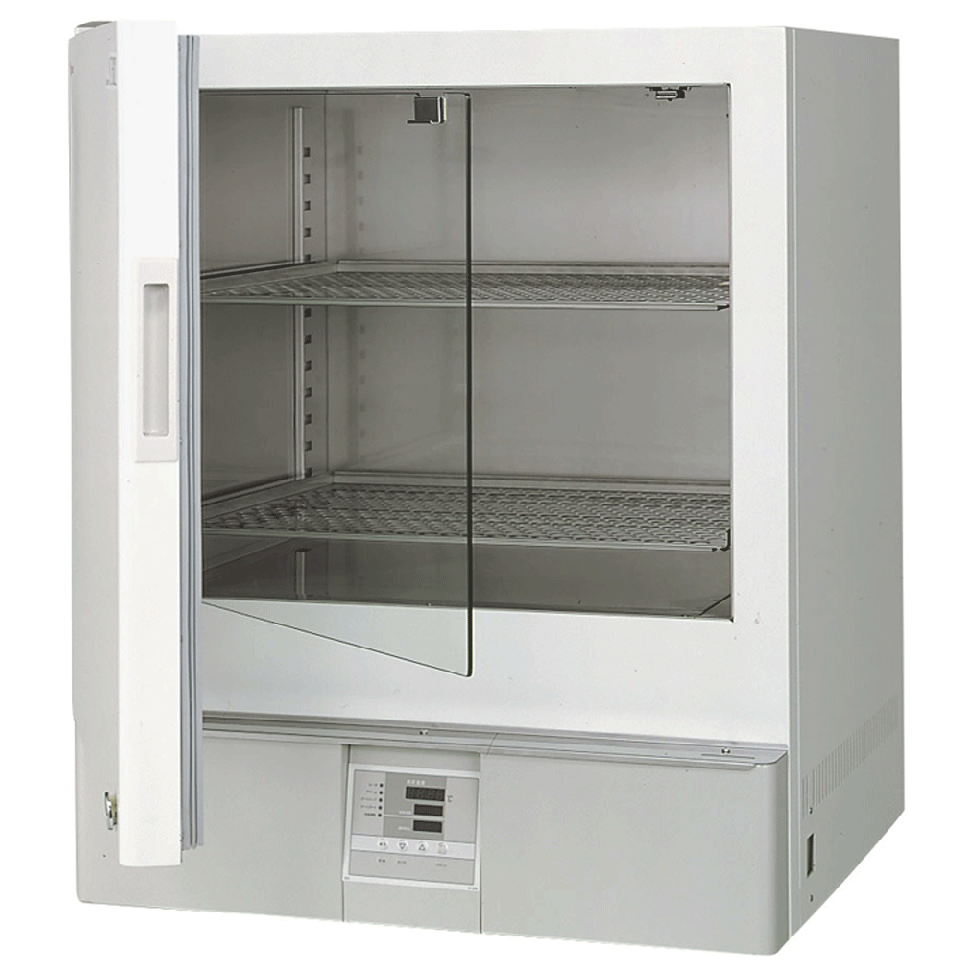

Yamato IC-603CW Natural Convection Incubator With Window
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
Yamato IC-603CW Natural Convection Incubator With Window, 159L 115V 6A 50/60Hz
Economical general purpose natural convection incubator
Operation and functions
- Space saving Design
- Observation window for improved visibility
- Dual door system permits contents to be viewed easily without disrupting atmosphere of the incubator
- Easy to use digital setting display and timer
- Air jacket technology ensures even and efficient heat distribution throughout the chamber
- Standard equipped with various functions such as self-diagnostic, calibration off-set, overheat prevention and key lock
- Option for communication port (R)
Specifications
| System | Natural convection |
| Operating Temp. Range | Room temp. +5~80°C |
| Temp. Control Accuracy | ±0.5°C (at 37°C) |
| Temp. Distribution Accuracy | ±1.0°C |
| Interior | Stainless steel |
| Exterior | Cold rolled steel plate with melamine resin baking finish |
| Heat Insulator | Glass fiber |
| Heater | Iron-chrome wire heater, 0.4kW |
| Temperature Controller | PID control by microprocessor |
| Temperature Setting System | Operation menu key and digital setting by ▲▼ keys, digital display |
| Temperature Display | Measurement temperature: Digital display by 4 digit green LED / Setting temperature: Digital display by 4 digit red LED |
| Timer | 1 min. ~ 99 hrs 59 mins. and 100~999 hrs 50 mins (including timer waiting function) |
| Operation Function | Fixed temperature, Auto start, Auto stop, Quick Auto stop |
| Additional Function | Calibration off-set, Key-lock, Power outage compensation |
| Safety Device | Self diagnostic functions, temp. sensor error, display error, measurement temp. error, auto overheat prevention |
| Heater Control Circuit | SSR drive system |
| Sensor | K-thermocouple |
| Internal Dimensions WxDxH | 600 × 530 ×500mm |
| External Dimensions WxDxH | 710 x 656 x 870 mm |
| Internal Capacity | 159L |
| Inner Door | Reinforced glass door x 1 |
| Shelf Load Capacity | ~15 kg/pc. |
| Shelf Rest Step Number | 12 steps |
| Power Supply (50/60 Hz) | AC115V 6A AC220V 2A |
| Weight | ~65 kg |
| Shelf / Shelf Brackets | Stainless steel, 2 pcs. / 4pcs. |
| Optional Items | Stand, Stacking kit, Additional shelf, Cable hole (25/50mm or 30/50mm), External communication terminal (RS485), Temp. output terminal, Time-up output terminal for alarm device |
This product ships directly from Yamato, ensuring fast delivery, proper handling, and factory quality. When you purchase Yamato, you’re backed by a trusted name in laboratory equipment—known for precision, reliability, and dependable support. Shop with confidence knowing your order is fulfilled directly by the manufacturer.
