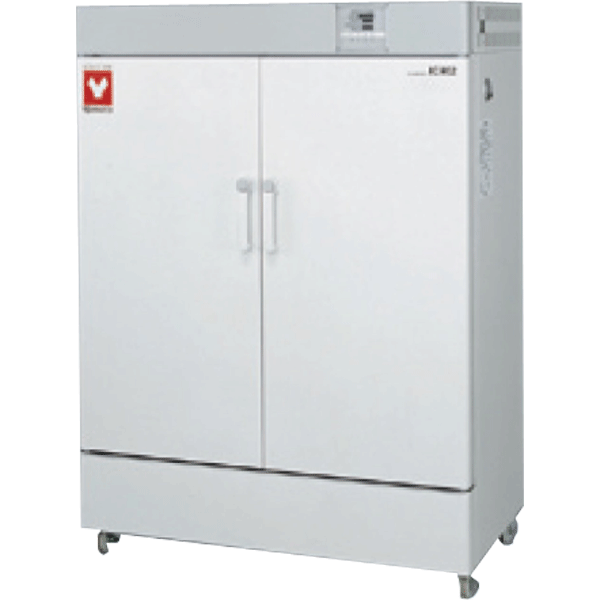

Yamato IC-913CW Natural Convection Incubator With Window
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
Product Overview
The Yamato IC-913CW is a natural-convection laboratory incubator featuring an observation window that lets users check samples without routinely opening the chamber. Designed for routine temperature-controlled incubation, it offers a practical choice for laboratories that need consistent chamber conditions. Review the model-specific technical specifications below before ordering.
Economical general purpose natural convection incubator
Operation and functions
- Space saving Design
- Observation window for improved visibility
- Dual door system permits contents to be viewed easily without disrupting atmosphere of the incubator
- Easy to use digital setting display and timer
- Air jacket technology ensures even and efficient heat distribution throughout the chamber
- Standard equipped with various functions such as self-diagnostic, calibration off-set, overheat prevention and key lock
- Option for communication port (R)
Technical Specifications
| System | Natural convection |
| Operating Temp. Range | Room temp. +5~80°C |
| Temp. Control Accuracy | ±0.5°C (at 37°C) |
| Temp. Distribution Accuracy | ±1.0°C |
| Interior | Stainless steel |
| Exterior | Cold rolled steel plate with melamine resin baking finish |
| Heat Insulator | Glass fiber |
| Heater | Iron-chrome wire heater, 2.2kW |
| Temperature Controller | PID control by microprocessor |
| Temperature Setting System | Operation menu key and digital setting by ▲▼ keys, digital display |
| Temperature Display | Measurement temperature: Digital display by 4 digit green LED / Setting temperature: Digital display by 4 digit red LED |
| Timer | 1 min. ~ 99 hrs 59 mins. and 100~999 hrs 50 mins (including timer waiting function) |
| Operation Function | Fixed temperature, Auto start, Auto stop, Quick Auto stop |
| Additional Function | Calibration off-set, Key-lock, Power outage compensation |
| Safety Device | Self diagnostic functions, temp. sensor error, display error, measurement temp. error, auto overheat prevention |
| Heater Control Circuit | SSR drive system |
| Sensor | K-thermocouple |
| Internal Dimensions WxDxH | 1070 × 530 ×1000mm |
| External Dimensions WxDxH | 1180 x 656 x 1619 mm |
| Internal Capacity | 567L |
| Inner Door | Reinforced glass door x 1 |
| Shelf Load Capacity | ~15 kg/pc. |
| Shelf Rest Step Number | 29 steps x 2 |
| Power Supply (50/60 Hz) | AC115V 13A AC220V 6.5A |
| Weight | ~166 kg |
| Shelf / Shelf Brackets | Stainless steel, 8 pcs. / 16pcs. |
| Optional Items | Stand, Stacking kit, Additional shelf, Cable hole (25/50mm or 30/50mm), External communication terminal (RS485), Temp. output terminal, Time-up output terminal for alarm device |
This product ships directly from Yamato, ensuring fast delivery, proper handling, and factory quality. When you purchase Yamato, you’re backed by a trusted name in laboratory equipment—known for precision, reliability, and dependable support. Shop with confidence knowing your order is fulfilled directly by the manufacturer.
Applications and Product Selection
Confirm capacity, electrical requirements, operating conditions and availability before ordering.
Questions About This Yamato Product?
Contact Microscope Marketplace for help selecting laboratory equipment.
Manufacturer Resources
See the Yamato operation manuals and official Yamato website. For product selection and ordering, contact Microscope Marketplace.
Yamato Manufacturer Resources
Explore the Yamato Scientific operation manual library for incubator documentation. Verify the exact model designation and voltage before relying on any manual.
