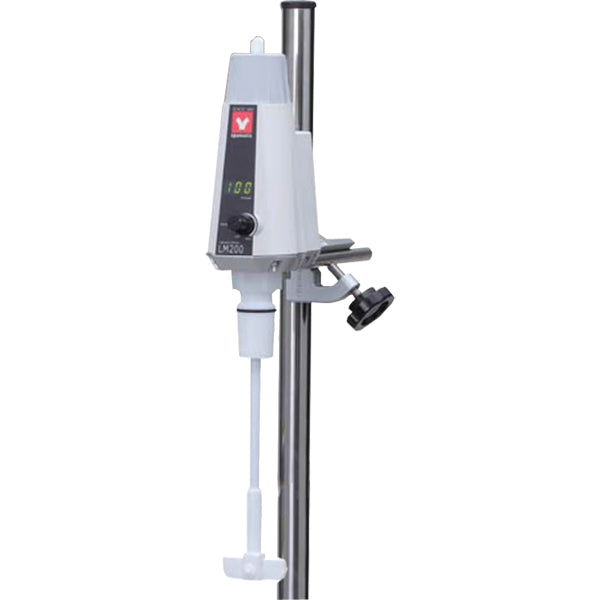

Yamato LM-200 Flask Mixer With Digital Indicator, 50-1000 RPM 115V
LM Series compact design laboratory flask mixer features integrated drive and stirring seal allowing direct installation of flask and stirring in a vacuum and sealed state. No time-consuming shaft alignment required. Its strong stirring power is perfect for samples of high volume and high viscosity. LM200/210 is equipped with digital indicator.
Features
- Wide range rotation speed of 50-1000 rpm
- Maintenance free and superior DC brushless motor
- Belt drive transmission minimizes noise and vibration
- Capable of vacuuming up to 399.9Pa without impairing rotation efficiency
- Directly attachable to a three-neck flask 24/40, 29/42 optional
- Variety of stirring shafts and blades available to handle small to large volume samples
- Fluorine rubber seal as standard for shaft seal, superior chemical resistant Teflon®rubber seal available as option
- At the flask joint, FKM o-ring is used as standard, superior chemical resistant Kalrez® o-ring available as option
- Equipped with 24/40 rotary joint, 29/42 optional
- Capable of AC100-240V by changing power cord
Specifications
| Operating Temp. Range | 5°C~35°C |
| Speed Range | 50~1000 rpm |
| Max. Torque | 0.1N•m |
| Max. Ultimate Vacuum | < 399.9Pa |
| Exterior | PBT /ADC12 (Surface: branded / painted) |
| Motor | DC brushless motor 30W |
| Speed Control | Feedback control |
| Display | 3 digit×10 rpm Digital |
| Operation Lamp | Rotation speed display |
| Adaptable Flask Size | 50~5000 ml |
| Joint Size | TS 24/40 |
| Chuck | ø8mm (φ7.9~7.95) |
| Sealing Material | PTFE (rotary joint) / FKM (oil seal, o-ring) |
| Safety Device | Overload protection function, coupling cover (hair entanglement prevention structure), slow start function |
| External Dimension | W69 × D108 × H222 mm |
| Power Source 50/60Hz | Single phase AC100V~AC120V 50/60Hz 1A |
| Power Cord | A type 3P (AC115V 50/60Hz) |
| Weight | 700g (main body only) |
| Included Accessories | Hexagon socket head cap screw & wrench, AC adapter, 3m power cord, coupling cover, handle (arbor), flask clip |
| Operational Accessories | Stirring shaft (stainless steel or glass), propellers (different types and sizes), stand and rod |
This product ships directly from Yamato, ensuring fast delivery, proper handling, and factory quality. When you purchase Yamato, you’re backed by a trusted name in laboratory equipment—known for precision, reliability, and dependable support. Shop with confidence knowing your order is fulfilled directly by the manufacturer.
