Yamato LR-500BA Set (Main Body, Stand, Shaft, Propeller) Model # LR-500BA
Regular price
$2,568.00
Couldn't load pickup availability
CONTACT US: Don't see the Microscope or part you are looking for? Call 919-775-5596 or email info@mundaymicroscope.com
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596

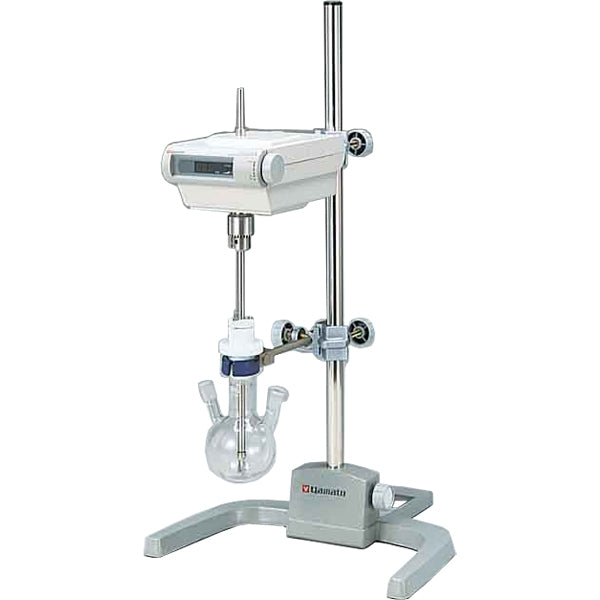

Yamato LR-500BA Set (Main Body, Stand, Rod, Stainless Steel Shaft, and 75mm 4-Blade Propeller)
Features
- DC brushless motor considered superior in safety as there are no brushes to cause sparks and no brush replacement required
- Direct-drive system reduces noise and require low maintenance
- Achieves high torque enabling stirring of high viscosity solution
- Digital tachometer for easy speed setting and confirmation
- Load on the stirring shaft can be monitored by LED2 display. An overload lamp turns on when exceeding the maximum load, stopping the motor automatically
- Revolution feedback control function can maintain the setting rate despite change of load (especially suitable for high viscosity samples)
Specifications
| Speed Range | 100~100 rpm |
| Max. Torque | 1.96N•m (20kgf•cm) |
| Display Of Speed / Torque | Digital, 3-digit / Green LED, 2 Steps + Overload Display |
| Motor (Brushless DC) | 70W |
| Speed Control | Speed feedback control |
| Safety Device | Stops when overloaded |
| Stirring Function / Shaft Dia. | Gearless Direct Drive Type / ø10mm |
| Power Source 50/60Hz | AC100~125V 3A |
| Included Accessories | Stirring shaft (ø10*500mm), 75mm 4-blade propeller, clamp |
| Operational Accessories | Stand and rod |
| Optional Accessories | Propellers (different types and sizes), vacuum adapter, extra long stirring shaft (ø10*800mm), glass stirring shaft |
