Product Overview
Yamato Programmable Forced Air Convection Oven 300L (220V) | Model DKV-810 from Yamato Scientific. Review the model-specific product details and specifications below.

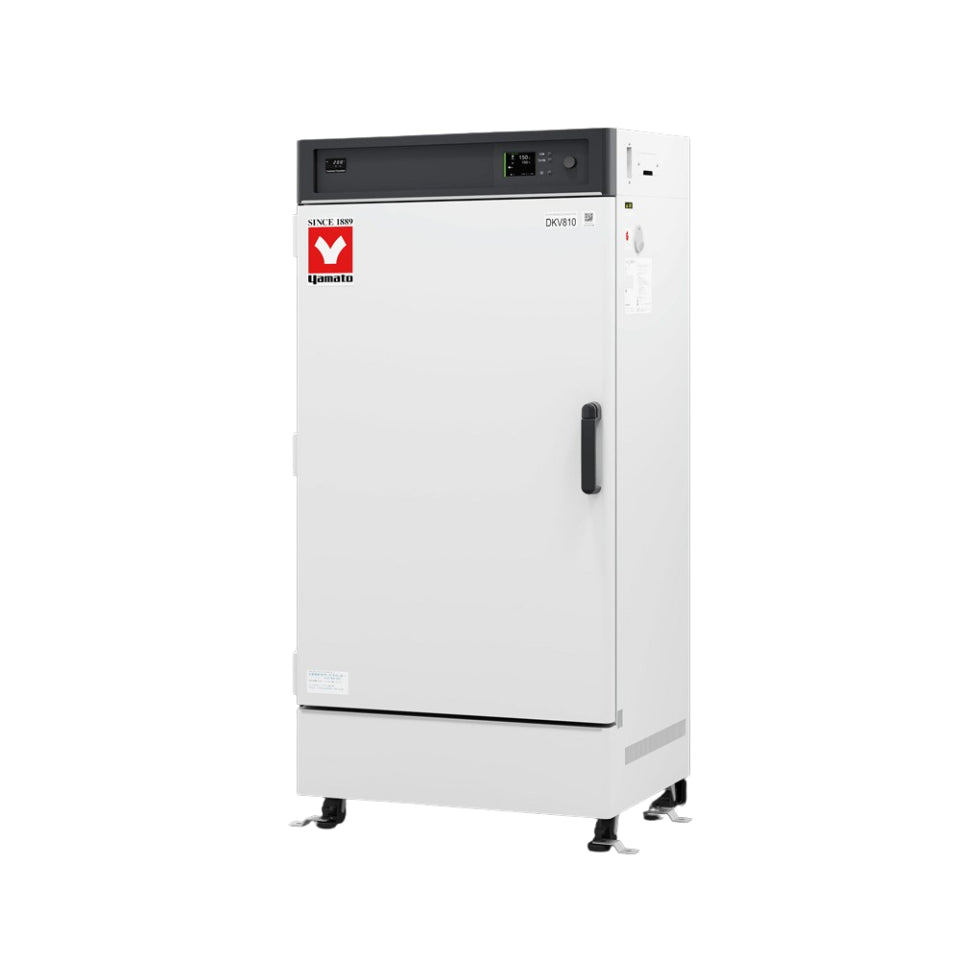

Yamato DKV-810 Programmable Forced Air Convection Oven 300L (220V)
This is the replacement for the Yamato DKN-812C
Product Summary
The first convection oven equipped with a color LCD controller.
Features
- Bestseller based on excellent performance and affordability
- Superior temperature accuracy
- Fixed setting, Quick Auto stop, Auto stop, Auto start, Program operating modes with easy control capabilities
- Increased safety and self-diagnostic functions
- Overheating prevention and calibration off-set are possible with auxiliary functions
- Easy to use and maintain
- Built in exhaust ports.
- Easy-to-Use, Highly Visible Color LCD Controller - VSD-1 (3.5-inch)
- Door hinges with click function
- Specially designed door handle for ovens
- Self-diagnostic functions (Temperature sensor abnormal, Heater disconnection, SSR-short), Automatic overheating prevention, Electric leakage breaker with over current protection, Key lock function
Yamato DKV-810 Specifications
| Model | DKV810 |
| Circulation method | Forced air circulation |
| Ambient operating temp. range | 5 to 35°C |
| Setting temp. range | 0 to 270°C |
| Operating temperature range | Room temp.+10~270°C |
| Temperature gradient | ±0.6°C (at 270°C) |
| Temperature gradient | 11°C (at270°C) |
| Temperature rise speed | 3.4°C/min |
| Max. temp. reaching time | Approx. 75 min |
| Exterior | Chrome-free electrogalvanized steel plate with baked-on coating |
| Interior | Stainless steel plate |
| SUS pipe heater | 2.5kW |
| Cable hole | I.D. 33mm (1 pc., right side) |
| Exhaust port | I.D. 33 mm (2 pcs.,on top) |
| Safety functions | Self-diagnostic function (Automatic overheating prevention, Temperature sensor error, SSR short, heater disconnection, Fan error, Clock element error, Main relay abnormality, Memory abnormality, Internal communication abnormality) / Independent overheating protector / Door switch (door alarm) / Overcurrent leakage breaker / Safety bracket for fall prevention (Model 810-Y/910-Y) |
| Controller Model | Type VSD-1 |
| Temp. control method | PID control by microcomputer |
| Temp. display method | 3.5-inch color LCD |
| Timer/Clock timer | 1 minute to 99 hours and 59 minutes / Date: hour: minute (up to 31 days later) |
| Operation function | Fixed temperature operation ● Quick auto-stop operation / Auto-stop operation / Auto-start operation / Programmed operation (time setting) ● Programmed operation (time setting) |
| Additional functions | Calibration offset function / Power failure return mode selection function / Timer wait function / Security management function / Temperature upper and lower limit alarm function / Fan OFF delay function / Power failure alarm / External communication terminal (RS-485) / Temperature output terminal (4-20mA) / Time-up output terminal / Error output terminal / Recorder terminal / Program preview function / Operation trend function |
| Sensors | Temperature controller / Independent overheating protection: K thermocouple |
| Internal dimensions | W600×D500×H1000mm |
| External dimensions | W730×D685×H1610mm |
| Remarks(dimensions) | 300L |
| Number of shelves/pitch | 29 steps / 30mm |
| Shelf load capacity | 15kg / pc |
| Load capacity total in chamber | 60kg |
| Power Source | AC220V Single-phase 12A (15A) |
| Weight | Approx. 120kg |
| Accessories | Shelf plate/shelf bracket 1 pc. / 2 pcs.,Instruction manual (1 set: 5 sections), Safety bracket for fall prevention (DKV810-Y / 910-Y only) |
