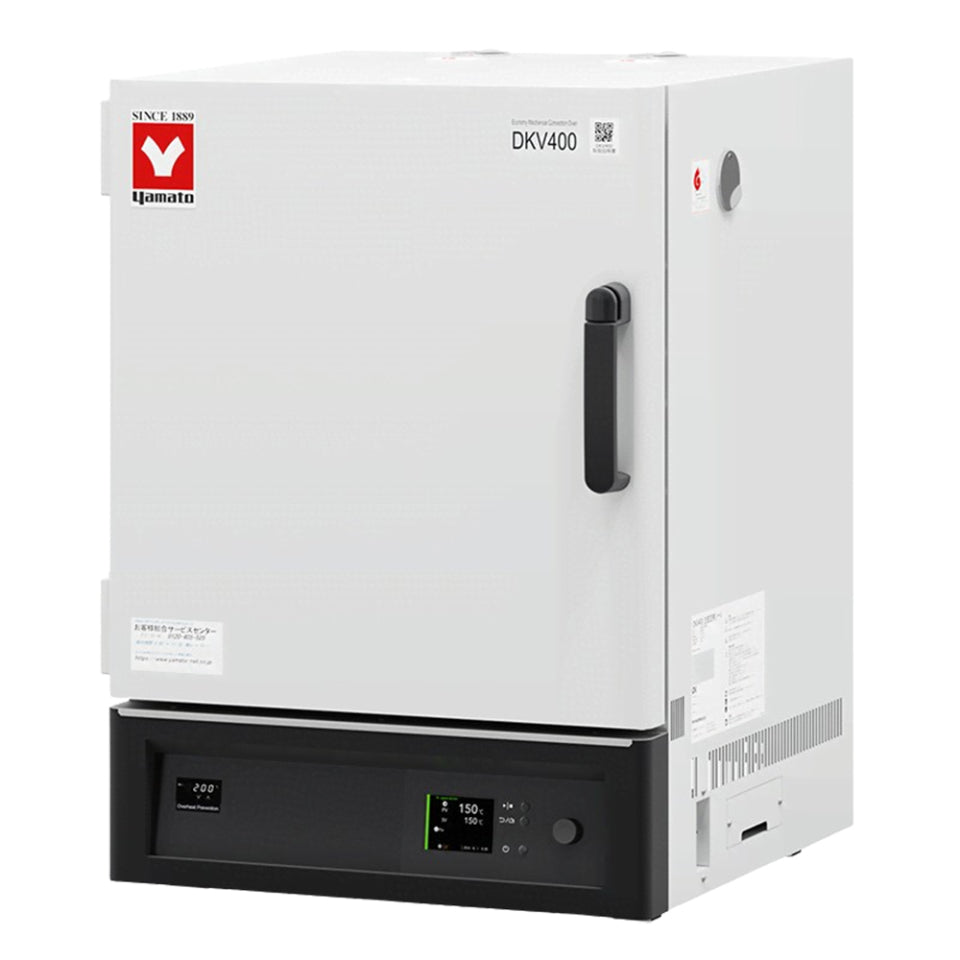

Yamato Programmable Forced Air Convection Oven 90L (115V) | Model DKV-410

Regular price $3,714.50
Regular price Sale $4,370.00 Sale price $3,714.50
CONTACT US: Need help choosing the right microscope, laboratory or medical equipment? Call 919-775-5596 or email info@mundaymicroscope.com

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

International Buyers - Please Request Quote with ship to address

Have questions or need Faster Shipping? Call 919-775-5596

Tax exempt? Please email your tax exemption certificate to info@mundaymicroscope.com.

Product Overview

Yamato Programmable Forced Air Convection Oven 90L (115V) | Model DKV-410 from Yamato Scientific. Review the model-specific product details and specifications below.

Yamato DKV-410 Programmable Forced Air Convection Oven 90L (220V)

This is the replacement for the Yamato DKN-402C

Product Summary

The first convection oven equipped with a color LCD controller.

Features

  • Bestseller based on excellent performance and affordability
  • Superior temperature accuracy
  • Fixed setting, Quick Auto stop, Auto stop, Auto start, Program operating modes with easy control capabilities
  • Increased safety and self-diagnostic functions
  • Overheating prevention and calibration off-set are possible with auxiliary functions
  • Easy to use and maintain
  • Built in exhaust ports.
  • Easy-to-Use, Highly Visible Color LCD Controller - VSD-1 (3.5-inch)
  • Door hinges with click function
  • Specially designed door handle for ovens
  • Self-diagnostic functions (Temperature sensor abnormal, Heater disconnection, SSR-short), Automatic overheating prevention, Electric leakage breaker with over current protection, Key lock function

Yamato DKV-410 Specifications

Model DKV410
Circulation method Forced air circulation
Ambient operating temp. range 5 to 35°C
Setting temp. range 0 to 270°C
Operating temperature range Room temp.+10~270°C
Temperature gradient ±0.6°C (at 270°C)
Temperature gradient 9°C (at270°C)
Temperature rise speed 4.4°C/min
Max. temp. reaching time Approx. 55 min
Exterior Chrome-free electrogalvanized steel plate with baked-on coating
Interior Stainless steel plate
SUS pipe heater 1.5kW
Cable hole I.D. 33mm (1 pc., right side)
Exhaust port I.D. 33 mm (2 pcs.,on top)
Safety functions Self-diagnostic function (Automatic overheating prevention, Temperature sensor error, SSR short, heater disconnection, Fan error, Clock element error, Main relay abnormality, Memory abnormality, Internal communication abnormality) / Independent overheating protector / Door switch (door alarm) / Overcurrent leakage breaker / Safety bracket for fall prevention (Model 810-Y/910-Y)
Controller Model Type VSD-1
Temp. control method PID control by microcomputer
Temp. display method 3.5-inch color LCD
Timer/Clock timer 1 minute to 99 hours and 59 minutes / Date: hour: minute (up to 31 days later)
Operation function Fixed temperature operation ● Quick auto-stop operation / Auto-stop operation / Auto-start operation / Programmed operation (time setting) ● Programmed operation (time setting)
Additional functions Calibration offset function / Power failure return mode selection function / Timer wait function / Security management function / Temperature upper and lower limit alarm function / Fan OFF delay function / Power failure alarm / External communication terminal (RS-485) / Temperature output terminal (4-20mA) / Time-up output terminal / Error output terminal / Recorder terminal / Program preview function / Operation trend function
Sensors Temperature controller / Independent overheating protection: K thermocouple
Internal dimensions W450×D450×H450mm
External dimensions W580×D635×H830mm
Remarks(dimensions) 90L
Number of shelves/pitch 11 steps / 30mm
Shelf load capacity 15kg / pc
Load capacity total in chamber 30kg
Power Source AC220V Single-phase 7.5A (10A)
Weight Approx. 65kg
Accessories Shelf plate/shelf bracket 1 pc. / 2 pcs.,Instruction manual (1 set: 5 sections), Safety bracket for fall prevention (DKV810-Y / 910-Y only)
