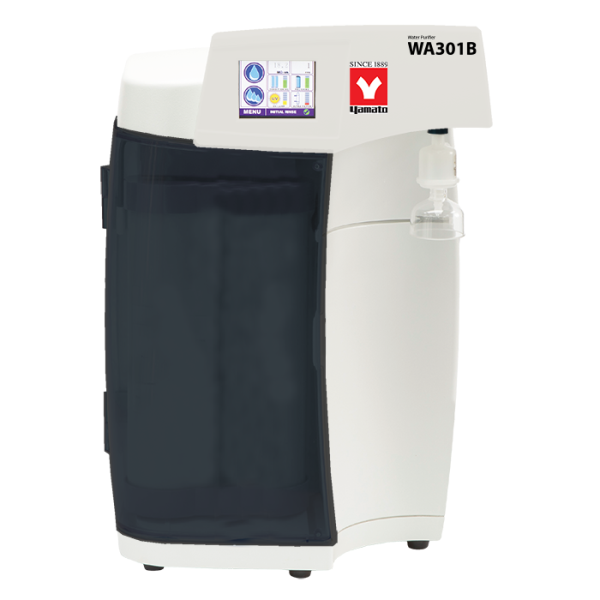

Yamato Remote Dispense Configuration Base System, 120V/60Hz WA-301R
Water is purified using a stage purification process which includes high-purity ion exchange resins to remove dissolved minerals and internal recirculation to maintain purity. As water exits the system, a final filter removes particulates and bacteria to reach Type I water specifications.
Features
- Made in USA
- Low-cost of Ownership
- Compact design
- Quick change, cartridge – no tools needed
- 2.5 LPM* of 18 MΩ Type 1 reagent water on demand
- Intuitive, user-friendly touch screen interface
- Real time quality monitoring with leak detection
- Premium quality ion exchange resin
- Large capacity, low cost consumable cartridges
- Replacement cartridges are fresh and made in the USA. 1 year shelf life.
Applications
- General Chemistry
- Buffer Solutions
- Academia
WA Series Configuration
- Conditioning cartridge
- Polishing cartridge
- 0.2 micron filter
Specifications
| Type | Remote dispense | |
| Resistivity* | 18.2 MΩ-cm | |
| Bacteria* | < 1 cfu/ml | |
| Particulates* | < 0.2 μm filtration | |
| TOC* | < 15 ppb | |
| Temperature | 100˚F / 30˚C | |
| Pressure | 90 PSIG Max. / 20 PSIG Min. | |
| Flow Rate (Typical) | 0.67 Gallons Per Minute / 2.5 Liters Per Minute < 2.0 LPM with Ultrafilter & Endotoxin filter installed |
|
| Inlet Connection | 3/8” O.D. Tubing / 9.53 mm O.D. Tubing | |
| Dimensions (H X W X D) | 21.6 in. x 14.7 in. x 14.4 in. (54.8 cm x 37 cm x 36.5 cm) | |
| Weight | 42 lbs. dry / 47 lbs. operating (22.7 kg dry / 25 kg operating) | |
| Power Requirements | 120V, 60 Hz @ 1.0 amp / 220V, 50 Hz @ 0.5 amp | |
This product ships directly from Yamato, ensuring fast delivery, proper handling, and factory quality. When you purchase Yamato, you’re backed by a trusted name in laboratory equipment—known for precision, reliability, and dependable support. Shop with confidence knowing your order is fulfilled directly by the manufacturer.
