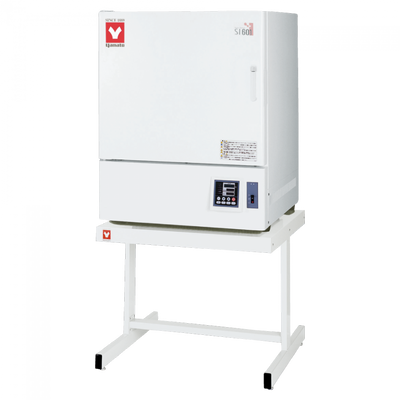

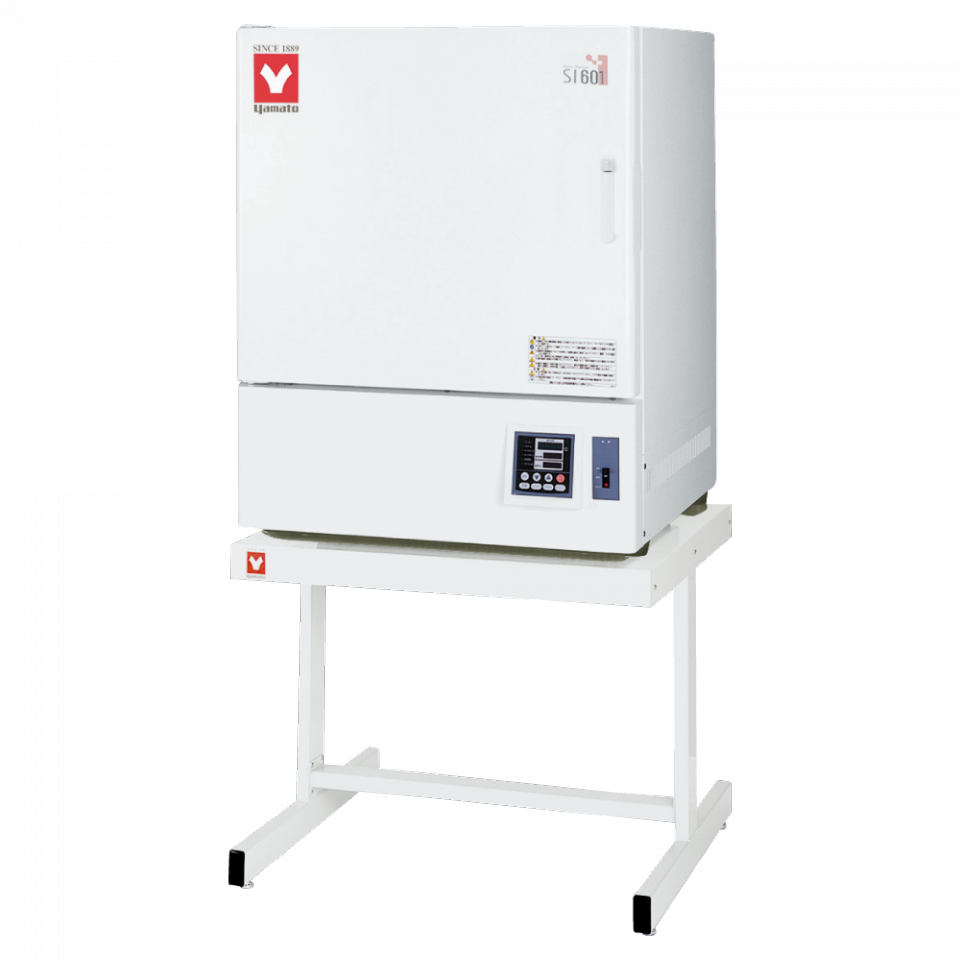

Yamato SI-601 Natural Convection Dry Sterilizer 159 Liter
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
Yamato SI-601 Natural Convection Dry Sterilizer 159L, 115V/220V 50/60Hz
Programmable natural convection laboratory dry sterilizers
Operation and functions
- Improved temperature controller with better operability
- Digital setting by main menu and ▲▼ keys for fixed temperature, program, quick auto stop, auto stop and auto start operations
- Standard equipped with calibration off-set, lock function, power failure recovery mode
- Programmable with maximum 30 steps, 6 patterns, repeat operation
- Increased Safety Features
- Standard equipped with self diagnostic functions, earth leakage breaker and overheat prevention device
Specifications
| Circulation Method | Natural convection dry laboratory sterilizers |
| Operating Temp. Range* | Room temp. +5~260°C |
| Temp. Adjustment Accuracy | 2°C (at 260°C) |
| Temp. Distribution Accuracy | 20°C (at 260°C) |
| Max. Temp. Reaching Time | ~70min. |
| Interior / Exterior | Stainless steel / Chrome free electrogalvanized carbon steel sheet coated with chemical-proof baked-on finish |
| Heater | Iron chromium wire heater / 1.36kW |
| Sensor | K type Thermocouple |
| Exhaust Port | I.D.30 mm x 2 (top) |
| Temp. Controller | PID control |
| Temp. Display | Measured temp. display: green 4 digit LED digital display / Setting temp. display: red 4 digit LED digital display |
| Timer | 1 min~99hr 59 min and 100~999 hrs 30 min. (with timer wait function) |
| Operation Function | Fixed temperature, quick auto stop, auto stop, auto start, program (6 pattern: 30 steps x 1, 15 steps x 2, 10 steps x 3, pattern repeat function) |
| Additional Functions | Lock function, auto recovery after power failure, calibration off-set |
| Safety Device | Self diagnostic functions (temp. sensor failure, heater disconnection, SSR short circuit, memory error, internal communication error, measurement temperature error, automatic overheat prevention), overheat prevention device, earth leakage breaker |
| Internal Dimensions WxDxH | 600 x 530 x 500 mm |
| External Dimensions WxDxH | 700 x 640 x 877 mm |
| Internal Capacity | 159L |
| Shelf Plate With Standard Load | ~15 kg/pc. |
| Shelf Rest Step Number / Pitch | 13 steps / 30 mm |
| Power Source (50/60Hz) | AC115V 11.8A (with plug) |
| Weight | ~59 kg |
| Shelf Plate Material | Stainless punching metal |
| Shelf Plate / Bracket | 2pcs./4pcs. (bottom one is screwed) |
This product ships directly from Yamato, ensuring fast delivery, proper handling, and factory quality. When you purchase Yamato, you’re backed by a trusted name in laboratory equipment—known for precision, reliability, and dependable support. Shop with confidence knowing your order is fulfilled directly by the manufacturer.
