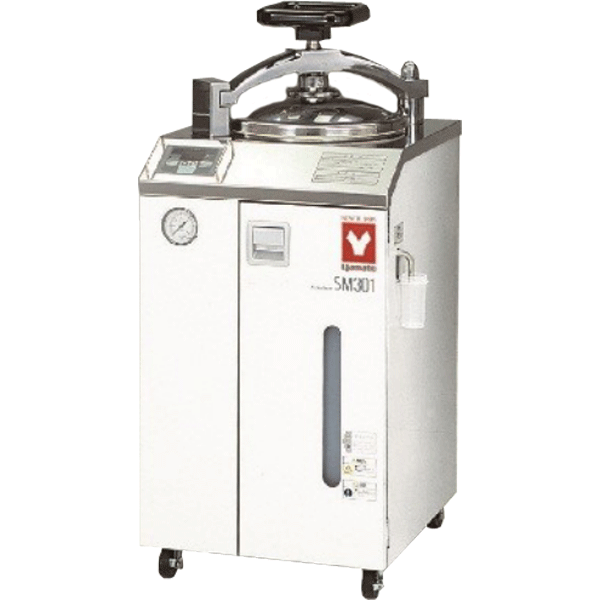

Yamato SM-311 Standard Steam Sterilizer With Dryer 32L (220V)
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
Yamato SM-311 Standard Steam Sterilizer With Dryer, 32L 220V 17.5A 50/60Hz
High performance, fully automatic sterilization from start to finish with high pressure steam sterilization and drying steps
Operation and functions
- Automatic operations from sterilization to drying carried out with an interactive key input system
- Quick sample drying capability makes samples ready to use right after sterilization
- Drying temperature can be set according to sample material, quantity, etc.
- Timer range from 1~999 hours
- Drain bottle water level can be quickly confirmed on the front panel level indicator
- Drain valve located in front for easy access
- Absence of protrusions in sterilization chamber makes insertion & removal of baskets, and other items quick and easy
- Self-diagnostic functions make operation safer and error recovery quicker
- Condensation collector neutralizes high temperature exhaust steam safely
Specifications
| System | Automatic high pressure steam sterilization |
| Operating Temperature Sterilization | 105 to 128°C |
| Operating Temperature Drying | 150 to 180°C |
| Maximum Pressure Capacity | 0.2MPa |
| Interior | Stainless steel |
| Heater Sterilization | 1.7kW |
| Heater Drying | 1.5kW |
| Temp. Controller | PID control by microprocessor |
| Temp. Display | Digital display by green LED and setting via ▲▼ keys |
| Timer / Timer Resolution | 1 min. ~ 99 hrs. and 59 min. 100~ 999 hrs. / 1 min. or 1 hr. |
| Safety Device | Self-diagnostic functions (detection sensor error, SSR short circuit, heater disconnect, faulty main relay, dry operation), safety valve, electric leakage breaker, drain bottle set-fail switch |
| Internal Dimensions | 300 x D445 mm |
| External Dimensions WxDxH | 440 x 530 x 968 mm |
| Internal Capacity | 32L |
| Power Source (50/60Hz Single Phase) | AC115V 17.5A (no plug, round terminal) AC220V 9.5A (no plug, round terminal) |
| Weight | ~80kg |
| Accessories | 2 pcs. stainless steel mesh basket (⌀262 x D204 mm), OSM-70 |
This product ships directly from Yamato, ensuring fast delivery, proper handling, and factory quality. When you purchase Yamato, you’re backed by a trusted name in laboratory equipment—known for precision, reliability, and dependable support. Shop with confidence knowing your order is fulfilled directly by the manufacturer.
