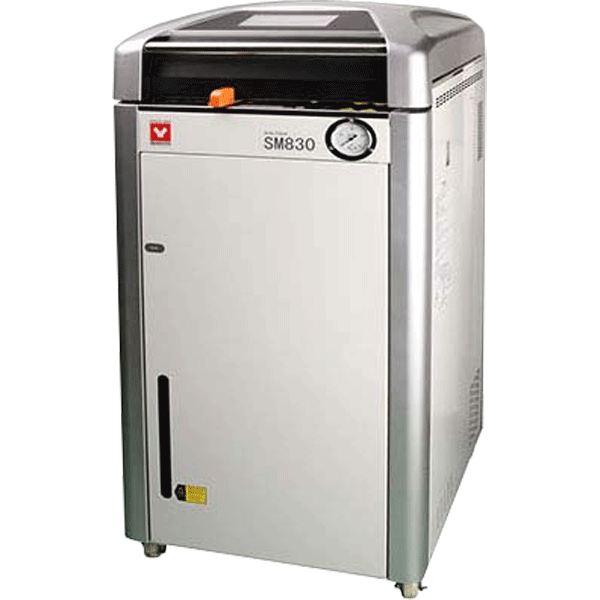

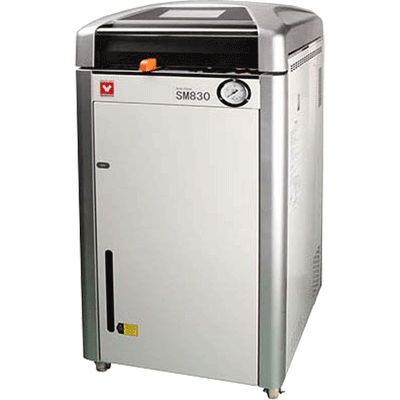

Yamato SM-830 Large Capacity Steam Sterilizer With Dryer, 80L 200-240V 50.5-24.5A 50/60Hz
Large capacity, high performance, fully automatic sterilization from start to finish with high pressure steam sterilization and drying steps
Operation and functions
- Interactive keypad input (touch panel) allows committing sterilization settings (time & temperature) to memory
- 7" interactive touch screen
- Suitable for protein modification at the maximum operating temperature of 135°C
- Easy settings and operation modes for a multitude of sterilization process
- Increased safety and function list including forced cooling and memory functions
- Equipped with multiple safety locking mechanism for the lid
- Comes with large capacity (11L) heat resistant stainless steel container
- Alarm buzzer sounds when high or low pressure error occurs
Specifications
| System | Automatic high pressure steam sterilization |
| Operating Temperature | Sterilize 105 to 135°C, Liquefy 60 to 110°C, Retain 45 to 60°C, Preheat 45 to 80°C, Dry 135 to 150°C |
| Operating Ambient Temp. | 5 to 35°C |
| Maximum Pressure Capacity | 0.255MPa |
| Heating | Sterilize Pipe 1000W ×2, Drying Pipe 110V/275W ×2, 110V/625W ×2 |
| Temp. Controller | PlD controlled by microprocessor |
| Temp. Setting / Display | Touch panel |
| Timer / Timer Resolution | Range: 0 or 1min to 99h59min / 1 min. |
| Safety Device | Sterilize sensor error, sterilize SSR short circuit, dry sensor error, dry SSR short circuit, sterilize heater disconnection, dry heater disconnection, water level detection (liquid expansion method), independent chamber overheat protection, cover unlock error, chamber over pressure protection, under pressure protection, warning about setting error in cooling water container, memory error, pressure switch (0.25MPa), pressure safety valve (0.255MPa) |
| Internal Dimensions | 370 x D750 mm |
| External Dimensions WxDxH | 520 x 660 x 116 mm |
| Internal Capacity | 80L |
| Power Source (50/60Hz) | AC100-120V (no plug, round terminal) , Sterilize current 25-21A , Dry current 15.0A |
| Weight | ~137kg |
| Included Items | 3 pcs. stainless steel mesh basket (⌀332 x D195.5 mm) OSQ-90, Drain board x 1, drain bottle x 1, chemical indicator 1 set, filter x 1, droplet tray x 1 |
This product ships directly from Yamato, ensuring fast delivery, proper handling, and factory quality. When you purchase Yamato, you’re backed by a trusted name in laboratory equipment—known for precision, reliability, and dependable support. Shop with confidence knowing your order is fulfilled directly by the manufacturer.
