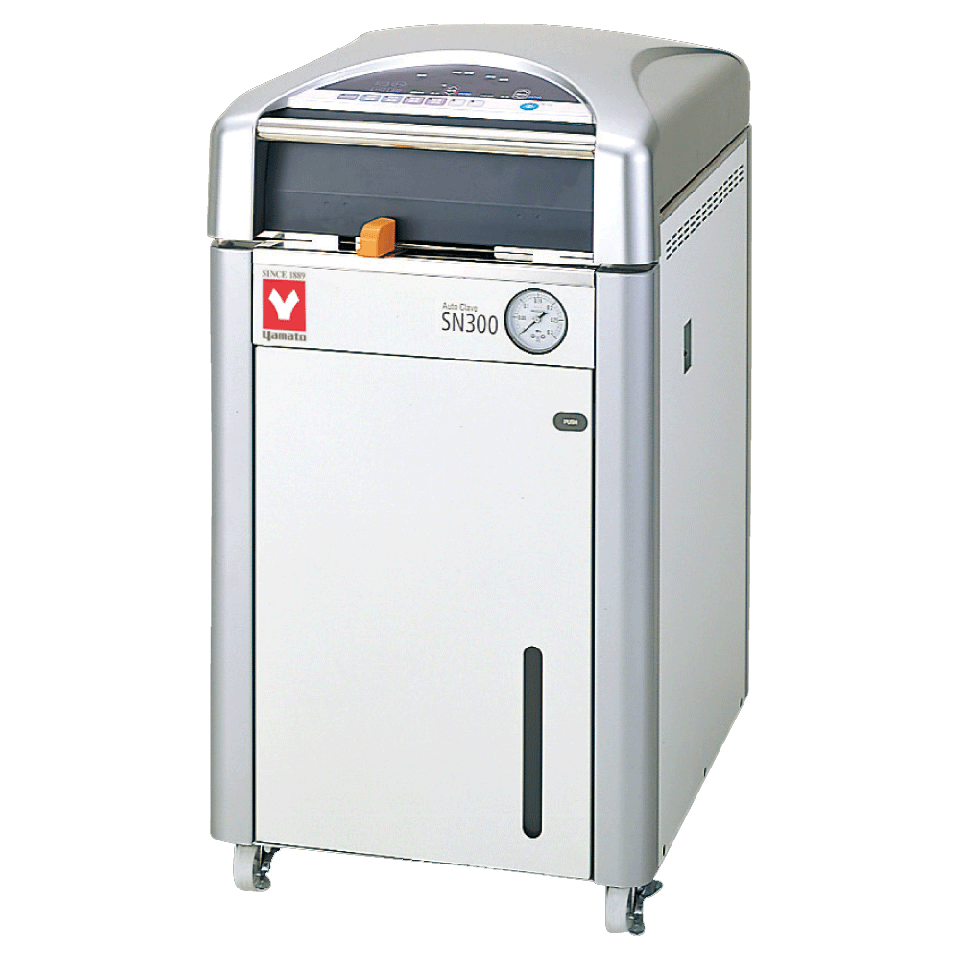

Yamato SN-310C Standard Steam Sterilizer Without Dryer 32L (200-240V)
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
Product Overview
The Yamato SN-310C is a 32-liter steam sterilizer without an integrated dryer, listed for 200–240V electrical service. Review chamber dimensions, sterilization cycles, and utility requirements below.
High performance, easy operation and ergonomically designed sterilizers featuring easy top loading and handling of samples
Operation and functions
- Maximum sterilizing temperature goes up to 135°C suitable for protein modification
- By simple setting and operation, these sterilizers manage ordinary sterilization, sterilization of culture mediums and liquids, and melting of culture mediums
- Custom programs can be saved for repeated use
- Standard equipped with timer start and pre-heating features for efficient use of time and cooling fan to shorten cool down time
- Mobile on wheels
Safety Features
- Lid interlock mechanism
- Drain bottle unset alarm
- Memory malfunction
- Automatic shutdown when malfunction
- Self-diagnostic functions
Technical Specifications
| Item Code | 241055 |
| Model | SN310 |
| System | Automatic high-pressure steam sterilization |
| Operating temperature range | 45～135℃ 45～80℃（Preheating temperature）/45～60℃（Heat-retention process）/65～100℃（Solution process）/105～135℃（Sterilization） |
| Max. working pressure | 0.255MPa |
| Ambient temperature | 5～35℃ |
| Lid | Manual upward opening with an interlock for safety |
| Heater | 100V, 800W×2 units |
| Exhaust valve | One exhaust valve and one slow release valve |
| Connection ports for optional accessories | Total 3 ports. Female thread for sample temp. sensor (1/4" ), Female thread for chamber temp. sensor (1/4" ), Female thread pressure sensor (Branching from the solenoid valve tubing) |
| Cooling fan | Axial fan motor |
| Temp. controller | PID control by microprocessor |
| Temp. display / setting | Digital display / digital setting by ▲/▼ keys |
| Timer / Timer resolution | 0 or 1 min. to 99 hrs 59 min. / 1 min. |
| Operation mode | Instrument sterilization course, Liquid sterilization course, Sterilization and keep warm course, Melting and keep warm course, Customer-programmed course |
| Other function | Key locking, Presetting, Saving, Preheating, Forced cooling, Sample temperature sensor (option), Pattern locking, Up to 20 error log saving, Display of accumulated working time / Present time, ON-OFF beeping setting |
| Safety device | Sensor failure detection, SSR short-circuit, Broken heater wire, Prevention of idle heating (Liquid expansion type), Alarm against the absence of a drain bottle, Failure in locking the lid, Memory error detection, Pressure relief valve (0.255 MPa) |
| Accessories | 2 pcs. stainless steel mesh basket (Dia.262×D204mm), OSM-70/Vapor cup×1, Drain bottle×1, Drain board×1, Chemical indicator 1 set (30 pieces), Filter×1 |
| Internal dimensions（W×H mm） | 300×445mm |
| External dimensions（W×D×H mm） | 460×590×848mm |
| Remarks(dimensions) | Internal capacity 32L |
| Power Source | AC200～240V Single phase |
| Weight | 75kg |
This product ships directly from Yamato, ensuring fast delivery, proper handling, and factory quality. When you purchase Yamato, you’re backed by a trusted name in laboratory equipment—known for precision, reliability, and dependable support. Shop with confidence knowing your order is fulfilled directly by the manufacturer.
Applications and Product Selection
Confirm capacity, electrical requirements, operating conditions and availability before ordering.
Questions About This Yamato Product?
Contact Microscope Marketplace for help selecting laboratory equipment.
Manufacturer Resources
See the Yamato operation manuals and official Yamato website. For product selection and ordering, contact Microscope Marketplace.
Manufacturer Documentation
For technical and installation guidance, consult Yamato Scientific's official operation manual library. Match the exact model before using any manual.
