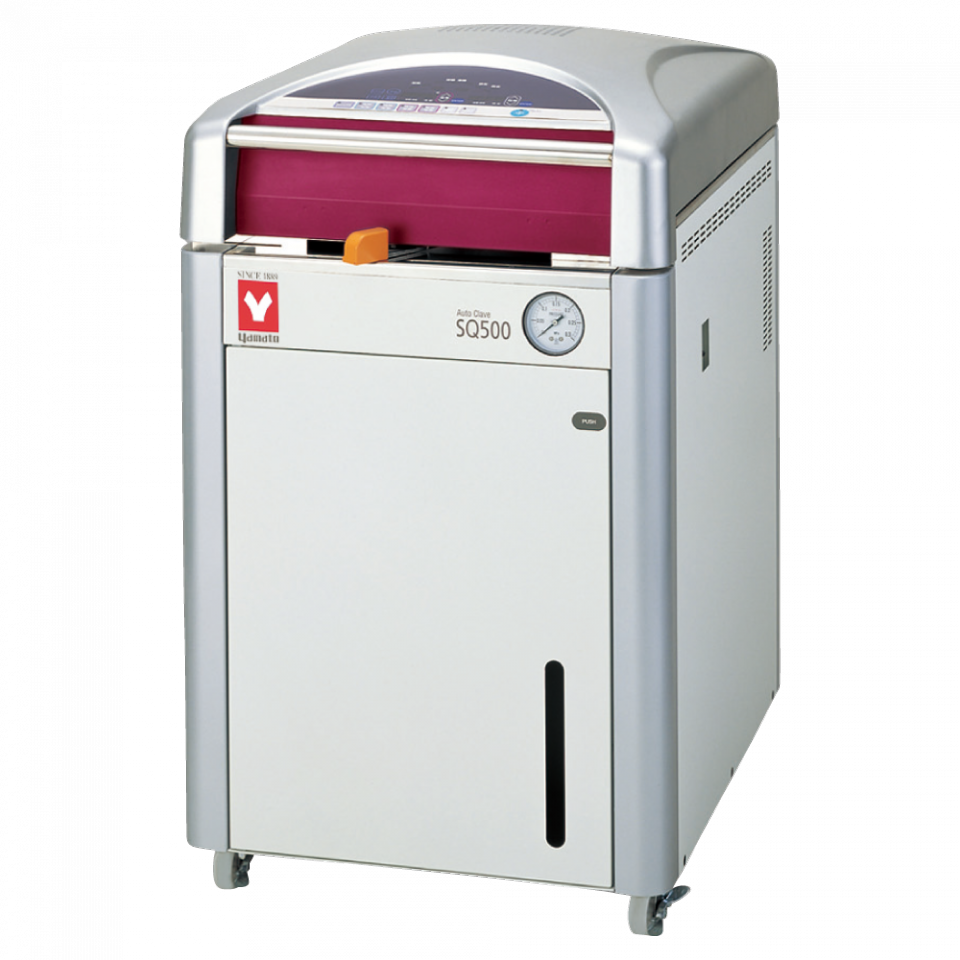

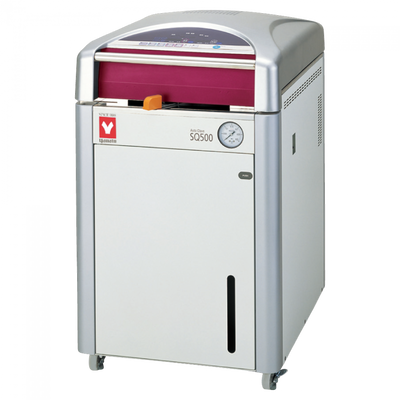

Yamato SQ-510C Large Capacity Steam Sterilizer Without Dryer 50L (220V)
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
Yamato SQ-510C Large Capacity Steam Sterilizer Without Dryer, 50L 200-240V 20.5-24.5A 50/60Hz
High performance, easy operation and ergonomically designed sterilizers featuring easy top loading and handling of samples
Operation and functions
- Maximum sterilizing temperature goes up to 135°C suitable for protein modification
- By simple setting and operation, these sterilizers manage ordinary sterilization, sterilization of culture mediums and liquids, and melting of culture mediums
- Custom programs can be saved for repeated use
- Standard equipped with timer start and pre-heating features for efficient use of time and cooling fan to shorten cool down time
- Mobile on wheels
Increased Safety Features
- Lid interlock mechanism
- Drain bottle unset alarm
- Memory malfunction
- Automatic shutdown when malfunction
- Self-diagnostic functions
Specifications
| System | Automatic high-pressure steam sterilization |
| Operating Temp. Range | 45~135°C |
| Max. Working Pressure | 0.255MPa |
| Ambient Temperature | 5~35°C |
| Lid | Manual upward opening with an interlock for safety |
| Heater | 1000W x 2 units |
| Exhaust Valve | One exhaust valve and one slow release valve |
| Connection Ports For Optional Accessories | Total 3 ports. Female thread for sample temp. sensor (1/4" ), Female thread for chamber temp. sensor (1/4" ), Female thread pressure sensor (branching from the solenoid valve tubing) |
| Cooling Fan | Axial fan motor |
| Temp. Controller | PID control by microprocessor |
| Temp. Display / Setting | Digital display / digital setting by ▲▼ keys |
| Timer / Timer Resolution | 0 or 1 min. to 99 hrs 59 min. / 1 minute |
| Operation Mode | Instrument sterilization course, liquid sterilization course, sterilization and keep warm course, melting and keep warm course, customer-programmed course |
| Other Features | Key locking, presetting, saving, preheating, forced cooling, sample temperature sensor (option), pattern locking, up to 20 error log saving, display of accumulated working time / present time, ON-OFF beeping setting |
| Safety Device | Sensor failure detection, SSR short-circuit, broken heater wire, prevention of idle heating (liquid expansion type), alarm against the absence of a drain bottle, failure in locking the lid, memory error detection, pressure relief valve (0.255 MPa) |
| External Dimensions | 520 x 660 x 881 mm WxDxH |
| Internal Dimensions Of Chamber | ø370 x D470 mm |
| Internal Capacity | 50L |
| Weight | ~95kg |
| Power Source | AC100~120V (24.5~20.5A) (no plug, round terminal) AC200~240V (12.5~10.5A) (no plug, round terminal) |
| Accessories | 2 pcs. stainless steel mesh basket (ø332xD195.5mm), OSQ90 |
