Product Overview

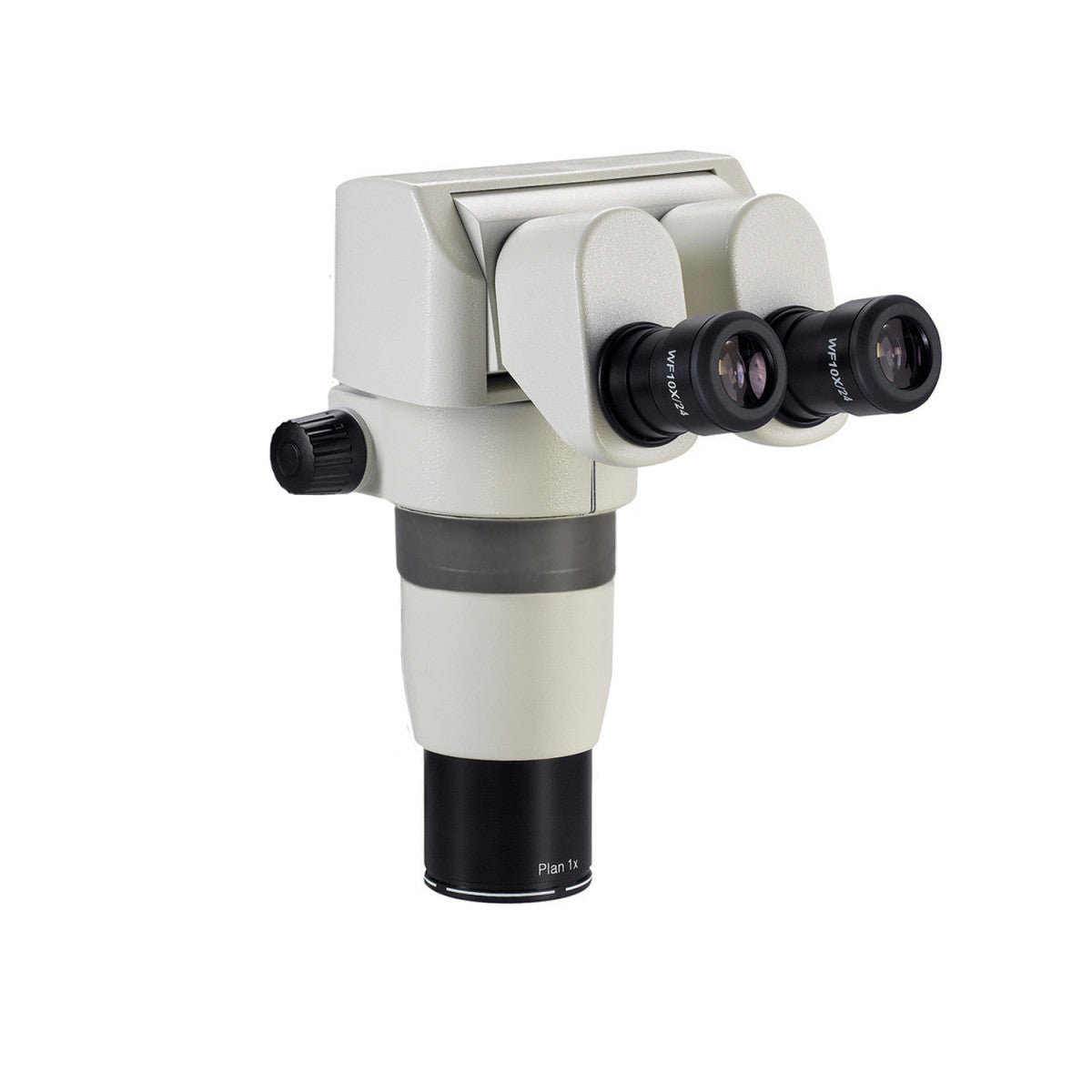

Unitron Z10 Ergonomic Binocular Zoom Stereo Microscope is a UNITRON stereo microscope configuration designed for detailed observation and inspection. The modular common-main-objective optical system supports high-resolution stereo observation for inspection, assembly and research. This listing's stand and viewing-head configuration are described in the technical specifications below.

Key Features

• Zoom: 0.8×–8.0×
• Magnification with 10× eyepieces: 8×–80×
• Working distance: 78 mm
• Viewing head: 0–35° ergonomic binocular
• Objective: 1× Plan Achromat

What Can This Microscope Be Used For?

• Long-duration inspection where adjustable viewing angle improves ergonomics
• Medical device and electronics inspection
• Precision assembly and quality control
• Research and OEM integration

Technical Specifications

Compatibility & Ordering

Check the selected head, stand, illumination and camera-adapter options before ordering. Microscope Marketplace can assist with choosing the appropriate configuration and accessories.

Manufacturer Resources

UNITRON official microscope information

Additional Product Details

The UNITRON Z10 Series is a modular system designed to deliver exceptional ergonomic and optical performance. The Z10 Series is an ideal choice for medical device manufacturer’s, industrial inspection and assembly, quality control, OEM integration and research applications.

Users can select either an ergo tilting binocular head with an adjustable viewing angle of 0° – 35° for true fatigue-free viewing, or a binocular head with a 20° angle and extended eyetubes for maximum viewing comfort. All systems can easily add a photo port/beam splitter for attaching a camera to enable image capture or output to a video monitor.

The Z10 Series offers a high depth of focus and resolution up to 289 lpm. Systems can be configured with a 10:1 (Z10), 8:1 (Z8) or a 6.3:1 (Z6) zoom ratio providing flexibility and value.

If you would like to add a camera to your system we have lots of options here

Specifications

• Ergonomic binocular viewing head, 0-35° tilting
• Widefield 10x/24mm focusing eyepieces
• 0.8x to 8.0x zoom magnification range
• 10:1 Zoom Ratio
• Magnification Range 8x to 80x (with 10x eyepieces)
• Variable Zoom Magnification System with Parallel optical axis (Galilean optical system; Common Main Objective)
• Interpupillary Distance Adjustment 51mm – 75mm
• Click-stops at 1, 2, 3, 4, 5, 6, 7 and 8x positions
• 1x Plan Achromat objective (N.A. 0.09); 0.3x, 0.5x, 2.0x optional
• 78mm working distance
• Airtight and anti-mold design
• NOTE: All photos shown with optional stands, illumination and accessories
• Shipping size 17x13x11 inches
• Shipping weight 8lbs.
