Product Overview

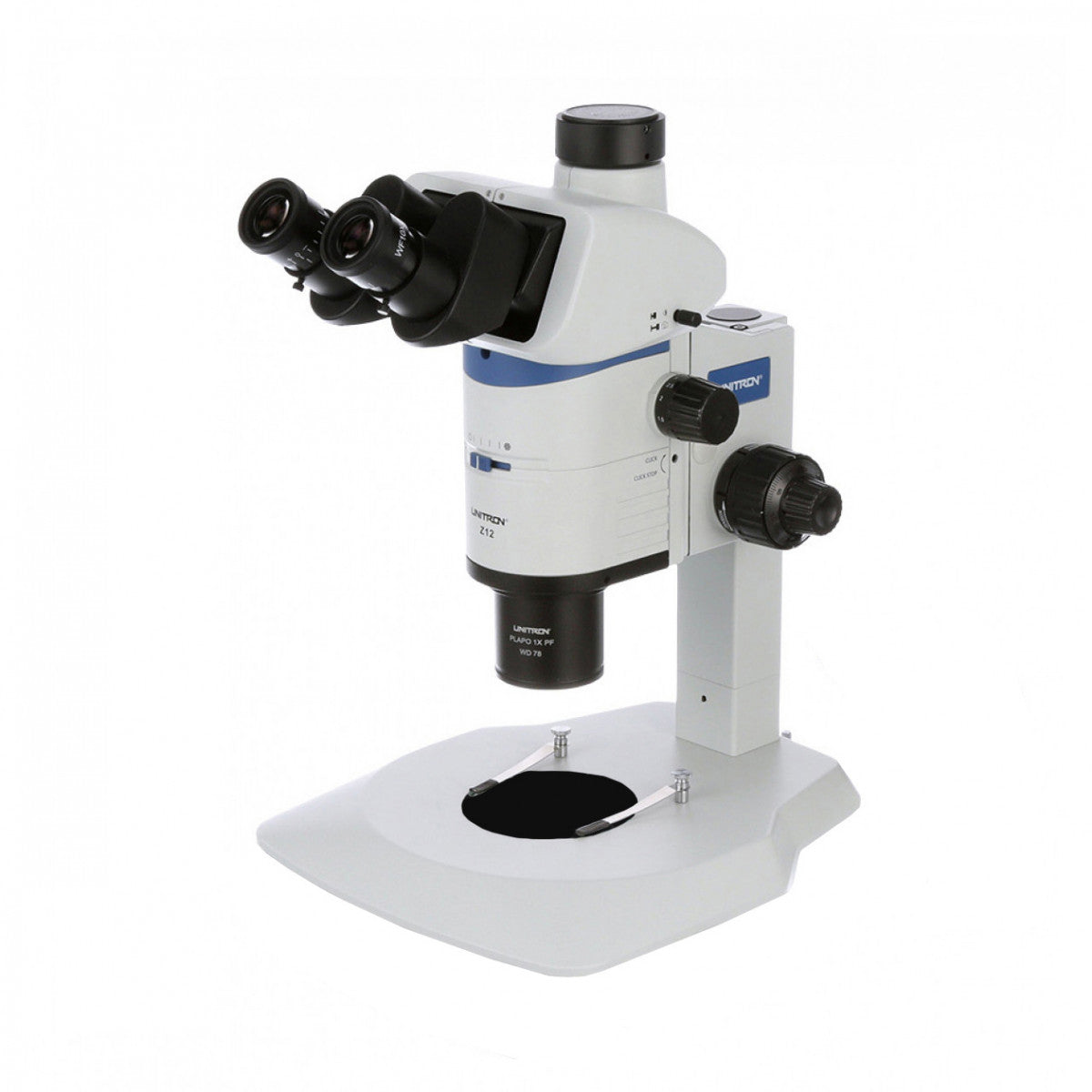

Unitron Z12 Zoom Stereo Microscope on Plain Stand is a UNITRON stereo microscope configuration designed for detailed observation and inspection. The Z12 common-main-objective optical design offers a 12.5:1 zoom ratio and is suited to demanding laboratory and industrial work. This listing's stand and viewing-head configuration are described in the technical specifications below.

Key Features

• Zoom: 0.63×–8×
• Magnification with 10× eyepieces: 6.3×–80×
• Working distance: 78 mm
• Stand: Plain focusing stand

What Can This Microscope Be Used For?

• Electronics and small-parts inspection with separate appropriate illumination
• Precision assembly and quality control
• Research specimen observation
• Camera-based stereo microscopy with compatible accessories

Technical Specifications

Compatibility & Ordering

Check the selected head, stand, illumination and camera-adapter options before ordering. Microscope Marketplace can assist with choosing the appropriate configuration and accessories.

Manufacturer Resources

UNITRON official microscope information

Additional Product Details

The new Z12 zoom stereo microscope from UNITRON features a Common Main Objective design, a 12.5:1 zoom ratio and a massive 6.3X to 320X magnification range.

The Z12 includes many features typically found in higher priced microscopes. Three new stands suit the most demanding applications: plain focusing stand, transmitted light base with sliding/tilting mirror, and a slim profile LED transmitted light base. The color-balanced LED light sources give bright illumination to the specimen, and are highly cost effective (low energy consumption and long lifespans). A 5°-45° tilting trinocular observation head offers ergonomic viewing comfort that is customizable to the observer. Its apochromatic objectives deliver crisp color reproduction and high resolution of fine structures, and the trinocular port is ready to accept a digital microscopy camera for imaging. Click-stop zoom positions allow the observer to quickly return to a specific magnification setting, thus saving time and increasing reproducibility.

The Z12 addresses a wide variety of applications from assembly and quality control in the industrial markets, to stem cell and embryo selection in the life sciences. The new UNITRON Z12 delivers both performance and high-end features at a value-conscious price point.

Specifications

• CAT# 11200-T: Trinocular viewing head, fixed incline to 30° 50/50 viewing split eyepieces/camera port; use camera port and both eyepieces simultaneously

•  CAT# 11200-TE: Ergonomic tilting trinocular viewing head, 5° – 45° adjustable, 0:100 or 100:0 viewing split to eyepieces/camera port

• Plan 10x/23mm FOV focusing eyepieces with built-in diopter adjustment and roll-down eyeguards (eyepiece accepts a 26.5mm reticle)

•  0.63x - 8x zoom magnification range

• 12.5:1 zoom ratio

•  Magnification range 6.3x – 80x (with 10x eyepieces)

• Variable Zoom Magnification System with Parallel optical axis with iris (Galilean optical system; Common Main Objective)

•  52mm – 75mm interpupillary distance adjustment

• 1.0x semi-Apochromatically corrected common main objective (N.A. 0.1, W.D. 78mm)

•  Click-stops at 0.63, 1.0, 1.5, 2.5, 3, 4, 5, 6 and 8x positions

• Working distance 78mm with included 1.0x semi-Apo objective

• Plain focusing stand with Coaxial focusing arm and 100mm black and white stage plate
