Product Overview

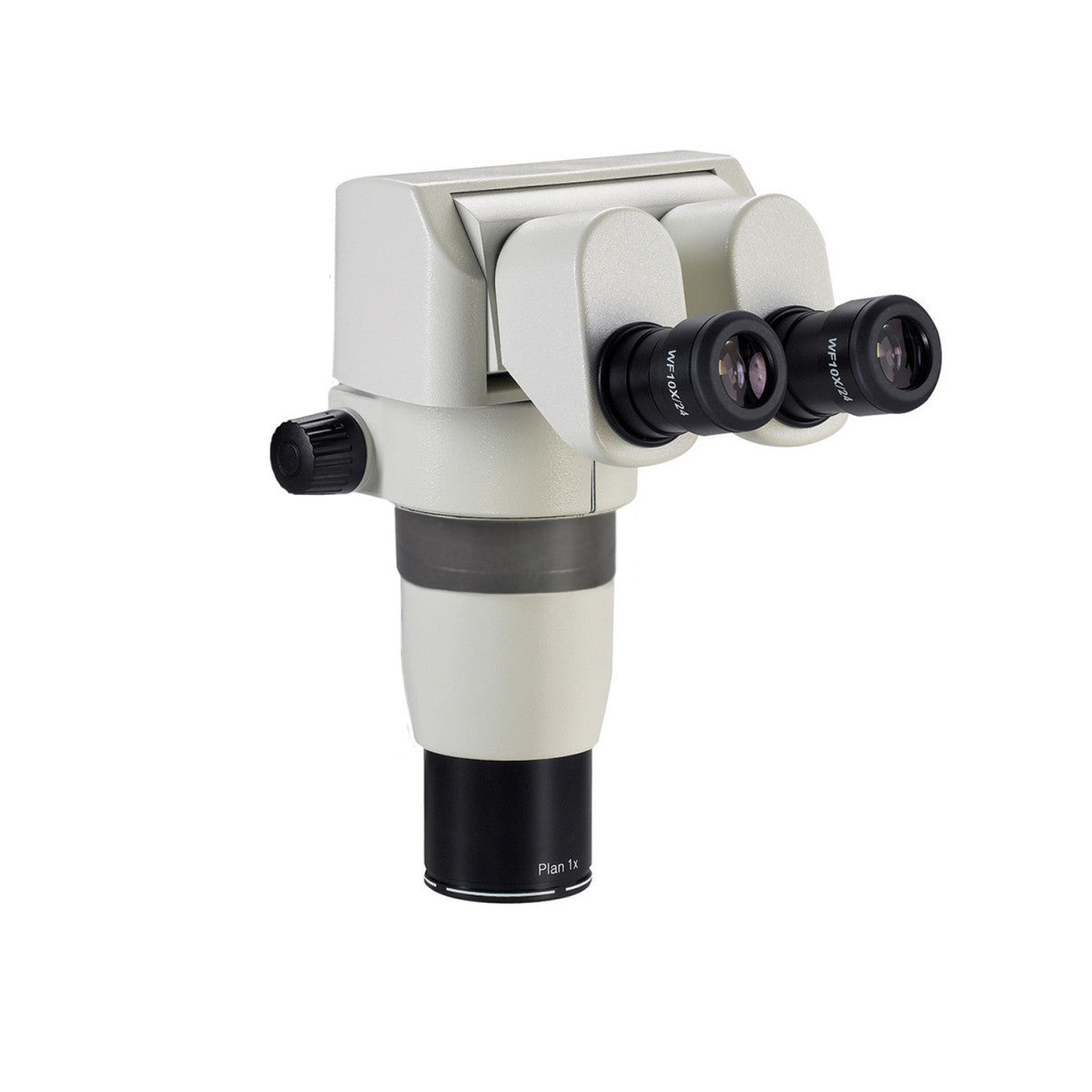

Unitron Z6 Ergonomic Binocular Zoom Stereo Microscope is a UNITRON stereo microscope configuration for detailed observation, inspection and precision work. The optical system supports practical laboratory and industrial observation.

Key Features

• Zoom: 0.8×–5.0×
• Viewing head: Ergonomic binocular, 0–35°
• Working distance: 78 mm

What Can This Microscope Be Used For?

• Long inspection sessions requiring adjustable viewing posture
• Electronics rework and precision assembly
• Manufacturing quality assurance

Technical Specifications

Compatibility & Ordering

Stand, lighting and camera accessories vary by configuration. Consult Microscope Marketplace to confirm compatible options before ordering.

Manufacturer Resources

UNITRON manufacturer microscope information

Additional Product Details

The UNITRON Z6 Series is a modular system designed to deliver exceptional ergonomic and optical performance. Our most popular parallel light path stereo microscope, the Z6 Series features a 6.3:1 zoom ratio, and is our top choice for medical device manufacturing, industrial inspection, assembly, quality control, OEM integration and research applications.

Users can select either an ergo tilting binocular head with an adjustable viewing angle of 0° – 35° for true fatigue-free viewing, or a binocular head with a 20° angle and extended eyetubes for maximum viewing comfort. All systems can easily add a photo port/beam splitter for attaching a camera to enable image capture or output to a video monitor.

The Z6 is also available with a dual observation attachment, great for instruction!

Specifications

• Ergonomic binocular viewing head, 0-35° tilting
• Widefield 10x/24mm focusing eyepieces
• 0.8x to 5.0x zoom magnification range
• 6:1 Zoom Ratio
• Magnification Range 8x to 50x (with 10x eyepieces)
• Variable Zoom Magnification System with Parallel optical axis (Galilean optical system; Common Main Objective)
• Interpupillary Distance Adjustment 51mm – 75mm
• Click-stops at 1, 2, 3, 4, 5x positions
• 1x Plan Achromat objective (N.A. 0.09); 0.3x, 0.5x, 2.0x optional
• 78mm working distance
• Airtight and anti-mold design
• NOTE: All photos shown with optional stands, illumination and accessories
• Shipping size 17x13x11 inches
• Shipping weight 8lbs.
