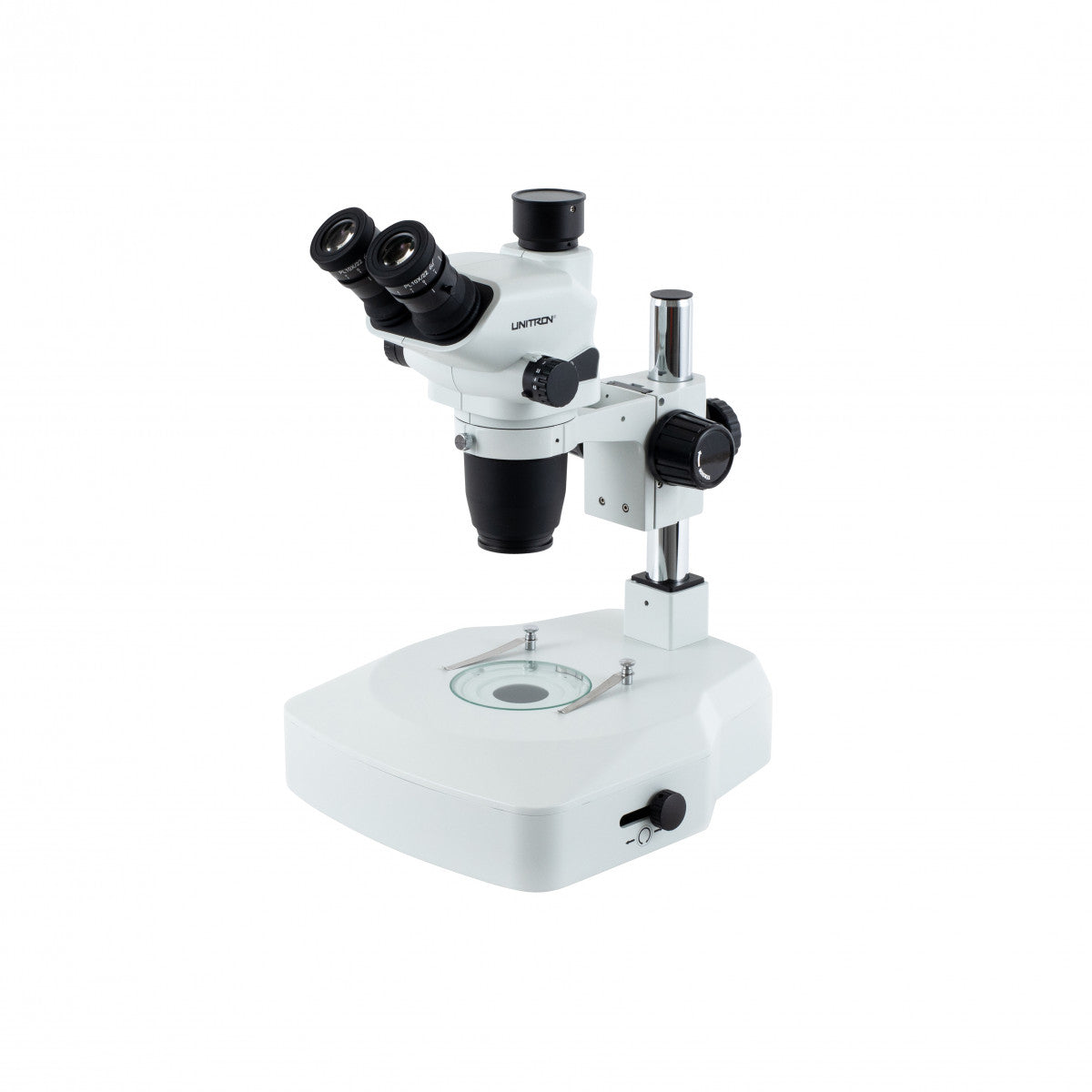

Unitron Z645 Zoom Stereo Microscope on Advanced Diascopic Stand | Embryology

Regular price $3,865.00
Viewing Head
Don't see the option you are looking for? Call 919-775-5596

Follow Us Online!

Call 919-775-5596 with any questions

For an offical Quote Email us at info@mundaymicroscope.com

Equipped with high-quality optics, the Unitron Z645 delivers sharp, distortion-free images across the entire field of view, enabling researchers, technicians, and educators to conduct accurate examinations and investigations. Its ergonomic design ensures comfortable usage over extended periods, minimizing fatigue during prolonged observation sessions. The microscope has a 0.67x to 4.5x zoom range and uses a standard 10X eyepiece.  It is an excellent stereo and inspection microscope

Specifications

  • Available with Binocular viewing head with 45° viewing angle, or Trinocular viewing head with 45° viewing angle
  • 1.0x glass lens shield
  • Trinocular with fixed 50:50 light split, eyepieces:camera port
  • 1.0x glass lens shield
  • Widefield 10x/22mm focusing eyepieces
  • 0.67x – 4.5x zoom magnification range
  • 6.7:1 Zoom ratio
  • Magnification range 6.7x-45x (with 10x eyepieces), with click stops at 0.67, 0.8, 1, 1.2, 1.5, 2, 2.5, 3, 3.5, 4 and 4.5; with adjustable zoom range limits
  • Interpupillary Distance Adjustment 52mm – 76mm
  • Field of view 32.8mm - 4.8mm (1x or no auxiliary lens)
  • 110mm working distance (1x or no auxiliary lens)
  • Diascopic base with 100mm glass plate, microscope focus mount, stage clips (2)
  • 360° rotatable and tiltable mirror; Slides forward and backward for adjustable contrast; Mirror is polished on one side, frosted on other side
  • 24W LED illuminator included with single fiber optic light guide
  • Shipping weight 25lbs
