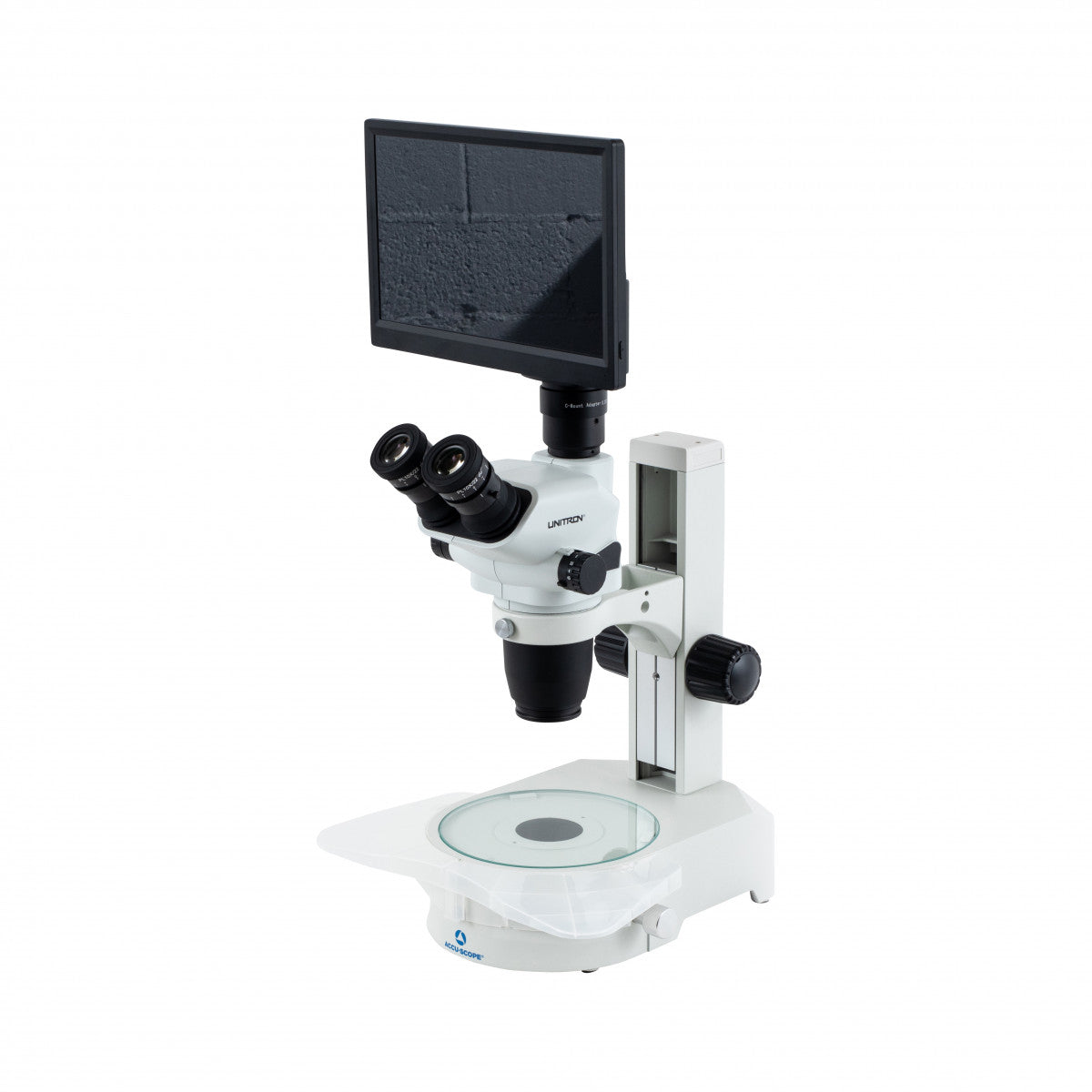

Unitron Z645 Zoom Stereo Microscope on LED Diascopic Stand

Regular price $2,188.00
Viewing Head
Don't see the option you are looking for? Call 919-775-5596

Follow Us Online!

Call 919-775-5596 with any questions

For an offical Quote Email us at info@mundaymicroscope.com

Equipped with high-quality optics, the Unitron Z645 delivers sharp, distortion-free images across the entire field of view, enabling researchers, technicians, and educators to conduct accurate examinations and investigations. Its ergonomic design ensures comfortable usage over extended periods, minimizing fatigue during prolonged observation sessions. The microscope has a 0.67x to 4.5x zoom range and uses a standard 10X eyepiece.  It is an excellent stereo and inspection microscope

Specifications

  • Available with Binocular viewing head with 45° viewing angle, or Trinocular viewing head with 45° viewing angle
  • 1.0x glass lens shield
  • Trinocular with fixed 50:50 light split, eyepieces:camera port
  • 1.0x glass lens shield
  • Widefield 10x/22mm focusing eyepieces
  • 0.67x – 4.5x zoom magnification range
  • 6.7:1 Zoom ratio
  • Magnification range 6.7x-45x (with 10x eyepieces), with click stops at 0.67, 0.8, 1, 1.2, 1.5, 2, 2.5, 3, 3.5, 4 and 4.5; with adjustable zoom range limits
  • Interpupillary Distance Adjustment 52mm – 76mm
  • Field of view 32.8mm - 4.8mm (1x or no auxiliary lens)
  • 110mm working distance (1x or no auxiliary lens)
  • Track stand with focus and adjustable focus tension; focus travel 100mm
  • 360° rotating mirror in base; polished mirror on one side, silver metallic one side
  • Large arm rests for comfort during specimen manipulation
  • Built-in 3W LED illumination with external intensity control won't warm your samples
  • Large 180mm x 6mm glass plate
  • Power: INPUT: AC90-240V 50/60HZ; OUTPUT: DC3.3V MAX750mA
  • Stand dimensions (LWH): 360mm x 310mm x 450mm
  • Shipping weight 18lbs
