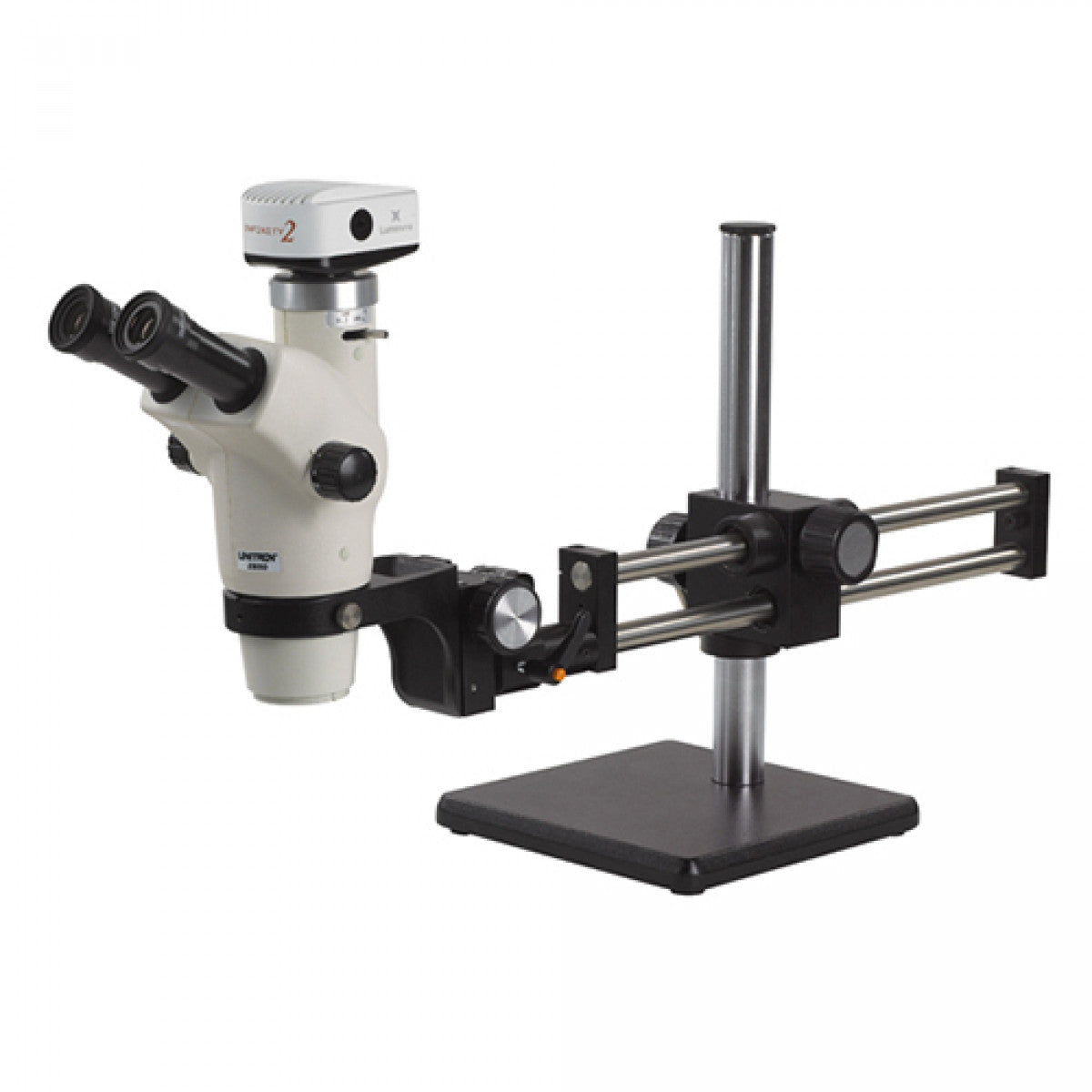

Unitron Z650HR Trinocular High Resolution Zoom Stereo Microscope On Ball Bearing Boom Stand

Regular price $2,652.00
Don't see the option you are looking for? Call 919-775-5596

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

Have questions or need Faster Shipping? Call 919-775-5596

Trinocular High Resolution Zoom Stereo Microscope

On Ball Bearing Boom Stand
Trinocular viewing head, 0.6x to 5.0x zoom range, inclined at 30°,115 mm working distance,
interpupillary distance adj, 52-75mm, glass lens shield
WF 10x eyepieces with built-in diopter adjustment (paired) 23mm field of view, 0/100 light split,
with 0.55x built-in c-mount lens, or remove to become a 1x c-mount
Bonder arm focusing mount, ball bearing boom stand
Dust cover and instruction manual

Specifications

  • Trinocular viewing head inclined at 30°
  • 0/100 light split
  • with built-in 0.55x c-mount camera adapter
  • Widefield 10x/23mm focusing eyepieces with roll down eyeguards
  • 0.6x – 5.0x zoom magnification range
  • 8:1 zoom ratio
  • Magnification range 6x-50x (with 10x eyepieces), with click stops at 1x, 2x, 3x, 4x and 5x
  • Interpupillary Distance Adjustment 55mm – 75mm
  • 115mm working distance
  • Ball bearing boom stand with bonder arm focusing mount
  • Base: 254mm x 254mm (10" x 10")
  • Vertical Post: 394mm
  • Horizontal Post: 585mm
  • Weight: 42lbs
  • Airtight and anti-mold design
  • Shipping weight 51lbs.
