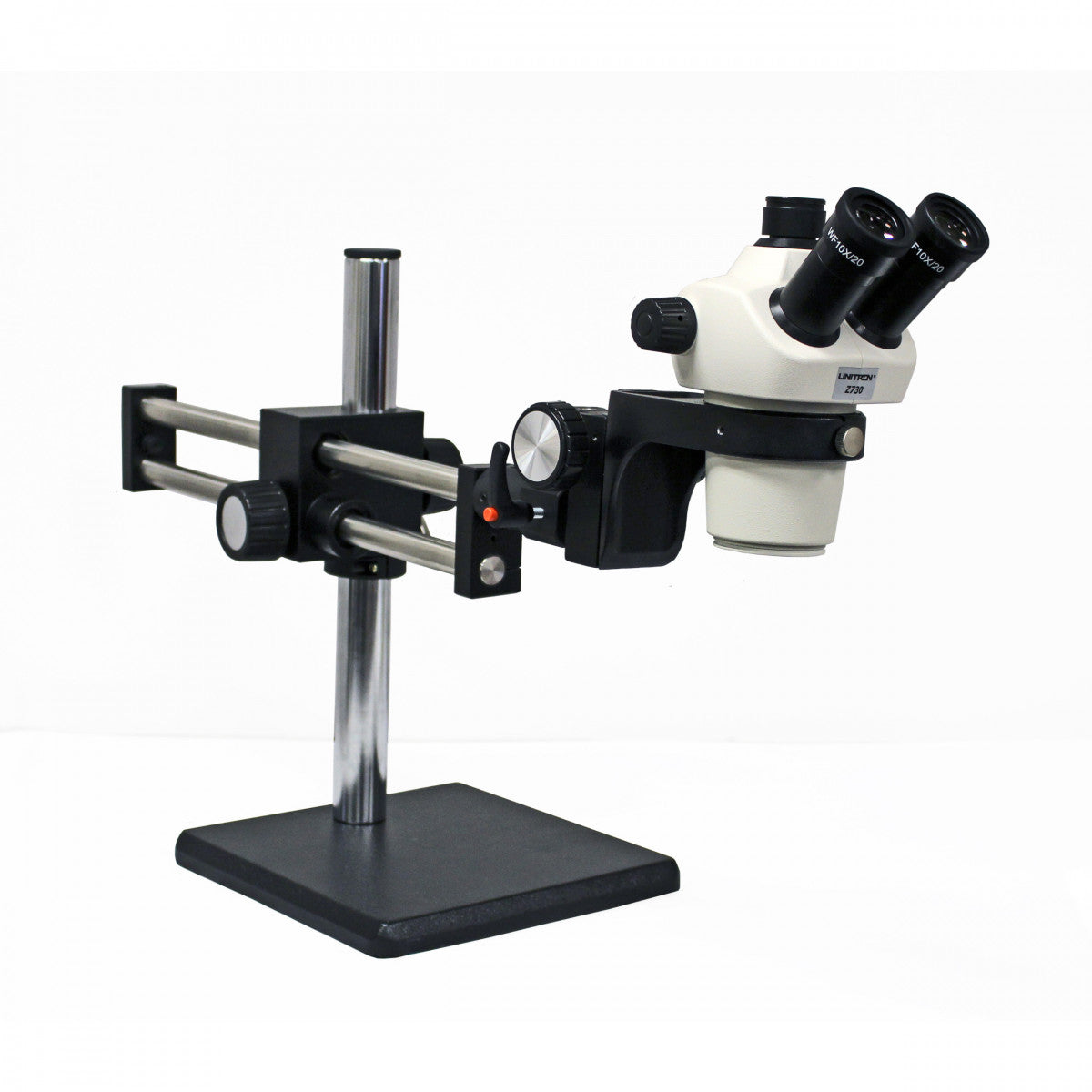

Unitron Z730 Zoom Stereo Microscope on Ball Bearing Boom Stand

Regular price $1,337.00
VIEWING HEAD
Don't see the option you are looking for? Call 919-775-5596

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

Have questions or need Faster Shipping? Call 919-775-5596

The Unitron Z730 Series with a 4.3:1 zoom ratio is an ideal choice for industrial inspection, assembly, quality control, OEM integration, research and education applications.

Featuring outstanding optics and a large field of view with a high depth of focus, the Z730 reduces sample handling times allowing for faster inspections and a more efficient work process.

The Z730 Series is available with a binocular (45° or 60° degree viewing angle), or with a trinocular (45° viewing angle) viewing head.

Specifications

  • Available with Binocular viewing body with eyetubes inclined at 45°, Binocular viewing body with eyetubes inclined at 60°, or Trinocular viewing body with eyetubes inclined at 45°
  • Widefield 10x/20mm focusing eyepieces
  • 0.7x to 3.0x zoom magnification range
  • 4.3:1 Zoom ratio
  • Magnification range 7x to 30x (with 10x eyepieces)
  • Interpupillary Distance Adjustment 52mm – 75mm
  • 97mm working distance
  • Ball bearing boom stand with bonder arm focusing mount, 254mm x 254mm (10" x 10") base, 394mm vertical post, 585mm horizontal post, 42lbs weight
  • Airtight and anti-mold design
  • Note: Excelis™ HDS and Excelis HDS Lite cameras are not recommended for use with the Z730 series microscopes
  • Shipping weight 50lbs.
