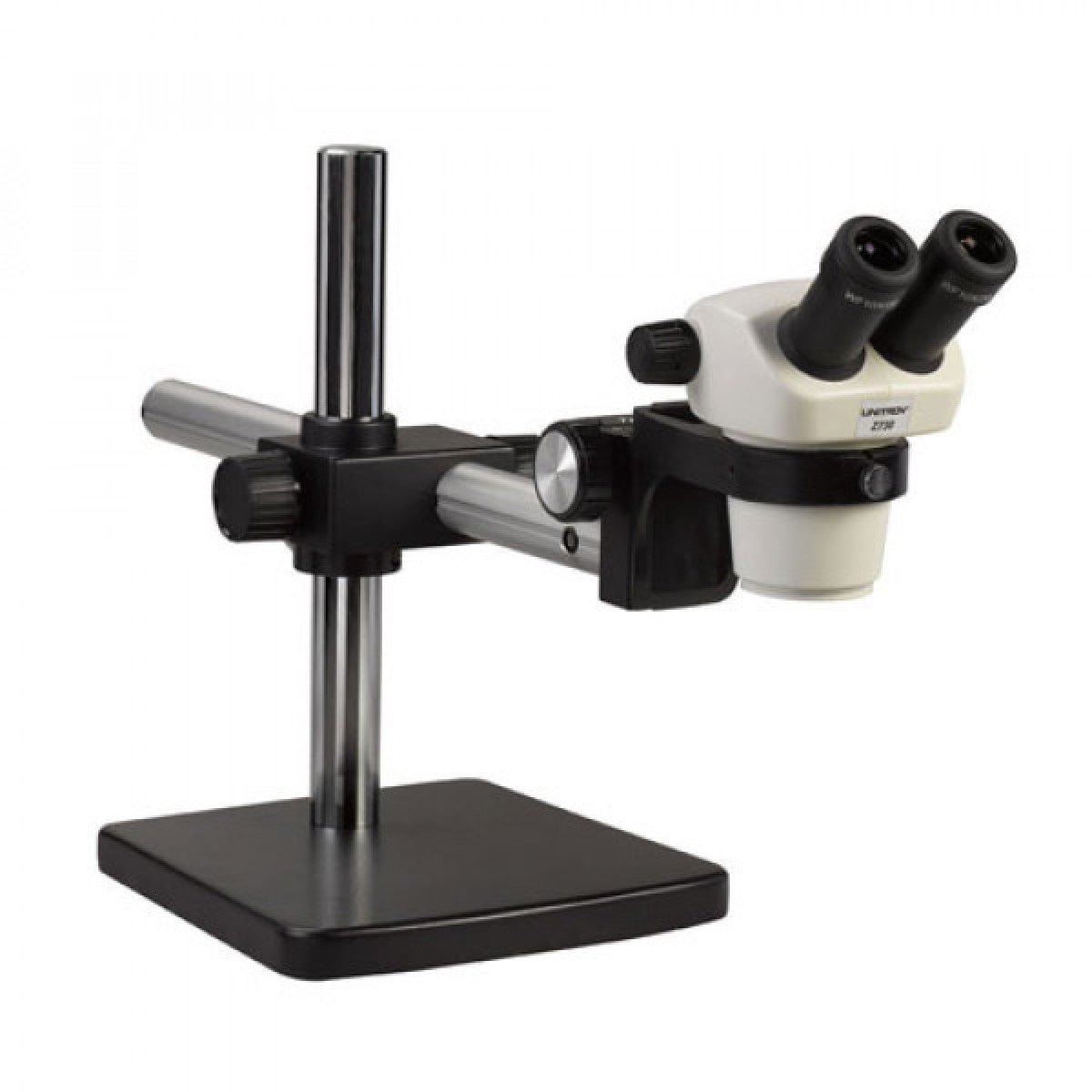

Unitron Z730 Zoom Stereo Microscope on Boom Stand
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
Product Overview
The UNITRON Z730 zoom stereo microscope is designed for efficient industrial inspection, research, education and precision assembly. This version includes a boom stand with bonder arm with horizontal boom positioning, making it suitable for electronics and large workpieces.
Key Features
- 4.3:1 zoom ratio with 0.7×–3.0× zoom optics
- 7×–30× magnification with 10× eyepieces
- 97 mm working distance
- bonder arm with horizontal boom positioning
What Can This Microscope Be Used For?
- Industrial quality control and visual inspection
- Electronics and precision component assembly
- Research and educational specimen examination
Technical Specifications
| Zoom range | 0.7×–3.0× |
|---|---|
| Zoom ratio | 4.3:1 |
| Magnification with 10× eyepieces | 7×–30× |
| Working distance | 97 mm |
| Stand | Boom stand |
| Stand feature | bonder arm with horizontal boom positioning |
Compatibility & Ordering
Confirm the selected viewing head, lighting and camera accessories before ordering. The manufacturer's listing notes that Excelis HDS and HDS Lite cameras are not recommended for Z730 microscopes.
Manufacturer Resources
UNITRON official microscope resources
Additional Product Details
The Unitron Z730 Series with a 4.3:1 zoom ratio is an ideal choice for industrial inspection, assembly, quality control, OEM integration, research and education applications.
Featuring outstanding optics and a large field of view with a high depth of focus, the Z730 reduces sample handling times allowing for faster inspections and a more efficient work process.
The Z730 Series is available with a binocular (45° or 60° degree viewing angle), or with a trinocular (45° viewing angle) viewing head.
Specifications
- Available with Binocular viewing body with eyetubes inclined at 45°, Binocular viewing body with eyetubes inclined at 60°, or Trinocular viewing body with eyetubes inclined at 45°
- Widefield 10x/20mm focusing eyepieces
- 0.7x to 3.0x zoom magnification range
- 4.3:1 Zoom ratio
- Magnification range 7x to 30x (with 10x eyepieces)
- Interpupillary Distance Adjustment 52mm – 75mm
- 97mm working distance
- Boom Stand with Delrin® insert on focus block for smooth, precise movement
- Bonder Arm (E-Arm)
- Base Dimensions: 254mm x 254mm (10" x 10")
- Vertical Post Dimensions: 365mm
- Horizontal Post Dimensions: 518mm
- Weight: 37lbs
- Airtight and anti-mold design
- Note: Excelis™ HDS and Excelis HDS Lite cameras are not recommended for use with the Z730 series microscopes
- Shipping weight 50lbs.
