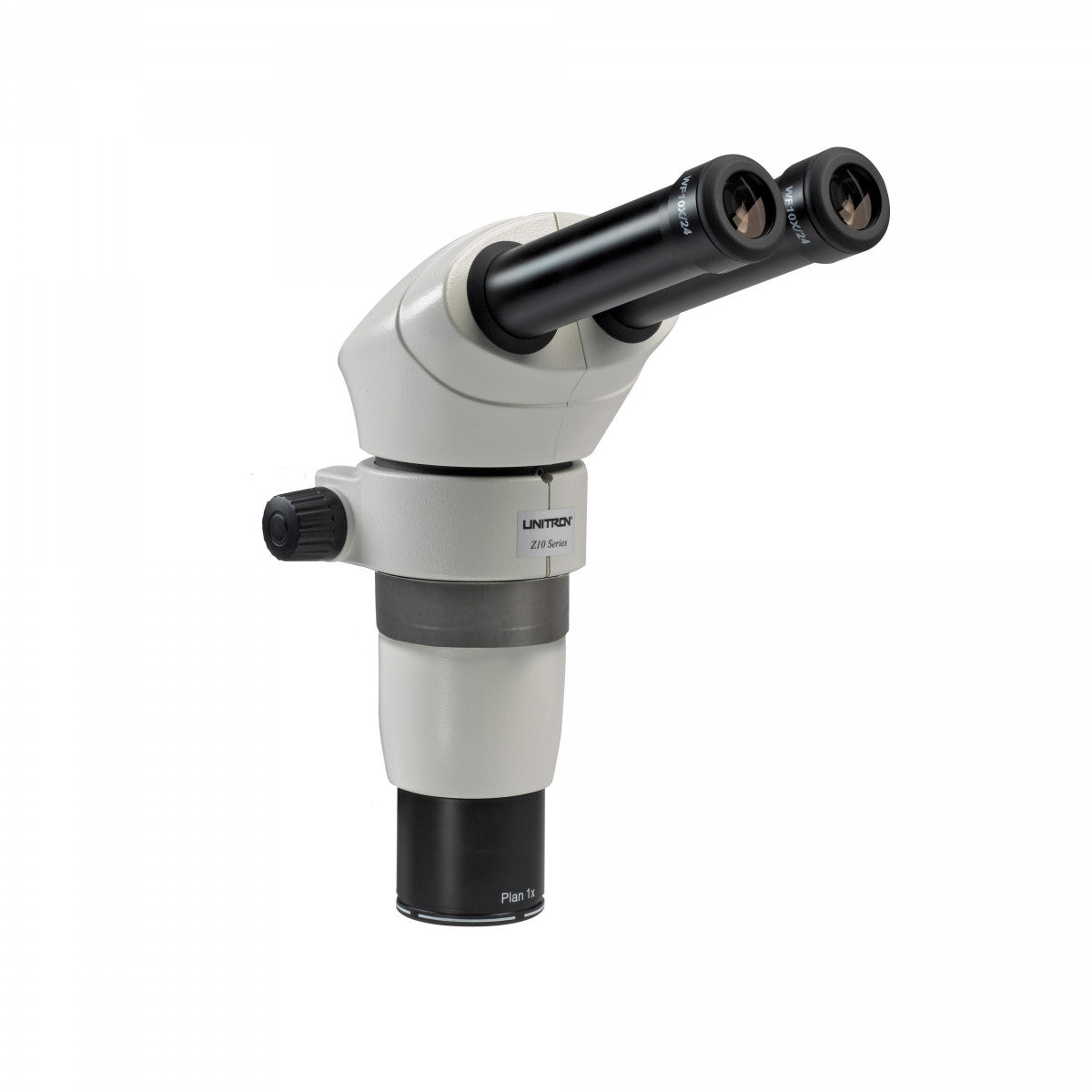

Unitron Z8 Binocular Zoom Stereo Microscope

Regular price $3,052.00
Regular price Sale $3,890.80 Sale price $3,052.00
CONTACT US: Need help choosing the right microscope, laboratory or medical equipment? Call 919-775-5596 or email info@mundaymicroscope.com

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

International Buyers - Please Request Quote with ship to address

Have questions or need Faster Shipping? Call 919-775-5596

Tax exempt? Please email your tax exemption certificate to info@mundaymicroscope.com.

Product Overview

Unitron Z8 Binocular Zoom Stereo Microscope is a UNITRON stereo microscope configuration designed for detailed observation and inspection. The modular common-main-objective optical system supports high-resolution stereo observation for inspection, assembly and research. This listing's stand and viewing-head configuration are described in the technical specifications below.

Key Features

  • Zoom: 0.8×–6.4×
  • Magnification with 10× eyepieces: 8×–64×
  • Working distance: 78 mm
  • Viewing head: 20° binocular
  • Objective: 1× Plan Achromat

What Can This Microscope Be Used For?

  • Electronics inspection and rework
  • Manufacturing quality control
  • Precision component assembly
  • Research specimen examination

Technical Specifications

Zoom 0.8×–6.4×
Magnification with 10× eyepieces 8×–64×
Working distance 78 mm
Viewing head 20° binocular
Objective 1× Plan Achromat

Compatibility & Ordering

Check the selected head, stand, illumination and camera-adapter options before ordering. Microscope Marketplace can assist with choosing the appropriate configuration and accessories.

Manufacturer Resources

UNITRON official microscope information

Additional Product Details

The UNITRON Z8 Series is a modular system designed to deliver exceptional ergonomic and optical performance. With an 8:1 optical zoom range, the Z8 is highly versatile and second in popularity to the Z6. The Z8 is the go-to stereo microscope in manufacturing, inspection, quality control, assembly/rework and research environments.

Users can select either an ergo tilting binocular head with an adjustable viewing angle of 0° – 35° for true fatigue-free viewing, or a binocular head with a 20° angle and extended eyetubes for maximum viewing comfort. All systems can easily add a photo port/beam splitter for attaching a camera to enable image capture or output to a video monitor.

Choose from a variety of stages and accessories to customize the Z8 for your exact need.

Specifications

  • Binocular viewing head, 20° inclined
  • Widefield 10x/24mm focusing eyepieces
  • 0.8x to 6.4x zoom magnification range
  • 8:1 Zoom Ratio
  • Magnification Range 8x to 64x (with 10x eyepieces)
  • Variable Zoom Magnification System with Parallel optical axis (Galilean optical system; Common Main Objective)
  • Interpupillary Distance Adjustment 51mm – 75mm
  • Click-stops at 1, 2, 3, 4, 5 and 6x positions
  • 1x Plan Achromat objective (N.A. 0.09); 0.3x, 0.5x, 2.0x optional
  • 78mm working distance
  • Airtight and anti-mold design
  • NOTE: All photos shown with optional stands, illumination and accessories
  • Shipping size 17x13x11 inches
  • Shipping weight 6lbs.
