Product Overview

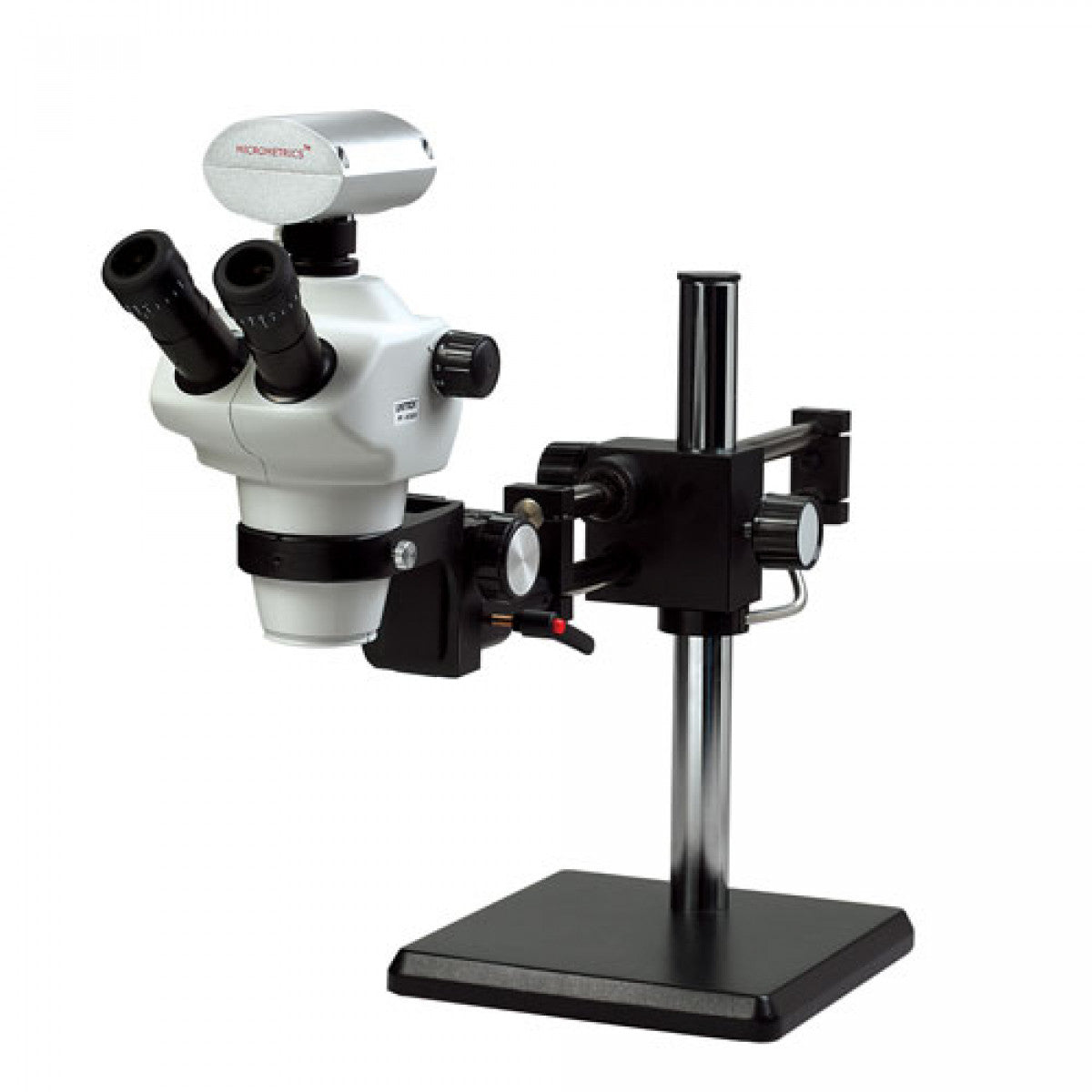

The UNITRON Z850 zoom stereo microscope provides detailed three-dimensional observation for inspection, quality control and precision assembly. This configuration uses a ball-bearing boom stand.

Key Features

• Zoom: 0.8×–5.0×
• Magnification with 10× eyepieces: 8×–50×
• Working distance: 115 mm
• Stand: Ball-bearing boom stand

What Can This Microscope Be Used For?

• Electronics and small-component inspection
• Industrial quality control and precision assembly
• Examining workpieces that benefit from flexible microscope positioning

Technical Specifications

Compatibility & Ordering

Confirm the selected optical head and camera accessories before ordering. Excelis HDS and HDS Lite cameras are not recommended for the Z850 series.

Manufacturer Resources

UNITRON official microscope information

Additional Product Details

The Unitron Z850 Series with a 6.3:1 zoom ratio is an ideal choice for industrial inspection, assembly, quality control, OEM integration, research and education applications requiring a higher magnification range.

The Z850 Series is a versatile, high performance, ergonomically designed zoom stereo microscope ruggedly built to withstand years of heavy usage.

Specifications

• Available with Binocular viewing head with 45° viewing angle, or Trinocular viewing head with 45° viewing angle
• Fixed glass lens shield
• Widefield 10x/22mm focusing eyepieces
• 0.8x – 5.0x zoom magnification range
• 6.3:1 Zoom ratio
• Magnification range 8x-50x (with 10x eyepieces), with click stops at 1x, 2x, 3x, 4x and 5x
• Interpupillary Distance Adjustment 52mm – 75mm
• Field of view 27.5mm - 4.4mm
• 115mm working distance
• Ball bearing boom stand with bonder arm focusing mount
• Base: 254mm x 254mm (10" x 10")
• Vertical Post: 394mm
• Horizontal Post: 585mm
• Weight: 42lbs
• Airtight and anti-mold design
• Note: Excelis™ HDS and Excelis HDS Lite cameras are not recommended for use with the Z850 series microscopes
• Shipping weight 50lbs.
