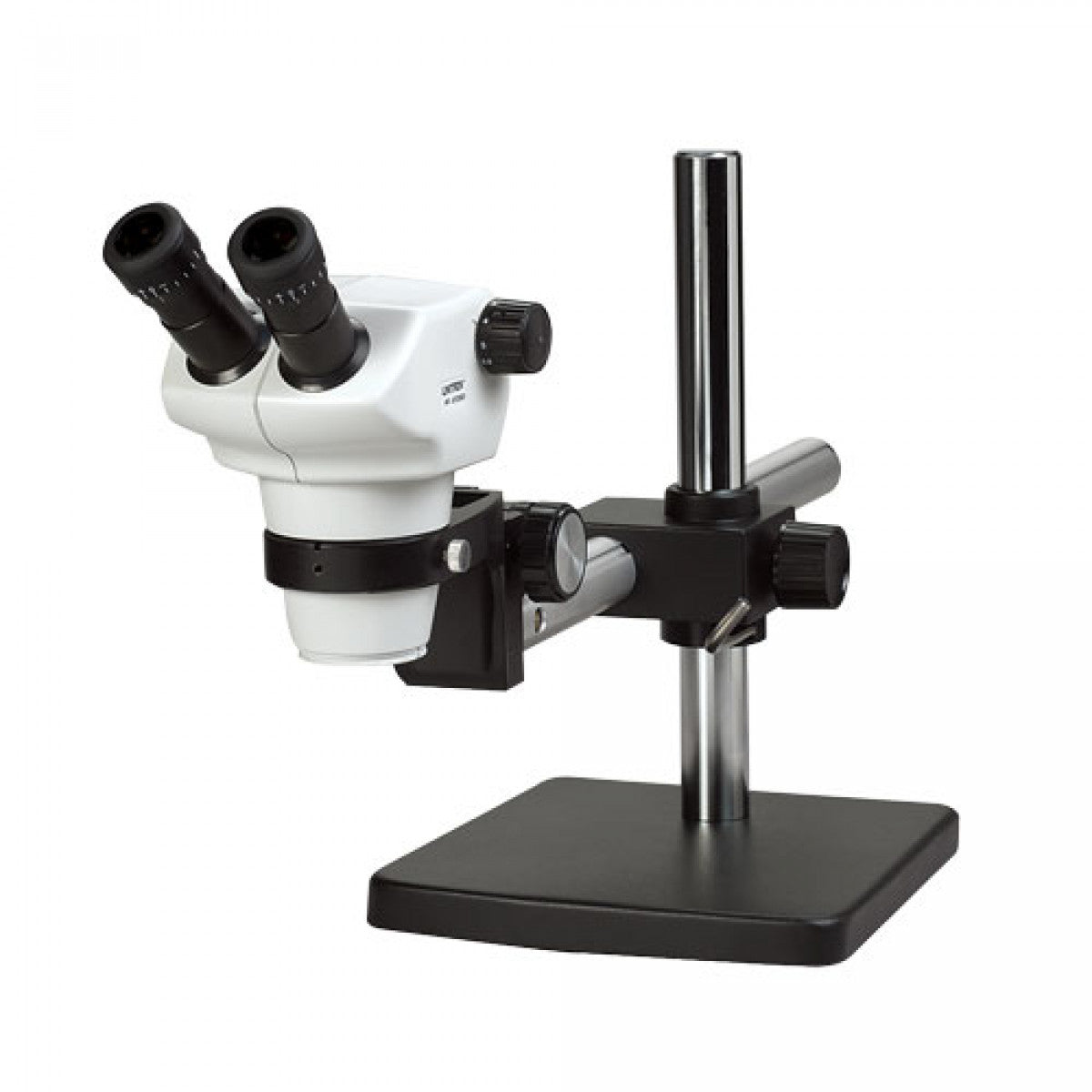

Unitron Z850 Zoom Stereo Microscope on Boom Stand

Regular price $1,456.00
VIEWING HEAD
Don't see the option you are looking for? Call 919-775-5596

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

Have questions or need Faster Shipping? Call 919-775-5596

The Unitron Z850 Series with a 6.3:1 zoom ratio is an ideal choice for industrial inspection, assembly, quality control, OEM integration, research and education applications requiring a higher magnification range.

The Z850 Series is a versatile, high performance, ergonomically designed zoom stereo microscope ruggedly built to withstand years of heavy usage.

Specifications

  • Available with Binocular viewing head with 45° viewing angle, or Trinocular viewing head with 45° viewing angle
  • Fixed glass lens shield
  • Widefield 10x/22mm focusing eyepiece
  • 0.8x – 5.0x zoom magnification range
  • 6.3:1 Zoom ratio
  • Magnification range 8x-50x (with 10x eyepieces), with click stops at 1x, 2x, 3x, 4x and 5x
  • Interpupillary Distance Adjustment 52mm – 75mm
  • Field of view 27.5mm - 4.4mm
  • 115mm working distance
  • Boom Stand with Delrin® insert on focus block for smooth, precise movement; bonder arm (E-Arm)
  • Base Dimensions: 254mm x 254mm (10" x 10")
  • Vertical Post Dimensions: 365mm
  • Horizontal Post Dimensions: 518mm
  • Weight: 37lbs
  • Airtight and anti-mold design
  • Note: Excelis™ HDS and Excelis HDS Lite cameras are not recommended for use with the Z850 series microscopes
  • Shipping weight 50lbs.
