ZoomHD Microscope with Monitor and Gliding Boom Stand
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
Product Overview
The UNITRON ZoomHD digital inspection microscope with gliding boom stand and integrated 12-inch HD monitor combines live full-HD imaging, adjustable optical zoom and integrated LED illumination for efficient inspection without a computer.
Key Features
- 2.0 MP CMOS camera with wide dynamic range
- Live 1080p video at 60 fps
- 0.7×–5.0× zoom with click stops
- Integrated 56-LED adjustable ring light
- Wireless mouse control and USB image capture
- Integrated 12-inch HD monitor
What Can This Microscope Be Used For?
- Electronics and circuit-board inspection
- Manufacturing quality control and component inspection
- Inspection photography, documentation and training
Technical Specifications
| Camera | 2.0 MP CMOS with WDR |
|---|---|
| Video output | 1080p, 60 fps HDMI |
| Zoom | 0.7×–5.0× with click stops |
| Standard objective | 1×, 110 mm working distance |
| Optional objective | 0.5×, 170 mm working distance |
| Illumination | Adjustable 56-LED ring light |
| Ports | HDMI and 2 × USB 2.0 |
| Stand | gliding boom stand with 32 mm drop post and focusing mount |
| Monitor | 12-inch integrated HD monitor included |
| Image storage | User-supplied USB flash drive, maximum 128 GB |
| Dimensions | 686 × 283 × 622 mm |
Compatibility & Ordering
Includes gliding boom stand and integrated 12-inch monitor. A user-supplied USB flash drive is required for image capture. Verify working clearance and stand dimensions before ordering.
Manufacturer Resources
UNITRON microscope manufacturer information
Additional Product Details
MIGHTY DIGITAL INSPECTION IN A COMPACT DESIGN
Live HD Images for Rapid Inspection
The 2.0 megapixel CMOS camera (1080p, 60fps) of the ZoomHD delivers crisp, sharp images for lightning-fast live viewing or captured photos. The ZoomHD connects to any HD monitor with its included HDMI cable. Wide Dynamic Range (WDR) enables visualization of more detail in the sample.
Wide 7:1 Zoom Range
The ZoomHD offers a 0.7x – 5.0x magnification range with click stops at 1x, 1.5x, 2x, 3x, 4x and 5x. Magnification can be easily adjusted on the front of the microscope.
Integrated LED Ring Light
A ring light is integrated into the ZoomHD microscope. 56 bright LEDs
provide brilliant, even illumination across the field of view. Use the adjustable intensity to provide the right amount of illumination for your sample.
On-screen Camera Control With Optional Monitor — No PC required!
The ZoomHD features built-in camera that can be readily controlled using just the included wireless mouse. Save images directly to a user-supplied USB flash drive. No need for a PC!
Specifications
- Zoom Body: Zoom lens 0.7x—5x with click stops
- Objectives: 1x objective (included; CAT # 147-15-01), W.D. 110mm. 0.5x objective (optional; CAT # 147-15-05), W.D. 170mm.
- Illumination: Integrated LED ring light with 56 bulbs, adjustable intensity, color temperature 5000-5500K
- Camera: Built-in 2.0 MP CMOS camera with WDR image

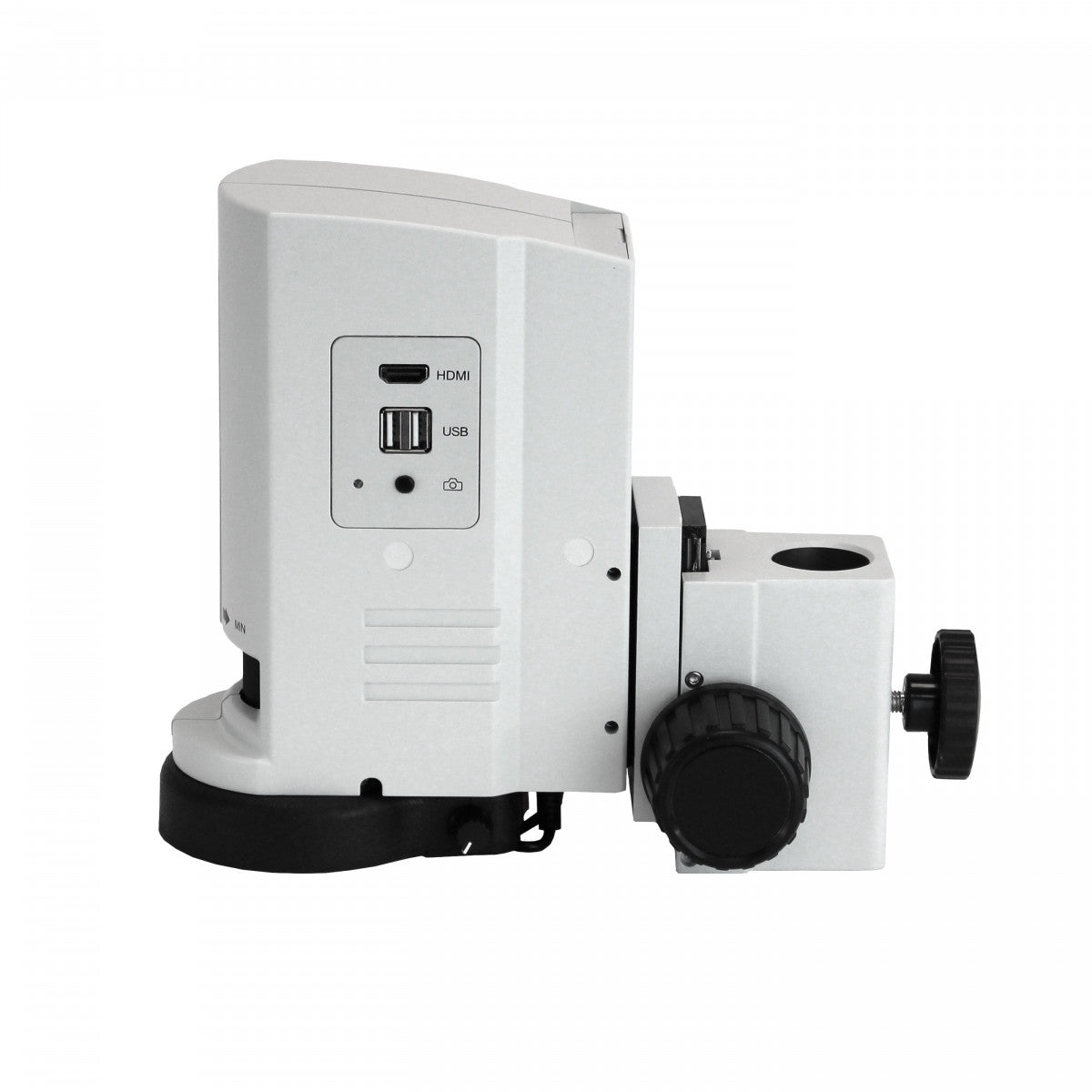

- Input / Output Modes: HDMI Output (1080p, 60fps) ● 2 x USB 2.0
- Included: HDMI cable for connecting to the integrated HD monitor; wireless mouse
- Included: 12” integrated HD monitor
- Storage: user-supplied USB flash drive (required for image capture). 128GB maximum.
- Stand: Gliding Boom Stand with ø32mm drop post, focusing mount
- Monitor Format: HD ready - monitor not included
- Power Supply: 100/240v; 50/60Hz; 12V, 3.3A power consumption
- Dimensions: Stand: 686mm X 283mm X 622mm (LWH) with standard 1.0x objective
